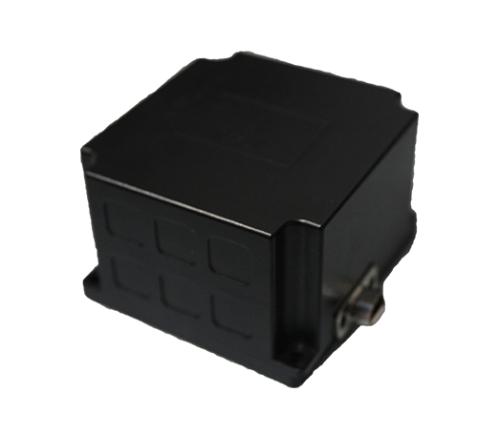

Digital Three-axes Fibre Optic Gyroscope AgileLight-100C
Digital Three-axes Fibre Optic Gyroscope AgileLight-100C
AgileLight-100C Digital Three-axes Fibre Optic Gyroscope AgileLight-100C Product Introduction:

AgileLight-100C is an interferometric digital closed loop three-axes fiber optic gyroscope. AgileLight-100C has the advantages of large working bandwidth, high resolution, small zero drift, high linearity, short starting time, shock resistance, vibrati

Shared:

Technical Specifications

Size(mm): L108×W108×H76

Measuring axis: Three axis

Measuring range(º/s): -450~450

Bias stability(º/h),1σ: ≤1

Bias repeatability(º/h),1σ: ≤1

Random walk coefficient(º/ √hr): ≤0.1

Scale factor nonlinearity(ppm): ≤300

Scale factor asymmetry(ppm): ≤300

Scale factor repeatability(ppm),1σ: ≤300

Frequency bandwidth(Hz): ≥100

Output mode: RS 422

Connector: J30J-9TJL


Product Advantages

Size(mm): L108×W108×H76

Measuring axis: Three axis

Measuring range(º/s): -450~450

Bias stability(º/h),1σ: ≤1

Bias repeatability(º/h),1σ: ≤1

Random walk coefficient(º/ √hr): ≤0.1

Scale factor nonlinearity(ppm): ≤300

Scale factor asymmetry(ppm): ≤300

Scale factor repeatability(ppm),1σ: ≤300

Frequency bandwidth(Hz): ≥100

Output mode: RS 422

Connector: J30J-9TJL
