Gyroscope

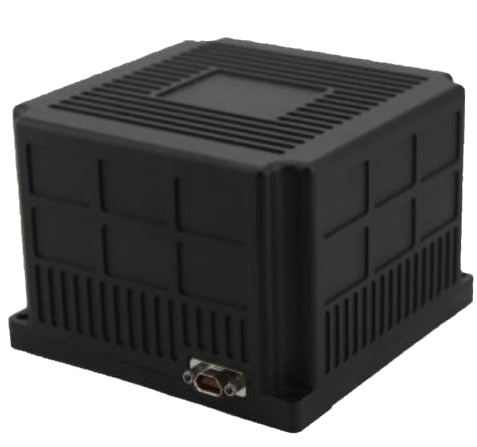

Digital Three-axes Fibre Optic Gyroscope AgileLight-500C
Digital Three-axes Fibre Optic Gyroscope AgileLight-500C
AgileLight-500C Digital Three-axes Fibre Optic Gyroscope AgileLight-500C Product Introduction:

● All fiber optic technology: Long life, small size, high stability, anti-interference angle sensor
●IntelliProcess Technology: Built-in high-performance digital signal processing chip for full digital operation and adaptive filtering technology makes

Shared:

Technical Specifications







Technical Parameter

Physical


Three Axis

Measurement range


±1000°/s

Zero-bias stability (10s, 1σ, Room temperature)


≤0.1°/h

Zero-bias stability (1σ, Room temperature)


≤0.1°/h

Random Walk Factor


≤0.01°/√h

Scale factor non-linearity


60ppm

Scale factor asymmetry


60ppm

Scale factor repeatability


60ppm

Data refresh rate


200~2000Hz

Bit rate


115200~921600bps







Physical

Bandwidth (-3dB)


≥200Hz

Power Input


24V

Maximum Power Consumption


18W

Start-up time


≤1s

Dimension


Φ112×H77.5

Weight


1200g

Communication Interface


RS422

Operating Temperature


-40+65

Storage temperature


-50+80

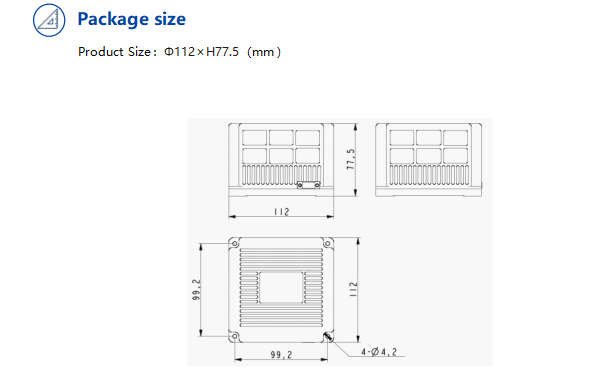

Product Size
