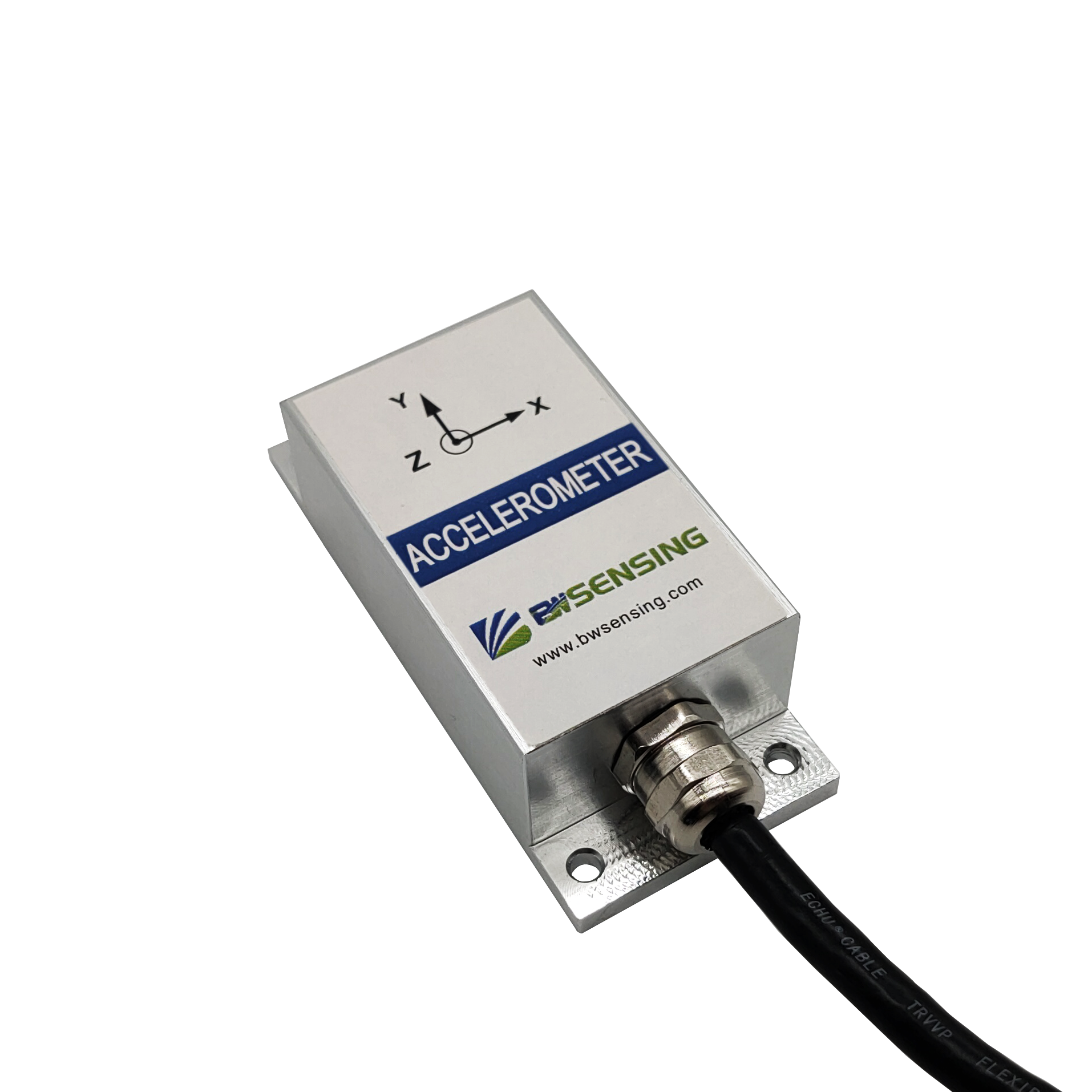

AS400 is a high-sensitivity low-zero drift digital output triaxial accelerometer developed by Bewis Sensing Company. It is suitable for different industrial fields such as vibration monitoring and impact testing.
Shared：

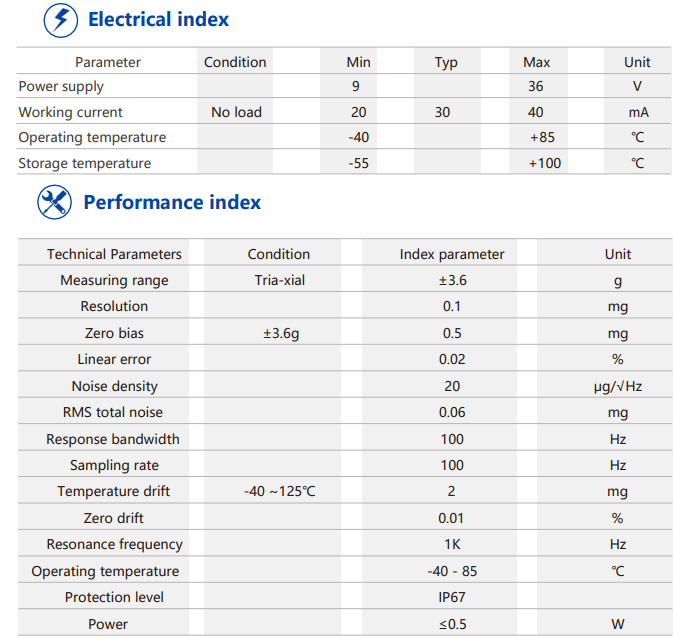

Technical Parameters | Condition | Index parameter | Unit | |||
Measuring range | Tria-xial | ±3.6 | g | |||
Resolution | 0.1 | mg | ||||
Zero bias | ±3.6g | 0.5 | mg | |||
Linear error | 0.02 | % | ||||
Noise density | 20 | μg/√Hz | ||||
RMS total noise | 0.06 | mg | ||||
Response bandwidth | 100 | Hz | ||||
Sampling rate | 100 | Hz | ||||
Temperature drift | -40 ~125℃ | 2 | mg | |||
Zero drift | 0.01 | % | ||||
Resonance frequency | 1K | Hz | ||||
Operating temperature | -40 - 85 | ℃ | ||||
Protection level | IP67 | |||||
Power | ≤0.5 | W |
-
