●All-fiber optics technology: Angular velocity sensor with long life, small size, high stability and anti-interference
●Intelli-Process Technology：Built-in high-performance digital signal processing chip to realize all-digital working mode. Adaptive f
Shared：
Recently, there are many manufacturers counterfeiting BWSENSING. Please pay attention to the labels of the original BWSENSING products to avoid being deceived. You are welcome to report counterfeit products to protect genuine products and intellectual property rights.
Voltage (V) | DC18-32V（customized) |
Power consumption（W） | Instantaneous power consumption 11.76W |
Stable power consumption 7.2W | |
Working temperature(℃) | -40~+60 |
Storage temperature（℃） | -45~+85 |
Axis | three axis | |
Measuring range（˚/s） | ±600 | |
Zero bias stability at constant temperature（˚/h） | ≤0.5 | |
Zero bias repeatability at room temperature（˚/h） | ≤0.5 | |
Random walk coefficient（˚/ √hr） | ≤0.05 | |
Scale factor (LSB/°/s) | 111000±2000 | |
Scale factor nonlinear（ppm） | ≤70 | |
Scale factor asymmetry（ppm） | ≤70 | |
Data refresh rate（Hz） | 500 | |
Baud rate（bps） | 460800 | |
Frequency bandwidth（Hz） | >200 | |
Start-up time（s） | ≤1 | |

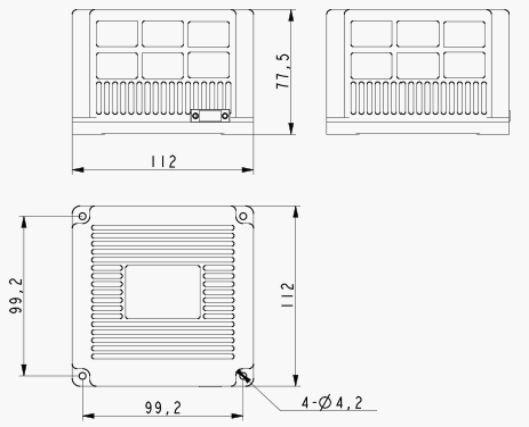

Size (mm) | 112mm×112mm×77.5mm | |
Weight（kg） | ≤1.18 | |
Output method | broadcast(default)/triggered(customized) | |
Output mode | RS 422 |
Mechanical Index
Connector | J30J-15ZKP |
Protection Level | IP62 |
Shell material | aluminum alloy oxidation |
Installation | M4*20 |
Vibration（Hz，g2/Hz) | 20～2000,0.06 |
Shock（g，ms） | 100g,1ms |
-
