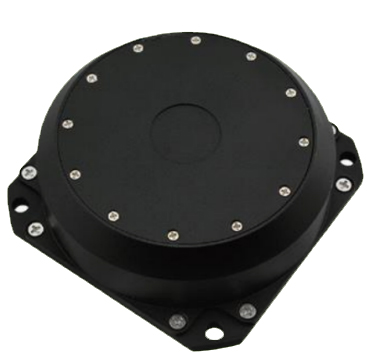

● All fiber optic technology: Long life, small size, high stability, anti-interference angle sensor
●IntelliProcess Technology: Built-in high-performance digital signal processing chip for full digital operation and adaptive filtering technology makes
Physical | Bandwidth (-3dB) | ≥200Hz | |
Power Input | -5V~+5V | ||
Maximum Power Consumption | ≤6W | ||
Start-up time | ≤1s | ||

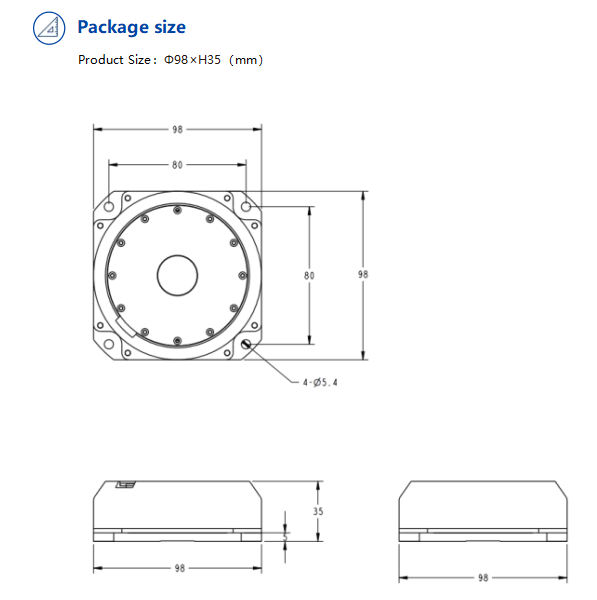

Dimension | Φ98×H35 | ||
Weight | 470g | ||
Communication Interface | RS422 | ||
Operating Temperature | -40~+65℃ | ||
Storage temperature | -50~+80℃ |
Item | Agilelight-500A- (1310) | Agilelight-500A (1550) |
Zero bias stability(°/hr(10,10s)) | ≤0.01 | ≤0.01 |
Zero bias stability(°/hr(10,100s)) | ≤0.005 | ≤0.005 |
stabilization time(s) | <10 | <10 |
zero bias repeatability(°/hr(1o)) | ≤0.01 | ≤0.01 |
full temprature zero bias repeatability(°/hr) | ≤0.1 | ≤0.1 |
random walk coefficient(°/Vh) | ≤0.001 | ≤0.001 |
the scale factor of nonlinearity(ppm) | ≤15 | ≤10 |
the scale factor of repeatability(ppm) | ≤15 | ≤10 |
fulltemprature scale factor repeatability(ppm) | ≤300 | ≤100 |
dynamic range(°/s) | ±500 | ±500 |
magnetic field sensitivity(°/hr/Gs) | ≤0.005 | ≤0.005 |
working temprature(℃) | -40 to+70 | -40 to+70 |
storage temprature(℃) | -50 to+70 | -50 to+70 |
random vibration | 4.2g(20-2000hz) | 4.2g(20-2000hz) |
Application | |
● Motion attitude control ● Damping of high speed train swing ● Monitoring structural deformation ● Automatic goods trolley ● Guidance and navigation ● Oil drilling | ● Servo tracking ● Antenna/Radar/optical platform stabilization ● Inertial north seeking ● Robot balance ● Locking of the aiming system ● Miniature IMU, INS |
