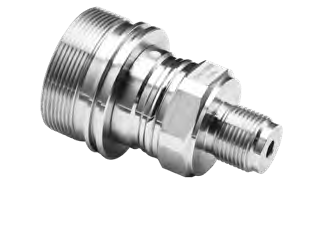

PA Grade Monocrystalline Silicon Pressure Sensor BW-DKS-CP300 Series
PA Grade Monocrystalline Silicon Pressure Sensor BW-DKS-CP300 Series
BW-DKS-CP300 PA Grade Monocrystalline Silicon Pressure Sensor BW-DKS-CP300 Series Product Introduction:

■Monocrystalline silicon sensor chip
■High accuracy, high static pressure characteristics
■mV output or intelligent digital output
■OEM custom threaded connections

Shared:

Technical Specifications


Performance specifications
Measuring principleDouble Beam Suspension / Monocrystalline Silicon Sensors
bridge resistor10kΩ (at 25 ° C)
Power source Voltage3~8V DC,constant voltage supply
Response time10ms
Long-term stability≤ 0.05% FS/year

-High Accuracy

Adopting highly stable monocrystalline silicon sensor chip made of German advanced MEMS technology, embedded with pressure measuring cartridge and signal processing module imported from Germany, to ensure that the transmitted signals have a very high degree of accuracy and consistency.


-Excellent overpressure performance


40kPa standard range chip overpressure up to 6MPa.


-Excellent environmental adaptability


Apply to a variety of harsh environments, working temperature range -40 ~ 85 ℃. Intelligent temperature compensation, to protect the sensor from temperature and overpressure, the site of the integrated measurement error control to a smaller degree.


-Convenient installation


The sensor is equipped with a variety of mounting accessories, suitable for different installation requirements.


-Suitable for a wide range of housings


Standard M27, M45, G55 interfaces are suitable for a wide range of housings, and customised housing connections are also available.

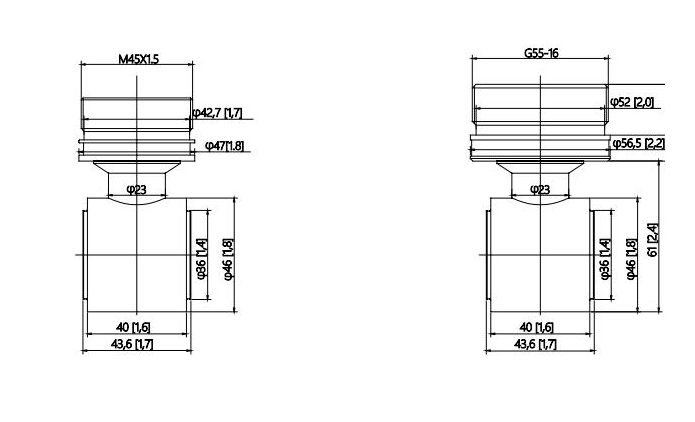

Product Size
