BWSENSING Dual-axis Inclinometer BWN428
BWSENSING Dual-axis Inclinometer BWN428
BWSENSING Dual-axis Inclinometer BWN428
BWSENSING Dual-axis Inclinometer BWN428

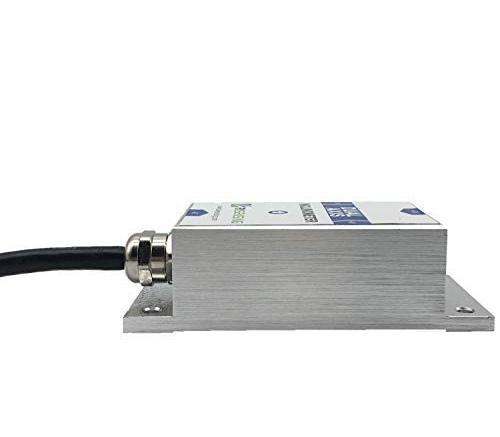

BWN428 BWSENSING Dual-axis Inclinometer BWN428 Product Introduction:

● Highest accuracy:0.02°
● Range:±90°
● Output mode : 4-20mA/0-20mA/0-24mA optional
● IP67 Protection level
● Dual axis inclination measurement
● Resolution:0.001°
● Power supply:12-36V
● Dimension:L90*W40.5*H26(mm)

Shared:

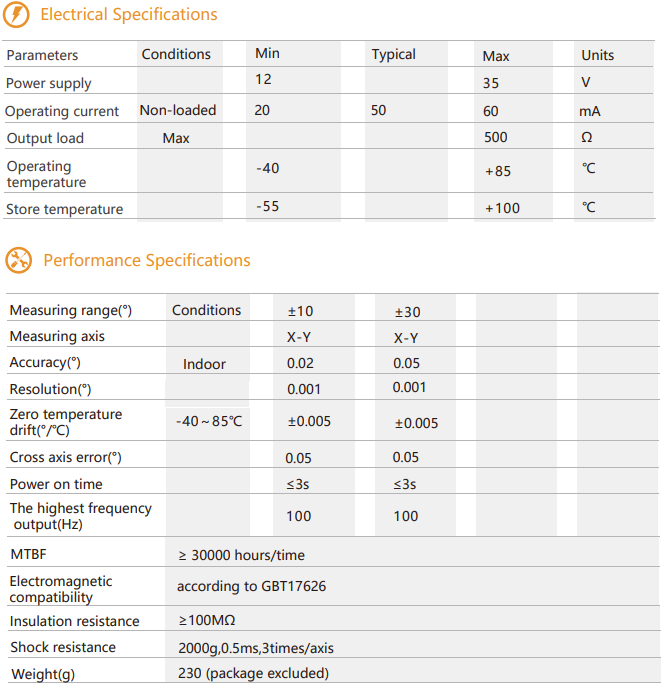

Technical Specifications

Parameter

Condition


Minimum


Typical


Maximum

Power voltage(V)



12




36

Working Current (mA)

No load


20


50


60

Output load (Ω)

Max






500

Operating Temperature (℃)



-40


25


85

Storage Temperature (℃)



-55


25


100

Measurement Range (°)

Condition

±90

Measurement axis

X-Y

Accuracy (°)

Highest

0.02

Resolution (°)

Completely still

0.001

Zero bias (°/℃)

-40~85℃

±0.01

Cross axis error(°)

0.02

Output frequency (Hz)

100

Current output at zero(mA)

10(0-20);12(4-20);12(0-24)

Full-scale output current range (mA)

4-20  (0-20optional)  (0-24 optional)

Mean time between failures MTBF

≥90000 h

Electromagnetic compatibility

According to GBT17626

Insulation resistance

≥100 MΩ

Impact resistance

2000g,0.5ms,3 times/axis

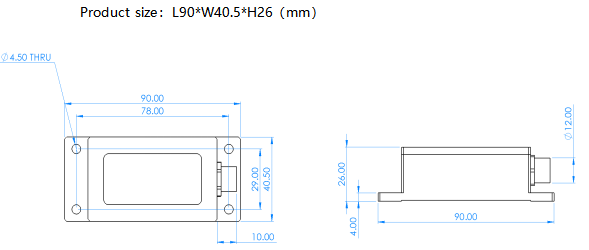

Product Size
