Azimuth Accuracy(deg)

≤0.01

Attitude Angle Accuracy(deg)

≤0.005

Velocity Accuracy(m/s)

≤0.03/RTK 0.01

Position Accuracy(m)

≤2m/RTK 2cm

GPS Invalid

Azimuth HoldingAccuracy(deg)

≤0.01，1h

Attitude Angle Holding   Accuracy(deg)

≤0.005， 1h

Position accuracy(km)

≤1.5，1h

≤0.04，5mi

System Measurement Range

Azimuth Measurement   Range(deg)

±180

Attitude Measurement   Range(deg)

±90

Environmental parameters

Operating Temperature(℃)

-45～+70

Storage temperature (℃)

-55～+80

Vibration (Hz, g2/Hz)

20～500,0.06

Shock (g, ms)

30,11

Electrical Parameters

Input Voltage (Vdc)

+18~+36

Power (W)

20

Data Output Format

RS-422/RS-232

Data Refresh Rate (Hz)

100

Physical parameters

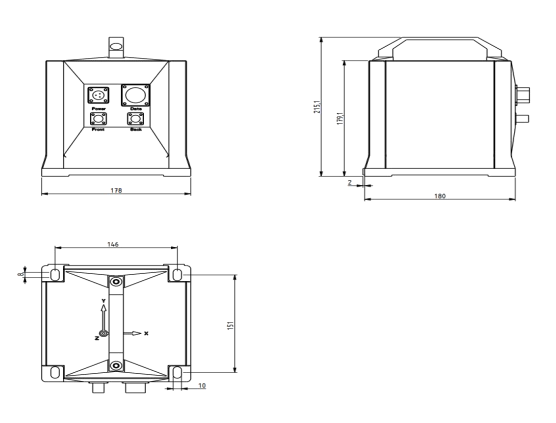

Dimension (mm)

178×180×179.1(handle not   included)

Weight (kg)

6

Connector

XCE12F3Z1D1；XCE24F26Z1D1
