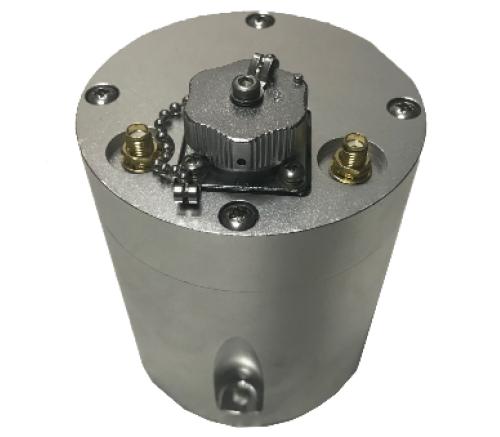

High Precision MEMS Integrated Navigation System GI530
High Precision MEMS Integrated Navigation System GI530
GI530 High Precision MEMS Integrated Navigation System GI530 Product Introduction:

● Antenna stabilization platform,drone flight control

● Navigation and control of AGV

● Attitude measurement and orientation referenc

Shared:

Technical Specifications



Azimuth accuracy

(2m base line)


0.1 deg


Satellite signal loss


0.15 deg /5min

1.5 deg /1h


Roll attitude accuracy


≤0.8 deg


Pitch attitude accuracy


≤0.8 deg



Combined external GPS

Speed accuracy


0.1m/s


Single point positioning


DGPS 0.5m /RTK 2cm


Orientation accuracy


0.1deg2m base line





Measuring range

Azimuth


±180 deg


Roll angle


±90 deg


Pitch angle


±90 deg


Angular velocity


±300 deg/s


Acceleration


±4 g



Interface characteristics

power supply


+9~+36 Vdc, ≤8 W @ 24Vdc


Electrical Interface


RS422


Data update rate


100 Hz @ 115,200 baud rate

Use environment

Operating temperature


-40°C ~ +60°C


storage temperature


-55°C ~ +85°C



Physical characteristics

Dimension


Φ89mm× 118 mm(Designable)


Weight


≤810 g


Connector


Y11P-1210ZK10

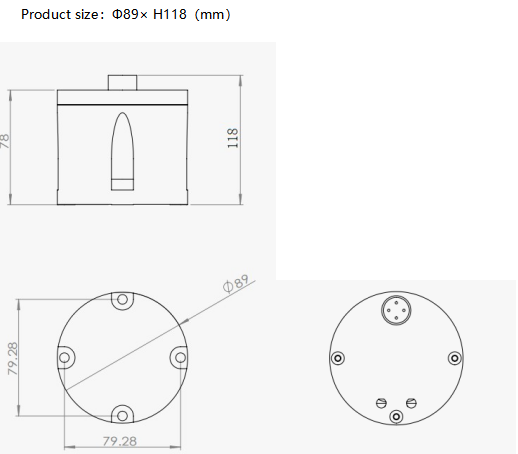

Product Size
