● Long-range Flight Guidance, Antenna System Stability
● Attitude/Azimuth Reference System, Multi-beam Attitude Sensing
● Railway Track Inspection Vehicles, Drones, Unmanned Navigation and Control
● Space Stabilization Platform, Mine Tunneling Machi
Shared：
External GPS effective 4m baseline | North Seeking Accuracy(deg) | ≤2.5*Secant Latitude | |
Azimuth Accuracy(deg) | ≤0.05 | ||
Attitude angle Accuracy(deg) | ≤0.05 | ||
Speed Accuracy(m/s) | ≤0.03 | ||
Position Accuracy(m) | ≤2m/RTK 2cm | ||
GPS outages | Azimuth Keeping Accuracy(deg) | ≤0.5，1h | |
Attitude angle maintaining accuracy(deg) | ≤0.03， 1h | ||
Position accuracy(km) | ≤15，0.5h ≤0.08，5min | ||
System measurement range | Azimuth measurement range(deg) | ±180 | |
Attitude measurement range(deg) | ±90 | ||
Gyros | Measurement range（ deg/s） | ±1000 | |
bias stability（º/h） | 0.5 | ||
Bias repeatability（º/h） | 0.5 | ||
Random walk coefficient（º/√h） | ≤0.05 | ||
Scale factor Non-linearity （ppm） | ≤150 | ||
Scale factor asymmetry（ppm） | ≤150 | ||
Scale factor repeatability（ppm） | ≤150 | ||
Accelerometer | Measurement range（g） | ±10 | |
Offset stability（mg） | 0.1 | ||
Bias repeatability（mg） | 0.1 | ||
Scale factor repeatability（ppm） | ≤300 | ||
Environmental parameters | Temperature in use（℃） | -40～+65 | |
Temperature in store（℃） | -45～+70 | ||
Vibration（Hz, g2/Hz） | 20～2000,0.06 | ||
Shock（g, ms） | 30,11 | ||
Electrical parameters | Input voltage（Vdc） | +9~+36 | |
Power（W） | 15 | ||
Data output format | RS-422 | ||
Data refresh rate (Hz) | 100 | ||

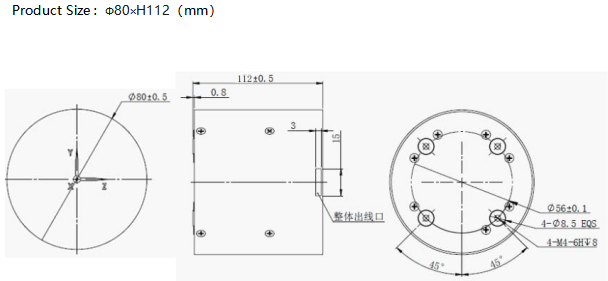

Mechanical | Size（mm） | Ф80×112 | |
Weight（kg） | 0.95 | ||
Connector | J30J-15ZKP |
-
