● Dynamic compensation,quadrature compensation
● Sampling frequency up to 500Hz
● RS232 /485/TTL output optional
● Wide temperature range：-40 ℃~+85℃，Temperature compensation
Shared：

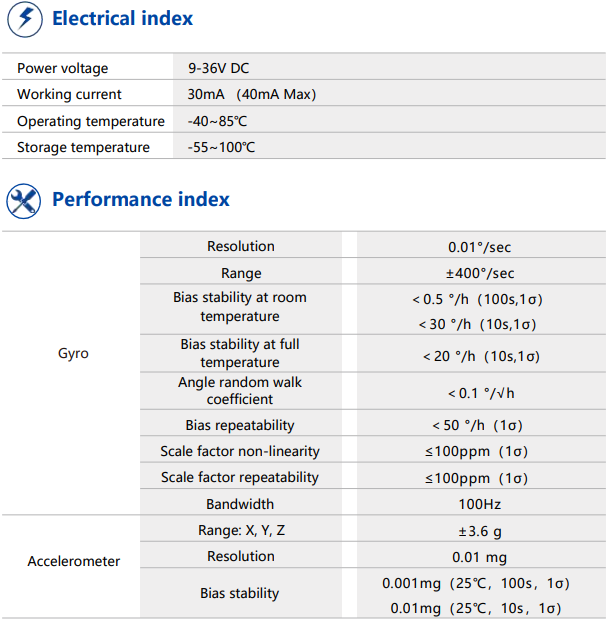

Gyro | Resolution | 0.01°/sec | |
Range | ±400°/sec | ||
Bias stability at room temperature | ＜0.5 °/h（100s,1σ） ＜30 °/h（10s,1σ） | ||
Bias stability at full temperature | ＜20 °/h（10s,1σ) | ||
Angle random walk coefficient | ＜0.1 °/√h | ||
Bias repeatability | ＜50 °/h（1σ） | ||
Scale factor non-linearity | ≤100ppm（1σ） | ||
Scale factor repeatability | ≤100ppm（1σ） | ||
Bandwidth | 100Hz | ||
Accelerometer | Range: X, Y, Z | ±3.6 g | |
Resolution | 0.01 mg | ||
Bias stability | 0.001mg（25℃，100s，1σ） 0.01mg（25℃，10s，1σ） |
-
