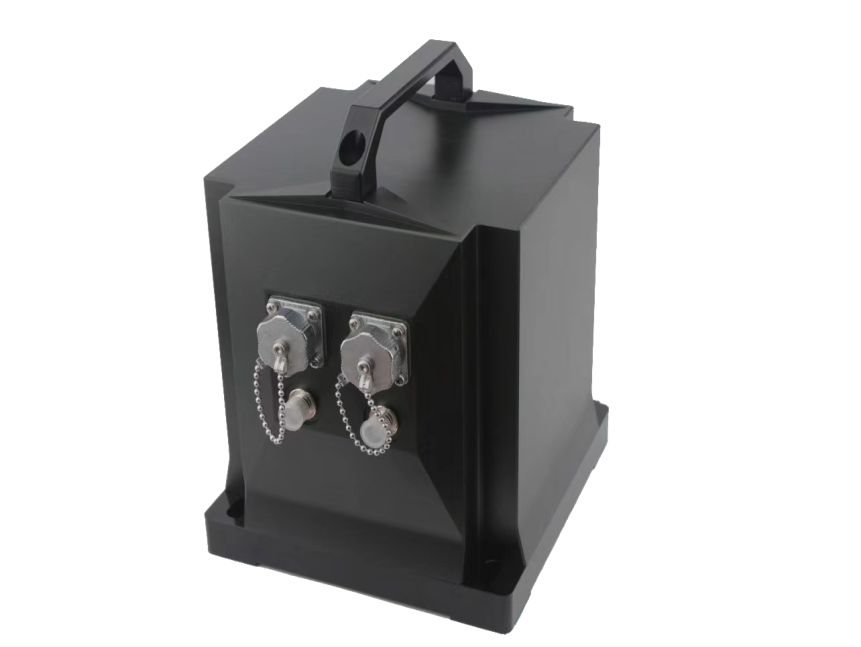

Fiber optic gyro Inertial Measurement Unit IMU1100
Fiber optic gyro Inertial Measurement Unit IMU1100
IMU1100 Fiber optic gyro Inertial Measurement Unit IMU1100 Product Introduction:

● Bias stability: ≤0.015°/h
● Measurement Range: ±600°/s
● Accelerometer Range: ±10g
● Wide temperature range:-40℃~+65℃
● Power supply: 9~36V
● Small Dimension:L178 * W184 * H229.5(mm)

Shared:

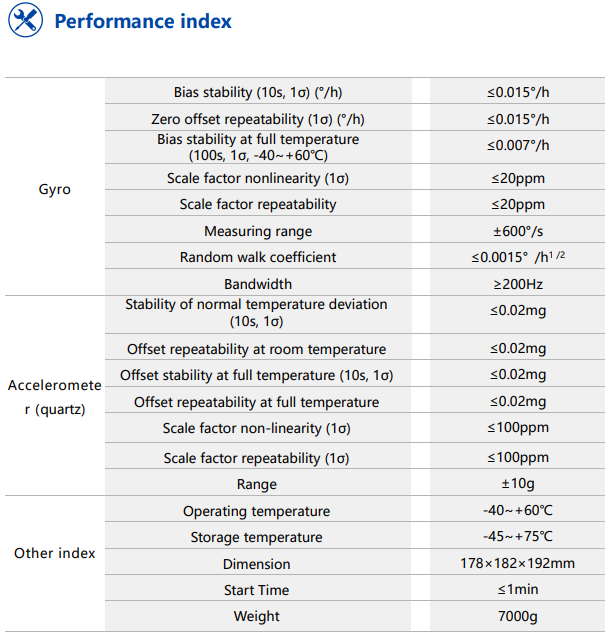

Technical Specifications

Gyro

Zero-bias stability (10s, 1σ) (°/h)


≤0.015°/h


Zero Bias Repeatability (1σ)(°/h)


≤0.015°/h


Zero-bias stability at full temperature(100s, 1σ, -45~+70°C)


≤0.007°/h


Scale Factor Nonlinearity (1σ)


30ppm


Scale Factor Repeatability


30ppm


Measurement Range


±1000°/s


Random Walk Factor


≤0.0015° /h1 /2


Bandwidth


200Hz

Accelerometer (Quartz)

Normal temperature bias stability (10s, 1σ)


≤0.05mg


Normal temperature bias repeatability


≤0.05mg


Full temperature bias stability (10s, 1σ)


≤0.05mg


Full temperature bias repeatability


≤0.05mg


Scale factor nonlinearity (1σ)


≤100ppm


Scale factor repeatability (1σ)


≤100ppm


Measurement range


±10g

Other index

Working Temperature


-45~+70


Storage temperature


-55~+80


External Dimension


178*180*179.1mm(handle not included)


Start-up time


≤1min


Weight


7000g

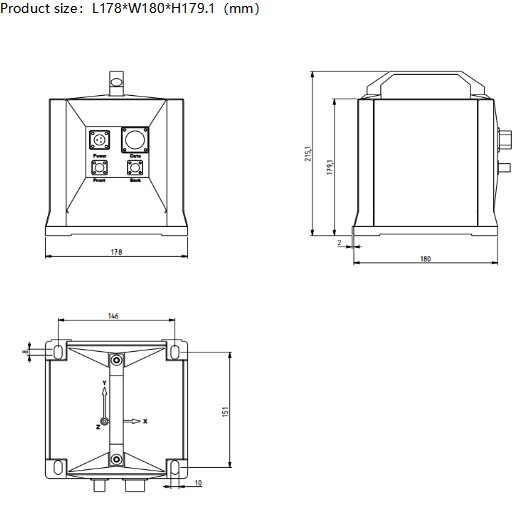

Product Size
