IMU125

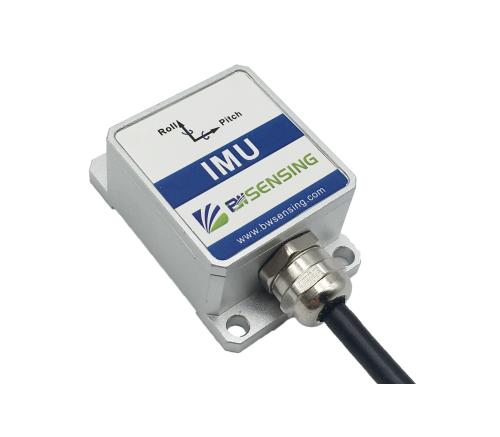

Low-cost CAN Inertial Measurement Unit IMU125
Product Introduction：
● CAN Output
● Wide temperature range：-40 ℃~+85℃，Temperature compensation
● Small size：L55×W37×H24mm
● Power voltage 5V DC
● Working current 30mA（40mA max）
● Operating temperature-40~85℃
● Storage temperature-55~100℃
Shared：

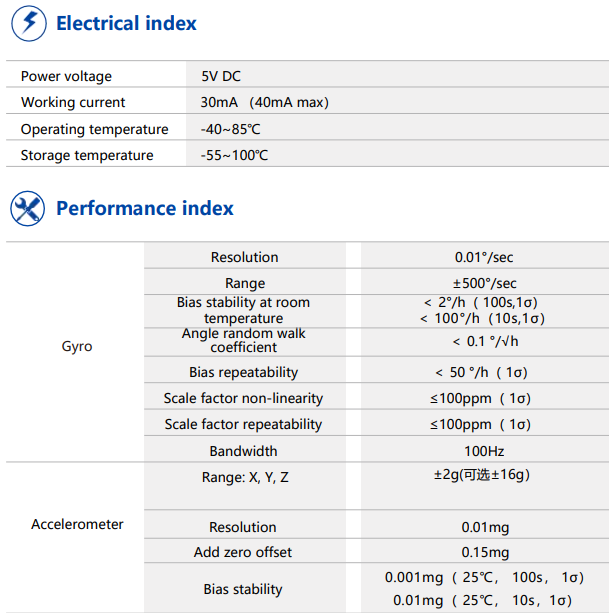

Technical Specifications
Performance index
| Gyro | Resolution | 0.01°/sec |
| Range | ±500°/sec | |
| Bias stability at room temperature | ＜2°/h（100s,1σ） ＜100°/h（10s,1σ） | |
| Angle random walk coefficient | ＜0.1°/√h | |
| Bias repeatability | ＜50°/h（1σ） | |
| Scale factor non-linearity | ≤100ppm（1σ） | |
| Scale factor repeatability | ≤100ppm（1σ） | |
| Bandwidth | 100Hz | |
| Accelerometer | Range:X,Y,Z | ±2g(optional±16g) |
| Resolution | 0.01mg | |
| Add zero offset | 0.15mg | |
| Bias stability | 0.001mg（25℃，100s，1σ） 0.01mg（25℃，10s，1σ） |
| Application | |
● Unmanned ships and underwater robots ● Construction machinery ● Stable platform ● AGV unmanned guided vehicle | ● Heavy truck ● Unmanned drive ● Robots ● Unmanned aircrafts |

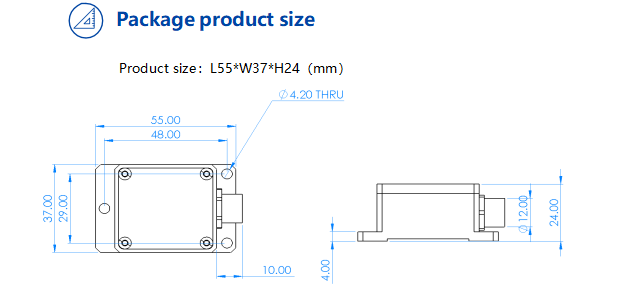

Product Size
-
