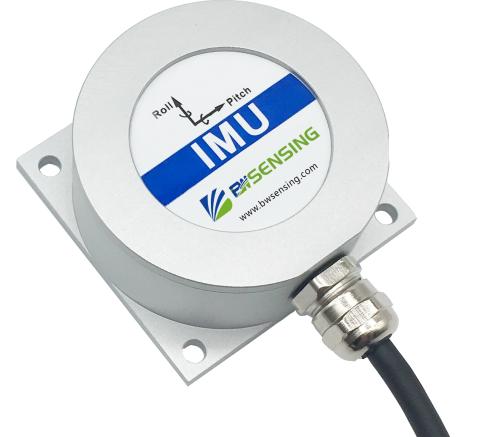

BWSENSING IMU400C High-performance IMU
BWSENSING IMU400C High-performance IMU
IMU400C BWSENSING IMU400C High-performance IMU Product Introduction:

●Dynamic compensation, quadrature compensation
●Sampling frequency up to 500Hz
●RS232 /485/TTL Output optional
●Wide temperature range:-40 ℃~+85℃, Temperature compensation
●Small size:L60×W59×H29mm

Shared:

Technical Specifications






Gyro

Resolution


0.01°/sec


Range


± 400°/sec


Bias stability at room

temperature


0.5 °/h( 100s,1σ)

10 °/h( 10s,1σ)


Bias stability at full

temperature


20 °/h( 10s,1σ)


Angle random walk

coefficient


0.1 °/√h


Bias repeatability


50 °/h(1σ)


Scale factor non-linearity


≤ 100ppm( 1σ)


Scale factor repeatability


≤ 100ppm( 1σ)


Bandwidth


100Hz



Accelerometer

Range: X, Y, Z


± 3.6 g


Resolution


0.01 mg


Bias stability


0.001mg( 25℃, 100s, 1σ)

0.01mg( 25℃, 10s, 1σ)

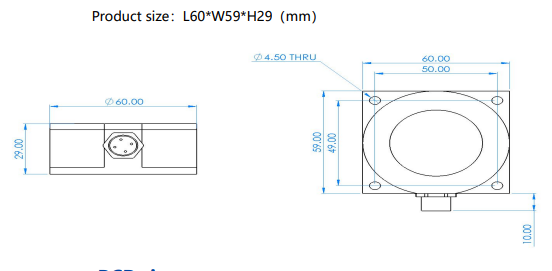

Product Size
