● Gyro bias stability：≤0.4°/h
● Accelerometer bias stability：0.5mg
● Gyro scale factor：≤100ppm
● Accelerometer range：±30g
● Output mode：RS422
● Working temperature：-40℃~+60 ℃
● Weight(without package)：≤450g

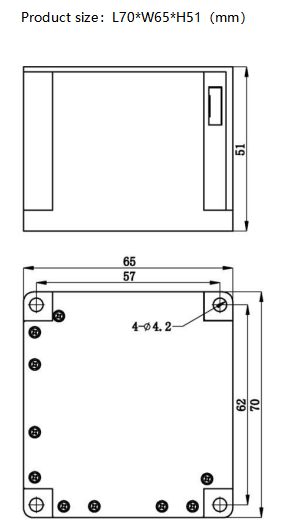

● Small size：L70×W65×H51mm
Shared：

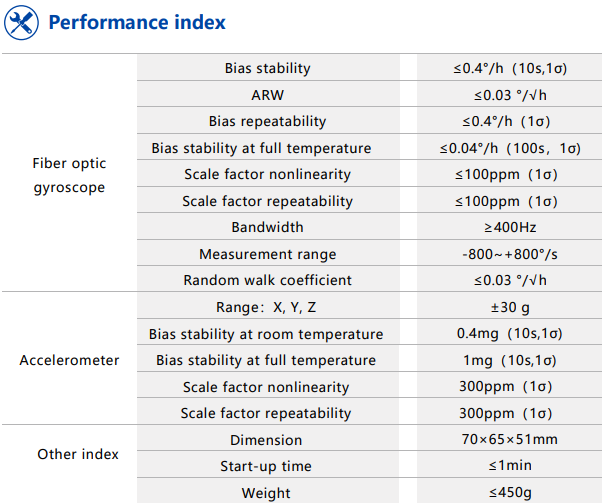

Fiber optic gyroscope | Bias stability | ≤0.4°/h（10s,1σ) | |
ARW | ≤0.03 °/√h | ||
Bias repeatability | ≤0.4°/h（1σ） | ||
Bias stability at full temperature | ≤0.04°/h（100s，1σ) | ||
Scale factor nonlinearity | ≤100ppm（1σ） | ||
Scale factor repeatability | ≤100ppm（1σ） | ||
Bandwidth | ≥400Hz | ||
Measurement range | -800~+800°/s | ||
Random walk coefficient | ≤0.03 °/√h | ||
Accelerometer | Range：X, Y, Z | ±30 g | |
Bias stability at room temperature | 0.4mg（10s,1σ) | ||
Bias stability at full temperature | 1mg（10s,1σ) | ||
Scale factor nonlinearity | 300ppm（1σ） | ||
Scale factor repeatability | 300ppm（1σ） | ||
Other index | Dimension | 70×65×51mm | |
Start-up time | ≤1min | ||
Weight | ≤450g |
-
