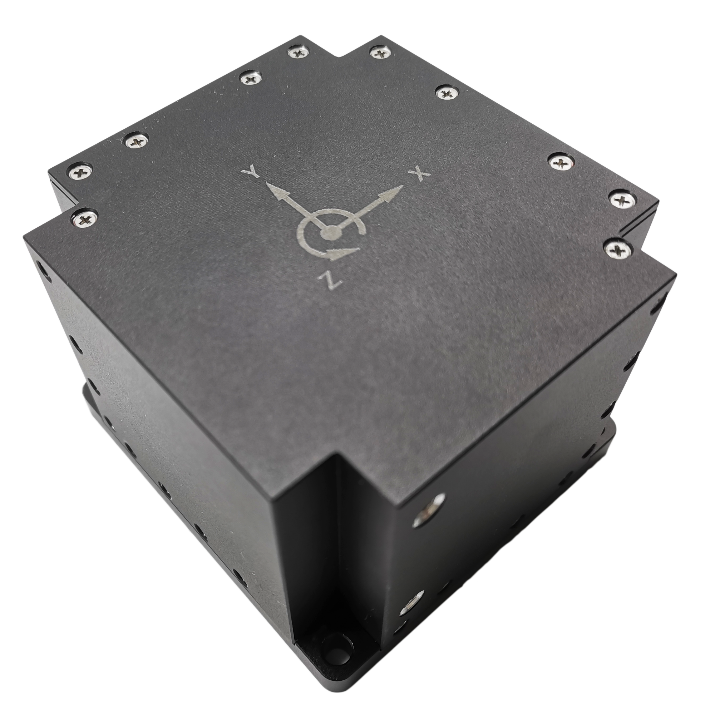

Fiber optic gyro Inertial Measurement Unit IMU820
Fiber optic gyro Inertial Measurement Unit IMU820
IMU820 Fiber optic gyro Inertial Measurement Unit IMU820 Product Introduction:

● Bias stability: ≤0.09°/h
● Measurement Range: ±300°/s
● Accelerometer Range: ±30g
● Wide temperature range:-40℃~+75℃
● Power supply: 12~24V
● Small Size:L97.3 * W90 * H70(mm)

Shared:

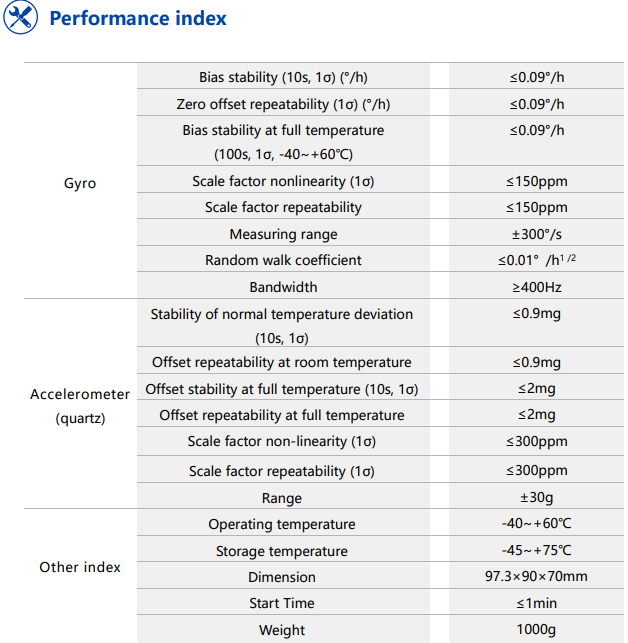

Technical Specifications











Gyro

Bias stability (10s, 1σ) (°/h)


≤0.09°/h


Zero offset repeatability (1σ) (°/h)


≤0.09°/h


Bias stability at full temperature (100s, 1σ, -40~+60℃)


≤0.09°/h


Scale factor nonlinearity (1σ)


≤150ppm


Scale factor repeatability


≤150ppm


Measuring range


±300°/s


Random walk coefficient


≤0.01° /h1 /2


Bandwidth


≥400Hz









Accelerometer (quartz)

Stability of normal temperature deviation

(10s, 1σ)


≤0.9mg


Offset repeatability at room temperature


≤0.9mg


Offset stability at full temperature (10s, 1σ)


≤2mg


Offset repeatability at full temperature


≤2mg


Scale factor non-linearity (1σ)


≤300ppm


Scale factor repeatability (1σ)


≤300ppm


Range


±30g





Other index

Operating temperature


-40~+60℃


Storage temperature


-45~+75℃


Dimension


97.3×90×70mm


Start Time


≤1min


Weight


1000g

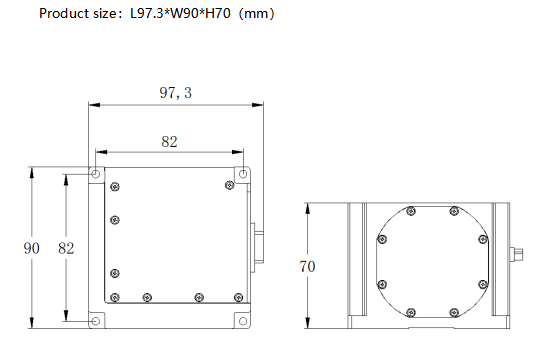

Product Size
