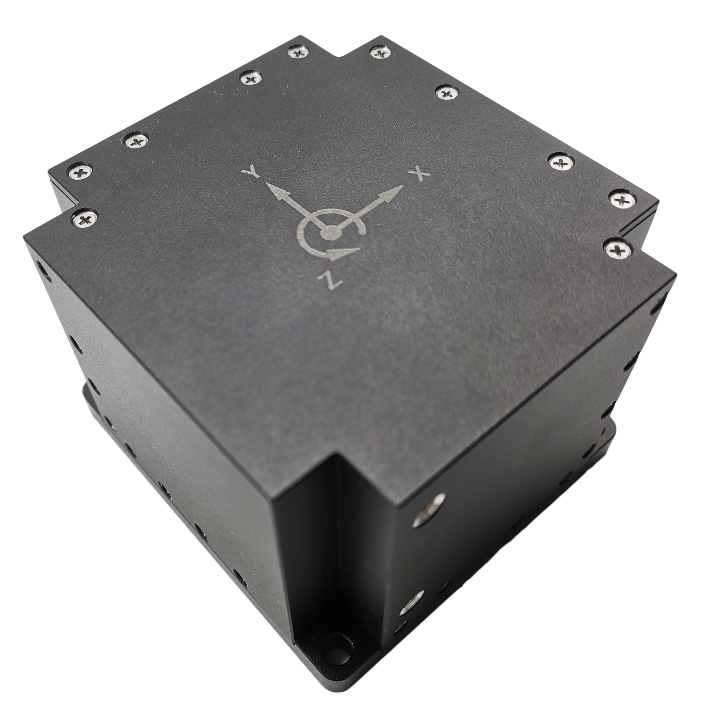

Fiber optic gyro Inertial Measurement Unit IMU930
Fiber optic gyro Inertial Measurement Unit IMU930
IMU930 Fiber optic gyro Inertial Measurement Unit IMU930 Product Introduction:

● Bias stability: ≤0.07°/h
● Measurement Range: ±300°/s
● Accelerometer Range: ±30g
● Wide temperature range:-40℃~+75℃
● Power supply: 12~30V
● Small Dimension:L100 * W100 * H100(mm)

Shared:

Technical Specifications










Gyro

Bias stability (10s, 1σ) (°/h)


≤0.05°/h


Zero offset repeatability (1σ) (°/h)


≤0.05°/h


Bias stability at full temperature

(100s, 1σ, -40~+60℃)


≤0.05°/h


Scale factor nonlinearity (1σ)


≤100ppm


Scale factor repeatability


≤100ppm


Measuring range


±300°/s


Random walk coefficient


≤0.005° /h1 /2


Bandwidth


≥400Hz









Acceleromete r (quartz)

Stability of normal temperature deviation

(10s, 1σ)


≤0.1mg


Offset repeatability at room temperature


≤0.1mg


Offset stability at full temperature (10s, 1σ)


≤0.2mg


Offset repeatability at full temperature


≤0.2mg


Scale factor non-linearity (1σ)


≤100ppm


Scale factor repeatability (1σ)


≤100ppm


Range


±30g





Other index

Operating temperature


-40~+60℃


Storage temperature


-45~+85℃


Dimension


100×100×100mm


Start Time


≤1min


Weight


2000g

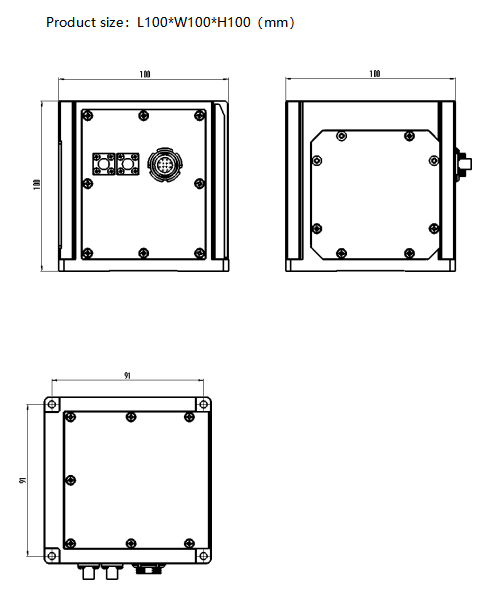

Product Size
