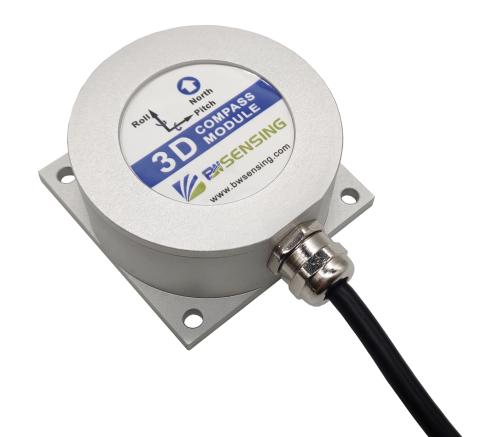

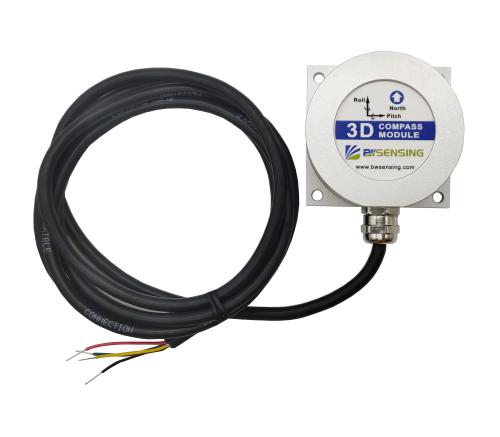

BWSENSIG Angle Compensation 3D Compass SEC385M with Modbus
BWSENSIG Angle Compensation 3D Compass SEC385M with Modbus
BWSENSIG Angle Compensation 3D Compass SEC385M with Modbus
BWSENSIG Angle Compensation 3D Compass SEC385M with Modbus
SEC385M BWSENSIG Angle Compensation 3D Compass SEC385M with Modbus Product Introduction:

● Accuracy:0.5°(RMS)
● -40℃~+85℃ wide temperature work
● Small size:L60 x W59 x H29 (mm)
● Power supply:9-36V
● Resolution:0.1°
● Roll/ pitch accuracy:0.1°
● With hard magnetic, soft magnetic andtilt compensation
● RS232/RS485/TTL Output optio

Shared:

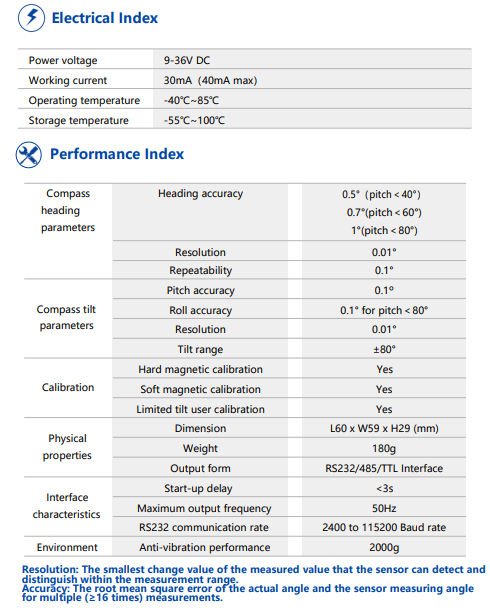

Technical Specifications

Compass heading parameters

Heading accuracy


0.5°(pitch<40°) 0.7°(pitch<60°)

1°(pitch<80°)


Resolution


0.01°


Repeatability


0.1°



Compass tilt parameters

Pitch accuracy


0.1º


Roll accuracy


0.1° for pitch<80°


Resolution


0.01°


Tilt range


±80°



Calibration

Hard magnetic calibration


Yes


Soft magnetic calibration


Yes


Limited tilt user calibration


Yes



Physical properties

Dimension


L60 x W59 x H29 (mm)


Weight


180g


Output form


RS232/485/TTL Interface



Interface characteristics

Start-up delay


<3s


Maximum output frequency


50Hz


RS232 communication rate


2400 to 115200 Baud rate

Environment

Anti-vibration performance


2000g

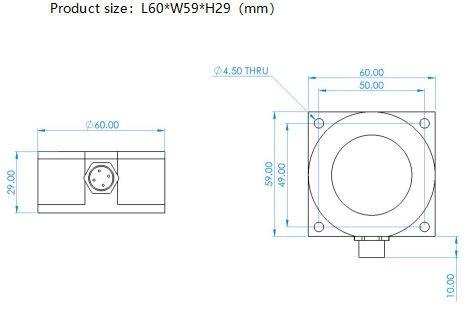

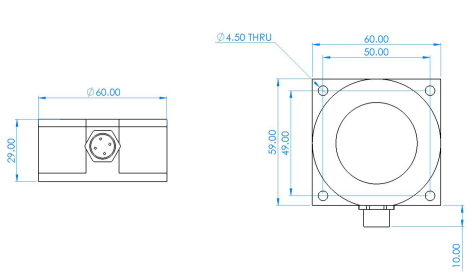

Product Size
