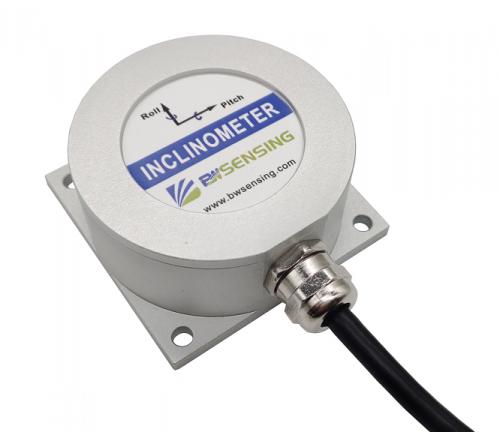

BWSENSING Modbus Dynamic Inclinometer  BW-VG127C
BWSENSING Modbus Dynamic Inclinometer  BW-VG127C
VG127C BWSENSING Modbus Dynamic Inclinometer BW-VG127C Product Introduction:

● Dynamic accuracy: 1°
● Static accuracy: 0.01°
● Non-linear compensation, quadrature compensation
● Special offset tracking algorithm to eliminate drift
● RS232/485/TTL/Modbus interface output optional
● Wide temperature range:-40℃~+85℃
● High-

Shared:

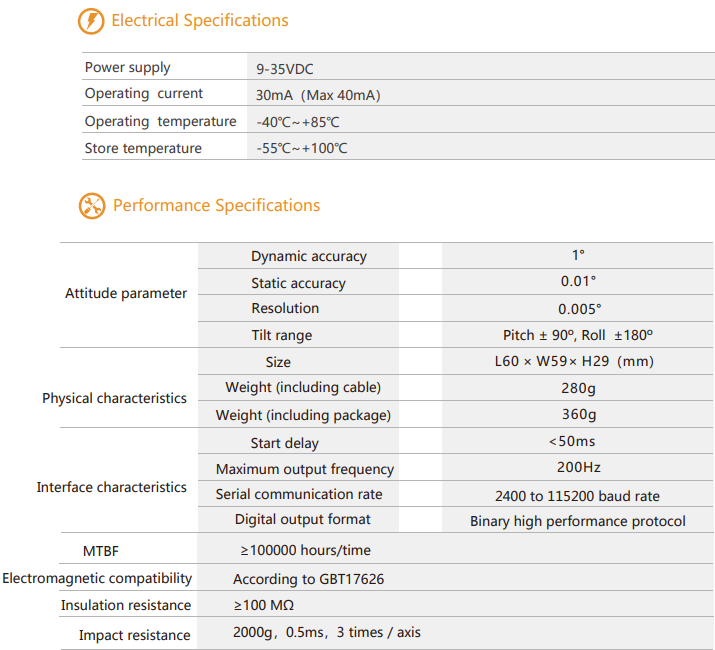

Technical Specifications



Attitude Parameter

Dynamic accuracy



Static accuracy


0.01°


Resolution


0.01°


Tilt margin


Pitch ± 90º, Roll ± 180º



Physical properties

Dimension


L60×W59×H29(mm)


Weight (with wire)


280g


Weight (With packaging)


360g





Interface characteristics

Start delay


<50ms


Maximum sampling rate frequency


200Hz


Serial communication rate


2400 to 115200 baud rate


Digital output format


Binary High Performance Protocol

Trouble-free work on average

≥30000 hours

EMC

According to GBT17626

Insulation Resistance

≥100MΩ

Surge suppression

2000g, 0.5ms, 3 Time/shaft

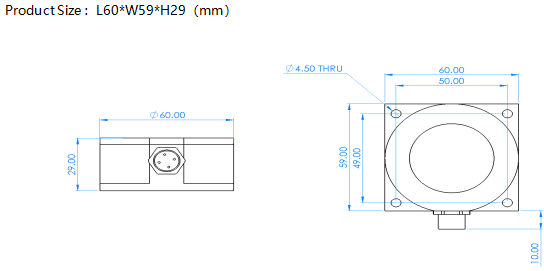

Product Size
