● Dynamic accuracy: 0.1°
● Static accuracy: 0.01°
● Non-linear compensation, quadrature compensation
● Special offset tracking algorithm
● CAN interface output optional
● Wide temperature range:-40℃~+85℃
● High-performance Kalman filter algorith

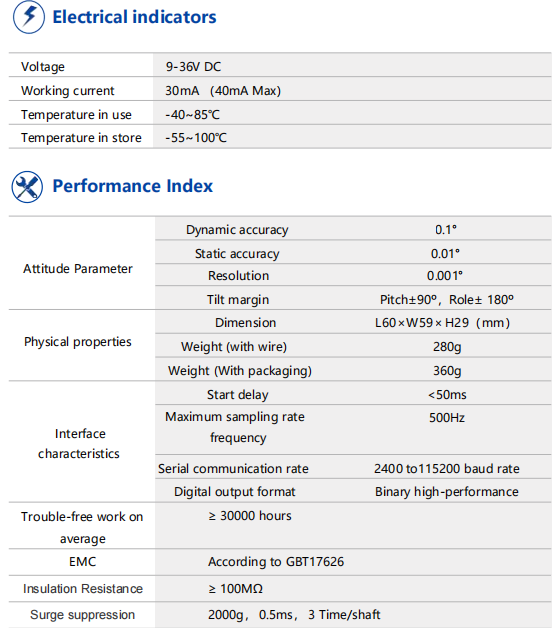

Attitude Parameter | Dynamic accuracy | 0.1° |
Static accuracy | 0.01° | |
Resolution | 0.001° | |
Tilt margin | Pitch±90º,Role± 180º | |

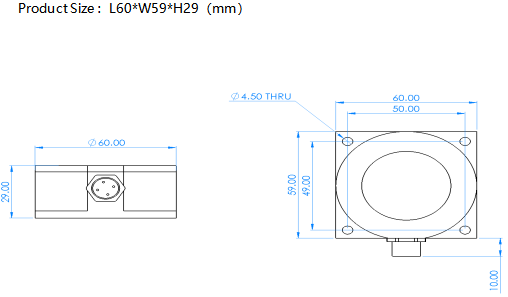

Physical properties | Dimension | L60×W59× H29(mm) |
Weight (with wire) | 280g | |
Weight (With packaging) | 360g | |
Interface characteristics | Start delay | <50ms |
Maximum sampling rate frequency | 500Hz | |
Serial communication rate | 2400 to115200 baud rate | |
Digital output format | Binary high-performance | |
Trouble-free work on average | ≥ 30000 hours | |
EMC | According to GBT17626 | |
Insulation Resistance | ≥ 100MΩ | |
Surge suppression | 2000g, 0.5ms, 3 Time/shaft |
