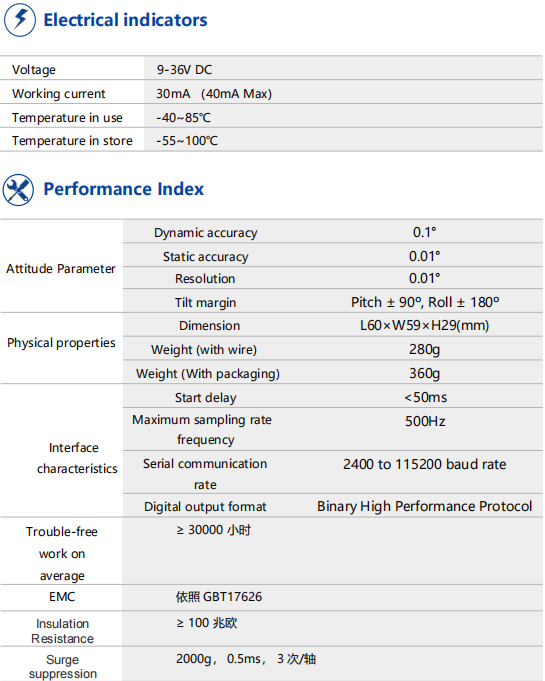

Static accuracy

0.01°

Resolution

0.01°

Tilt margin

Pitch ± 90º, Roll ± 180º

Physical properties

Dimension

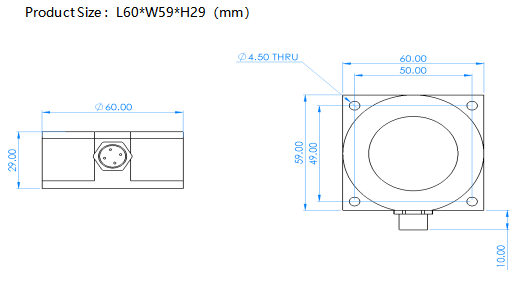

L60×W59×H29(mm)

Weight (with wire）

280g

Weight (With packaging)

360g

Interface

characteristics

Start delay

<50ms

Maximum sampling rate frequency

500Hz

Serial communication rate

2400 to 115200 baud rate

Digital output format

Binary High Performance Protocol

Trouble-free work on

average

≥ 30000 小时

EMC

依照 GBT17626

Insulation Resistance

≥ 100 兆欧

Surge suppression

2000g， 0.5ms， 3 次/轴
