● Dynamic accuracy: 0.05°
● Static accuracy: 0.01°
● Non-linear compensation, quadrature compensation
● Special offset tracking algorithm to eliminate drift
● RS232/485/TTL interface output optional
● Wide temperature range:-40℃~+85℃
● High-perf

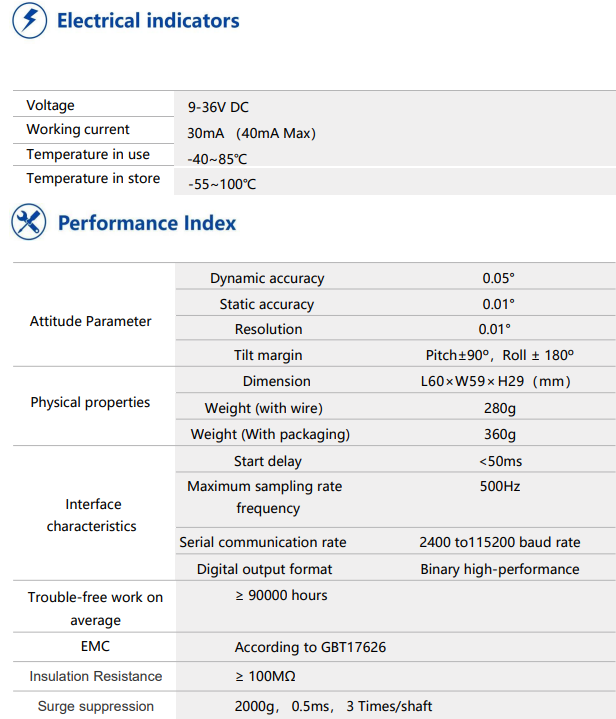

Attitude Parameter | Dynamic Accuracy 0.05° |
Static Accuracy 0.01° | |
Resolution 0.01° | |
Tilt range Pitch ± 90º, Roll ± 180º | |

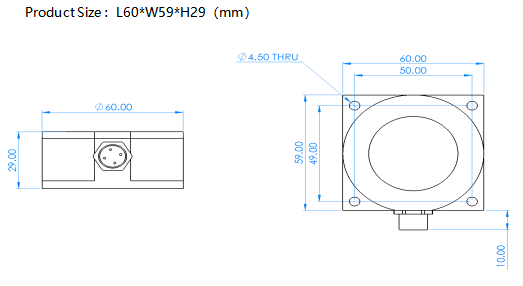

Physical properties | Dimension L60×W59× H29(mm) |
Weight (with cable) 280g | |
Weight (with package) 360g | |
Interface characteristics | Start-up delay <50ms |
Maximum Output Frequency 500Hz | |
Serial communication rate 2400 to 115200 baud rate | |
Digital Output Format Binary High Performance Protocol | |
Trouble-free work on average | ≥ 90,000 hours |
EMC | In accordance with GBT17626 |
Insulation Resistance | ≥ 100 megohms |
Surge suppression | 2000g, 0.5ms, 3 times/axis |
