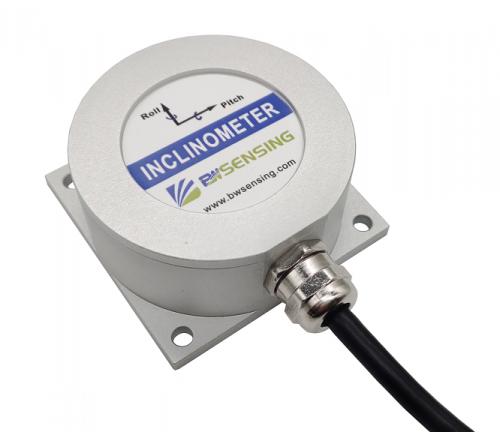

BWSENSING Ultra-High Precision CAN Dynamic Inclinometer BW-VG625
BWSENSING Ultra-High Precision CAN Dynamic Inclinometer BW-VG625
VG625 BWSENSING Ultra-High Precision CAN Dynamic Inclinometer BW-VG625 Product Introduction:

● Dynamic accuracy: 0.05°
● Static accuracy: 0.01°
● Non-linear compensation, quadrature compensation
● Special offset tracking algorithm to eliminate drif
● Wide temperature range:-40℃~+85℃
● High-performance Kalman filter algorithm
● Dimension

Shared:

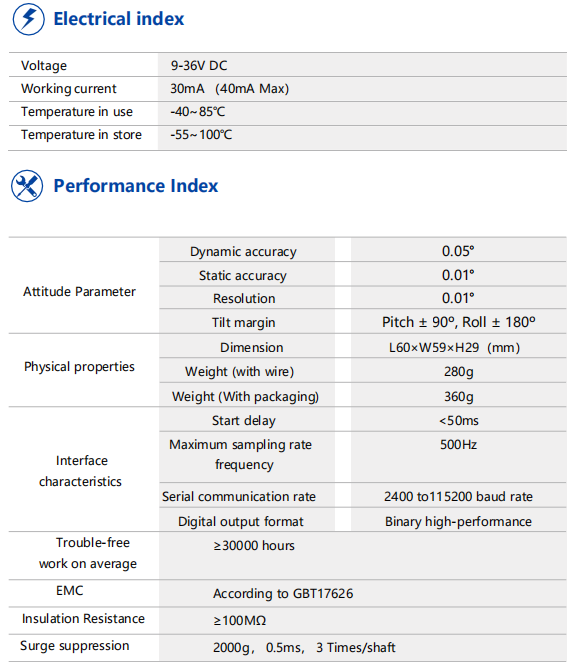

Technical Specifications




Attitude Parameter

Dynamic Accuracy                                   0.05°


Static Accuracy                                      0.01°


Resolution                                         0.01°


Tilt range                           Pitch ± 90º, Roll ± 180º



Physical properties

Dimension                             L60×W59× H29(mm)


Weight (with cable)                                  280g


Weight (with package)                                360g





Interface

characteristics

Start-up delay                                      <50ms


Maximum Output Frequency                          500Hz


Serial communication rate            2400 to 115200 baud rate


Digital Output Format         Binary High Performance Protocol

Trouble-free

work on

average

 90,000 hours

EMC

In accordance with GBT17626

Insulation

Resistance

 100 megohms

Surge suppression

2000g, 0.5ms, 3 times/axis

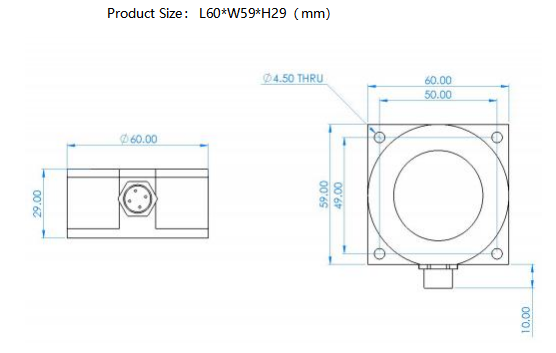

Product Size
