● Dynamic accuracy: 0.05°
● Static accuracy: 0.01°
● Nonlinear compensation, quadrature compensation
● Special offset tracking algorithm to eliminate drift
● RS232/485/TTL output optional
● Wide temperature range:-40℃~+85℃
● High-performance Ka

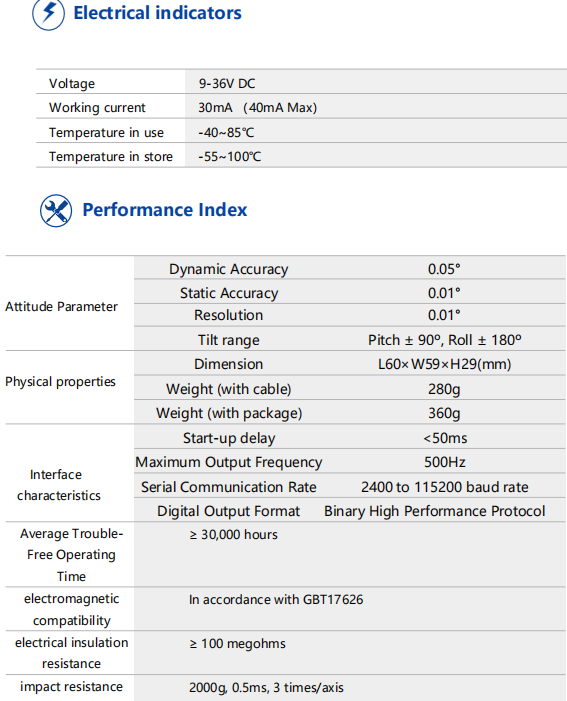

Attitude Parameter | Dynamic Accuracy | 0.05° |
Static Accuracy | 0.01° | |
Resolution | 0.01° | |
Tilt range | Pitch ± 90º, Roll ± 180º | |

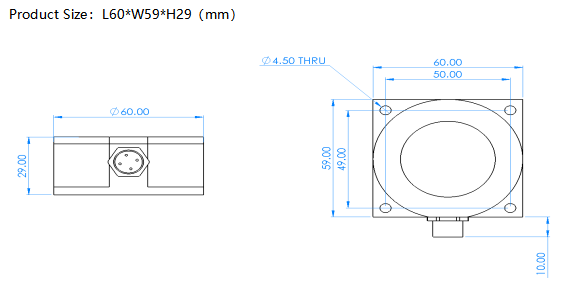

Physical properties | Dimension | L60×W59×H29(mm) |
Weight (with cable) | 280g | |
Weight (with package) | 360g | |
Interface characteristics | Start-up delay | <50ms |
Maximum Output Frequency | 500Hz | |
Serial Communication Rate | 2400 to 115200 baud rate | |
Digital Output Format | Binary High Performance Protocol | |
Average Trouble-Free Operating Time | ≥ 30,000 hours | |
electromagnetic compatibility | In accordance with GBT17626 | |
electrical insulation resistance | ≥ 100 megohms | |
impact resistance | 2000g, 0.5ms, 3 times/axis |
