● Heading accuracy: 1°
● Inclination accuracy: 1°
● Special offset tracking algorithm to eliminate drift

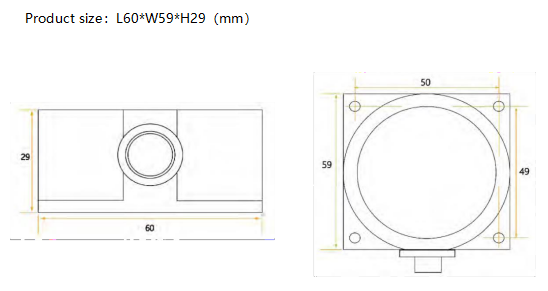

● Size： L60 × W59× H29（mm）
● Output interface: RS232/485/TTL optional
● Wide temperature range: -40℃~+85℃
● Dynamic and static measurement
Shared：

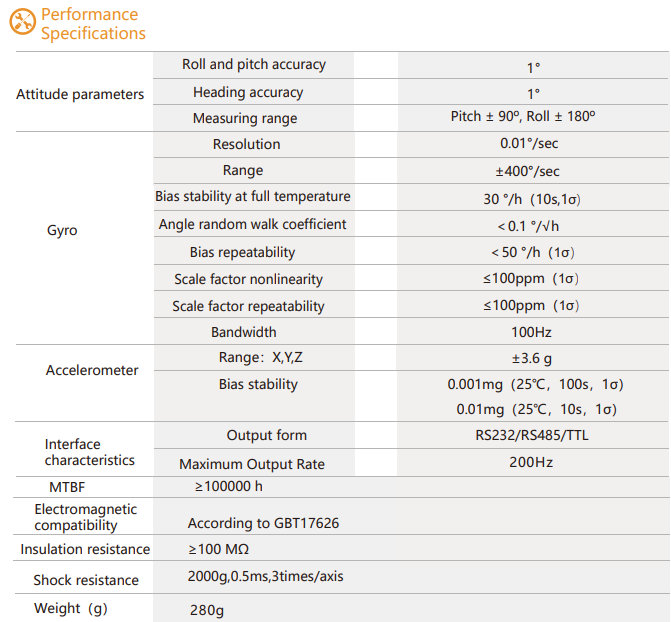

Attitude parameter | Roll/Pitch accuracy | 1° |
Heading accuracy | 1° | |
Tilt range | Pitch±90º，Roll±180º | |
Gyro | Resolution | 0.01° |
Range | ±400°/sec | |
Bias stability at full temperature | 30 °/h（10s,1σ) | |
ARW | ＜0.1 °/√h | |
Scale factor non-linearity | ≤100ppm（1σ） | |
Scale factor repeatability | ≤100ppm（1σ） | |
Bandwidth | 100Hz | |
Accelerometer | Range: X, Y, Z | ±3.6 g |
Bias stability | 0.001mg（25℃，100s，1σ） 0.01mg（25℃，10s，1σ） | |
Interface characteristics | Communication mode | RS232/RS485/TTL |
Maximum output frequency | 100Hz | |
MTBF | ≥90000 h/time | |
EMC | According to GBT17626 | |
Insulation resistance | ≥100 MΩ | |
Impact resistance | 2000g，0.5ms，3 times/axis | |
Weight（with cable） | 280g | |
-
