Power Input

-5V～+5V

Maximum Power Consumption

≤6W

Start-up time

≤1s

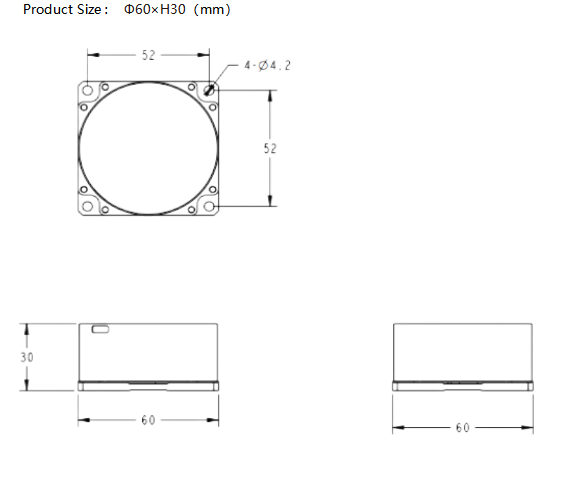

Dimensions

Φ60×H30

Communication Interface

RS 422

Operating Temperature

-40～+65℃

Storage temperature

-50～+80℃

Bias stability °/hr(1σ,10s)

≤0.40

≤0.10

≤0.05

Stabilization time s

＜10

＜10

＜10

Zero bias repeatability ° / hr (1 σ )

≤0.40

≤0.10

≤0.05

Zero bias repeatability over full temperature ° / hr

≤1.2

≤0.5

≤0.3

Random walk coefficient ° /

≤0.05

≤0.01

≤0.005

Scale factor nonlinearity ppm (1 σ )

≤25

≤25

≤25

At room temperature

Scale factor repeatability ppm (1 σ )

≤25

≤25

≤25

At room temperature

Dynamic Range

± 500 ° / s

Magnetic field sensitivity

≤0.10 ° /hr/Gs

Operating temperature

-40 ℃～ + 70 ℃

Storage temperature

-50 ℃ ～ +70 ℃

Vibration conditions

4.2 g ,20 Hz ～ 2000 Hz

Product Weight

≤140 g
