Digital Double-axes Fibre Optic Gyroscope AgileLight-400B
Digital Double-axes Fibre Optic Gyroscope AgileLight-400B

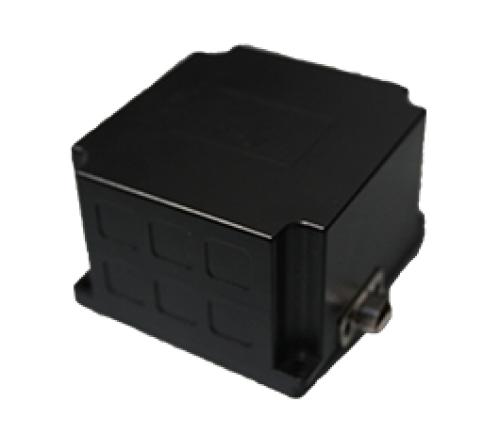

AgileLight-400B Digital Double-axes Fibre Optic Gyroscope AgileLight-400B Product Introduction:

AgileLight-400B is an interferometric digital closed loop double-axes fiber optic gyroscope. AgileLight-400B has the advantages of large working bandwidth, high resolution, small zero drift, high linearity, short starting time, shock resistance, vibrat

Shared:

Technical Specifications

Size(mm): L64×W64×H45

Measuring axis: Double axis

Measuring range(º/s): -450~450

Bias stability(º/h),1σ: ≤0.05

Bias repeatability(º/h),1σ: ≤0.05

Random walk coefficient(º/ √hr): ≤0.005

Scale factor nonlinearity(ppm): ≤80

Scale factor asymmetry(ppm): ≤80

Scale factor repeatability(ppm),1σ: ≤80

Frequency bandwidth(Hz): ≥100

Output mode: RS 422

Connector: J30J-9TJL
