Gyroscope

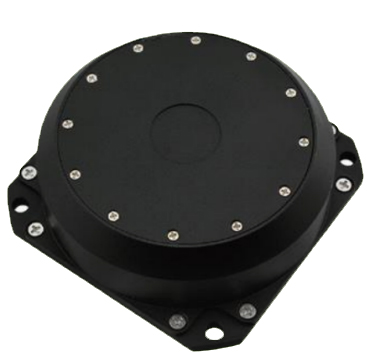

Digital Closed Loop Single Axis Fibre Optic AgileLight-700A
Digital Closed Loop Single Axis Fibre Optic AgileLight-700A
AgileLight-700A Digital Closed Loop Single Axis Fibre Optic AgileLight-700A Product Introduction:

● All fiber optic technology: Long life, small size, high stability, anti-interference angle sensor
● IntelliProcess Technology: Built-in high-performance digital signal processing chip for full digital operation and adaptive filtering technology make

Shared:

Technical Specifications







Technical Parameter

Axis


Single axis


Measurement range


±500°/s


Zero-bias stability (10s, 1σ, Room temperature)


≤0.015°/h


Zero-bias stability (100s, 1σ, Room temperature)


≤0.005°/h


Zero-bias repeatability (1σ, Room temperature)


≤0.015°/h


Random walk factor


≤0.0015°/√h


Data refresh rate


200~2000Hz


Scale factor nonlinearity


20ppm


Scale factor asymmetry


20ppm


Scale factor repeatability


20ppm


Bit rate


115200~921600bps







Physical

Bandwidth (-3dB)


≥200Hz


Power Input


-5V~+5V


Maximum Power Consumption


≤6W


Start-up time


≤1s


Dimension


Φ120×H35


Weight


840g


Communication Interface


RS 422


Operating Temperature


-40+65


Storage temperature


-50+80


Product Size
