-High Accuracy

Adopting highly stable monocrystalline silicon sensor chip made of German advanced MEMS technology, embedded with pressure measuring cartridge and signal processing module imported from Germany, which ensures high accuracy and consistency of the transmitted signal.

-Excellent overpressure performance

40kPa standard range chip overpressure up to 25MPa.

-Excellent environmental adaptability

Apply to a variety of harsh environments, working temperature range -40 ~ 85 ℃. Intelligent temperature compensation, to protect the sensor from the effects of temperature and overpressure, the site of the integrated measurement error control to a relatively small range.

-Convenient installation

The sensor is equipped with various mounting accessories, suitable for different installation requirements.

-Suitable for a wide range of housings

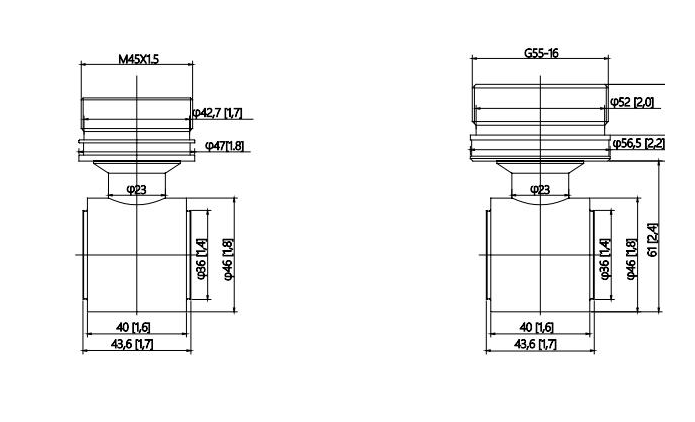

Standard M27, M45, G55 interfaces are suitable for a wide range of housings, and customised housing connections are also available.
