Dual spectrum temperature measurement 5-inch ball machine
Dual spectrum temperature measurement 5-inch ball machine

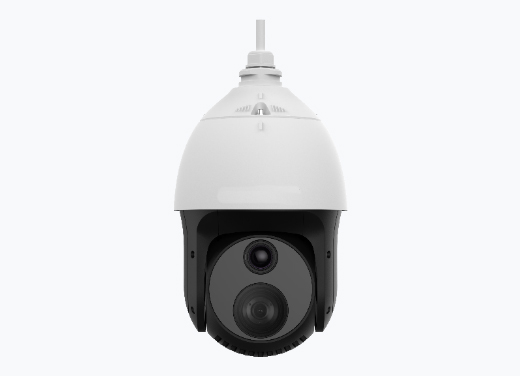

BW-DS4228 Dual spectrum temperature measurement 5-inch ball machine Product Introduction:

●Scenarios: Factories with pyrophoric materials, substations, hydropower stations
●Perimeter protection: line‑crossing, intrusion, region in/out detection
●Fire safety:‑20 °C~550 ℃ temperature measurement (±2 °C / ±2% max), fire & smoke detection
●Thermal: 256×192 VOx detector, NETD ≤35 mK, 10‑year detector warranty
●Optical: 4 MP, 32× optical zoom, 100 m IR range, 120 dB WDR
●Smart: thermal‑optical linked tracking, picture‑in‑picture, target coloration
●PTZ: 360° continuous pan, ‑5°~+90° tilt, presets, patrol, power‑off memory
●Connectivity: H.265+/H.264+, Micro‑SD/NAS storage, ONVIF & ISAPI supported
●Hardware: IP66, 6000 V surge protection, ‑30 °C~60 °C working temp, max 30 W

Shared:

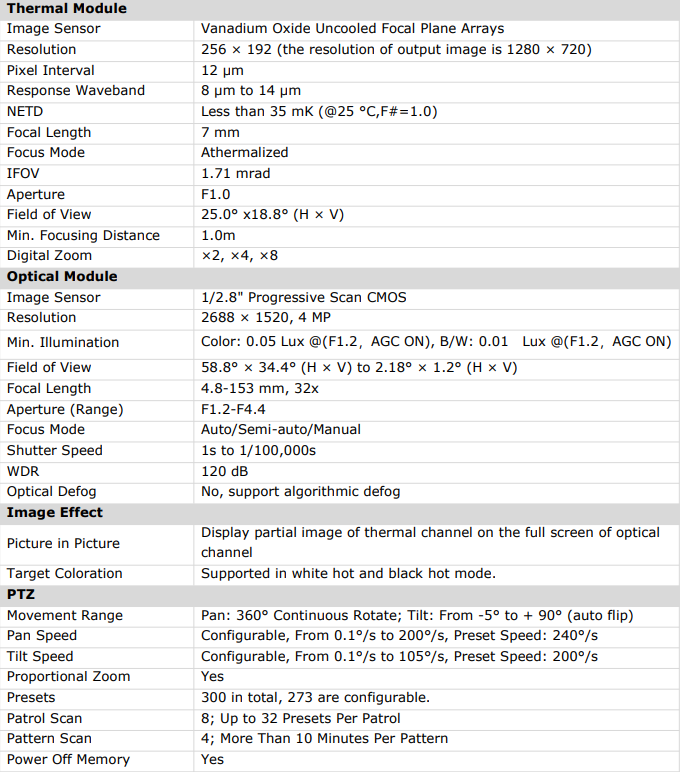

Technical Specifications

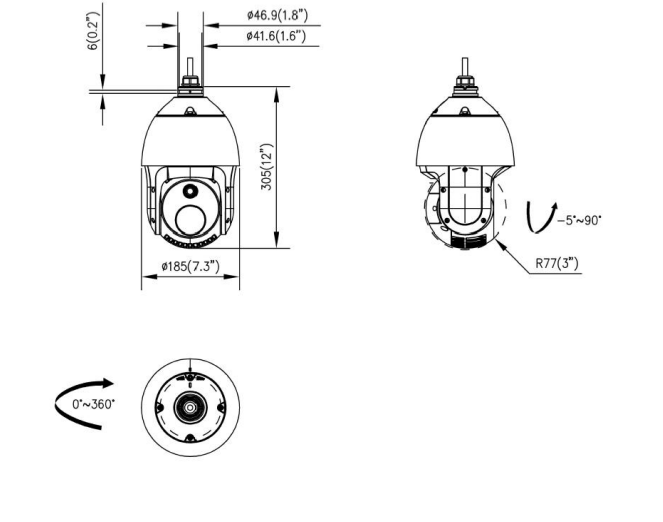

PRODUCT SIZE
