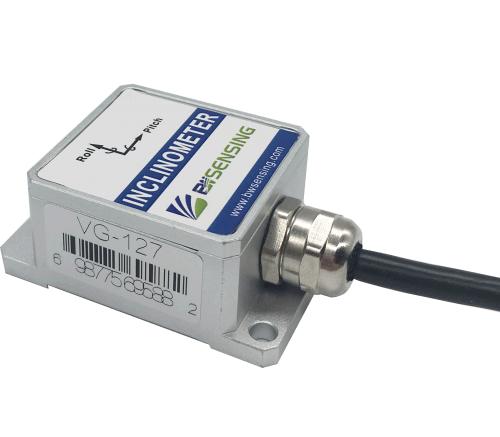

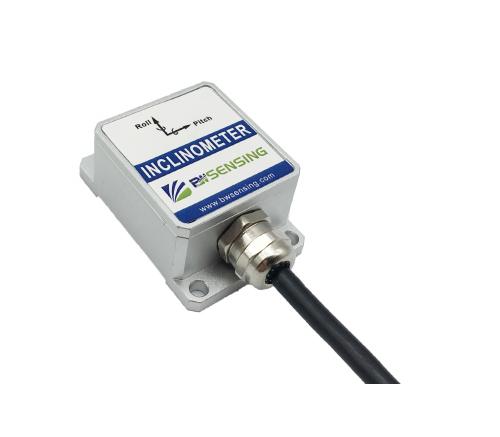

BWSENSING Ultra-low cost Modbus Dynamic Inclinometer  BW-VG127
BWSENSING Ultra-low cost Modbus Dynamic Inclinometer  BW-VG127
BWSENSING Ultra-low cost Modbus Dynamic Inclinometer  BW-VG127
BWSENSING Ultra-low cost Modbus Dynamic Inclinometer  BW-VG127
BW-VG127 BWSENSING Ultra-low cost Modbus Dynamic Inclinometer BW-VG127 Product Introduction:

● Non-linear compensation, quadrature compensation
● Dynamic and static measurement
●Special offset tracking algorithm to eliminate drift
● RS232 /485/TTL/Modbus protocol interface outputs
● Wide temperature range:-40℃~+85℃
● High-performance Kalm

Shared:

Technical Specifications

Performance Index



Attitude Parameter

Dynamic accuracy


Static accuracy


0.2°

Resolution


0.01°

Tilt margin


Pitch ± 90º, Roll ± 180º



Physical properties

Dimension


L55 x W37 x H24 (mm)

Weight (with wire)


130g

Weight (With packaging)


210g



Interface characteristics

Start delay


<50ms

Maximum sampling rate frequency


200Hz

Serial communication rate


2400 to 115200 baud rate

Digital output format


Binary High Performance Protocol

Trouble-free work on average

≥90000 hours

EMC

According to GBT17626

Insulation Resistance

≥100MΩ

Surge suppression

2000g, 0.5ms, 3 Times/axis

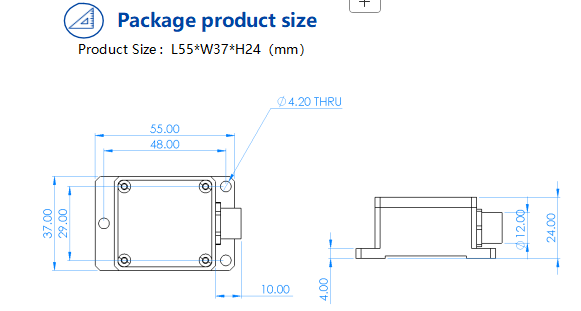

Product Size
