Static Accuracy

0.01°

Resolution

0.01°

Tilt range

Pitch ± 90º, Roll ± 180º

Physical properties

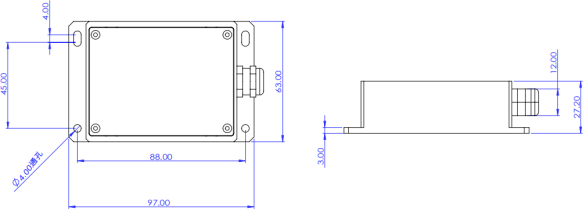

Dimension

L97*W63*H27.2(mm)

Weight (with cable)

400g

Weight (with package)

480g

Interface characteristics

Start-up delay

<50ms

Maximum Output Frequency

500Hz

Electrostatic Discharge (ESD)

IEC 61000-4-2 Class IV

Contact discharge 8KV, air discharge 15KV

Fast transient pulse group immunity

IEC 61000-4-4 Class IV

Repetition frequency 5kHz, power supply positive and negative 4KV, signal line 2KV

IEC 61000-4-5 Class IV

Positive and negative power supply, signal line; common mode 4KV

Surge (shock) immunity

≥90,000 hours/time

Mean Time Between Failure (MTBF)

According to GBT17626

Electromagnetic compatibility

≥100 megohm

Insulation resistance

2000g, 0.5ms, 3 times/axis
