●Non-linear compensation, quadrature compensation
●Dynamic and static measurement
●Gyro drift compensation
●Special offset tracking algorithm to eliminate drift
●RS232/485/TTL/Modbus output
●Wide temperature range：-40℃~+85℃
●High-performance Kalman filter algorithm

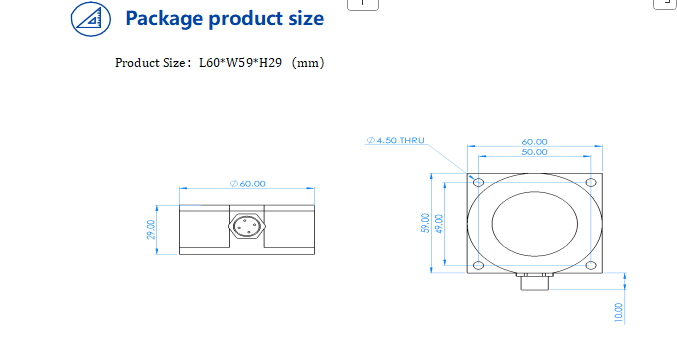

●Small Size：L60 x W59 x H29（mm）
Shared：

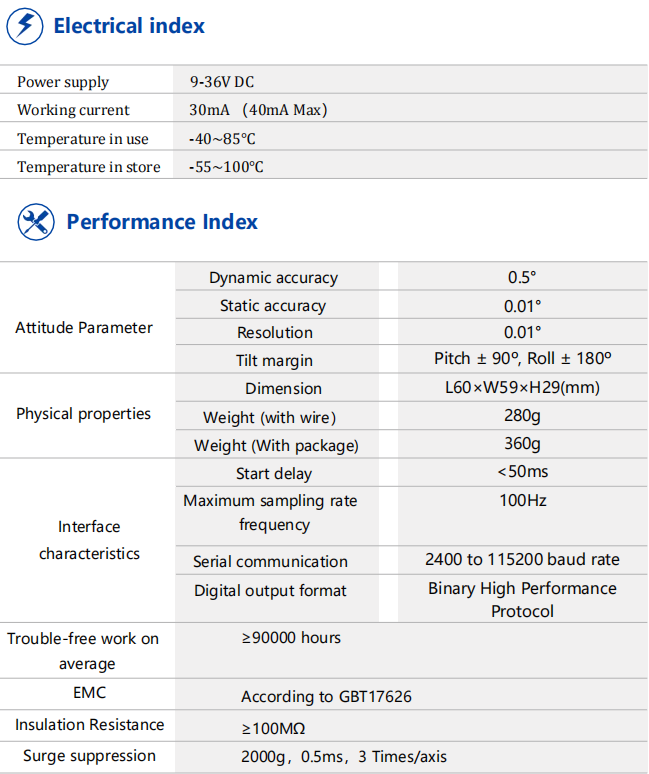

Attitude Parameter | Dynamic accuracy | 0.5° | |
Static accuracy | 0.01° | ||
Resolution | 0.01° | ||
Tilt margin | Pitch ± 90º, Roll ± 180º | ||
Physical properties | Dimension | L60×W59×H29(mm) | |
Weight (with wire） | 280g | ||
Weight (With package) | 360g | ||
Interface characteristics | Start delay | <50ms | |
Maximum sampling rate frequency | 100Hz | ||
Serial communication | 2400 to 115200 baud rate | ||
Digital output format | Binary High Performance Protocol | ||
Trouble-free work on average | ≥90000 hours | ||
EMC | According to GBT17626 | ||
Insulation Resistance | ≥100MΩ | ||
Surge suppression | 2000g，0.5ms，3 Times/axis | ||
Resolution ： The smallest change in the measured value that the sensor can detect and distinguish within the measurement range.
Accuracy：The root means square error between the actual angle and the angle measured by the sensor for multiple times (≥16 times).
-
