Static accuracy

0.01°

Resolution

0.01°

Range

Pitch±90º，Roll±180º

Physical   properties

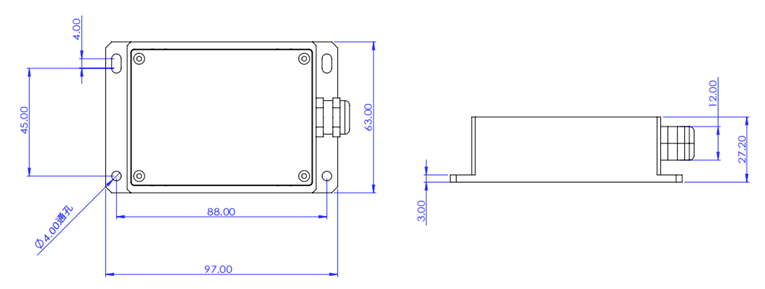

Dimension

L97*W63*H27.2（mm）

Weight (with wire）

400g

Weight (With packaging)

480g

Interface   characteristics

Start delay

<50ms

Maximum sampling rate frequency

500Hz

serial port communication rate

2400 to 115200 baud rate

electrostatic discharge（ESD）

IEC 61000-4-2 Class IV

Contact discharge 8KV,   air discharge 15KV

Fast transient pulse group immunity

IEC 61000-4-4 Class IV

Repetition Frequency   5kHz, Power Supply Positive and Negative 4KV, Signal Line 2KV

Surge (shock) immunity

IEC 61000-4-5 Class IV

Power Positive and   Negative, Signal Wire; Common Mode 4KV

Average   Trouble-Free Operating Time

≥30000   hours/time

electromagnetic   compatibility

In accordance with GBT17626

impact   resistance

2000g, 0.5ms, 3 times/axis
