Static accuracy

0.3°

Resolution

0.01°

Tilt margin

Pitch ± 90º, roll ± 180º.

Physical properties

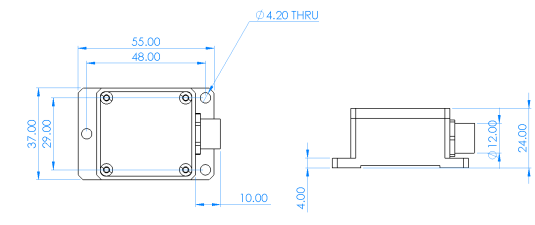

Dimension

L55 x W37 x H24（mm）

Weight (with wire）

130g

Weight (With packaging)

210g

Interface characteristics

Start delay

<50ms

Maximum sampling rate frequency

100Hz

Serial communication rate

2400 to 115200 baud rates

Digital output format

Binary High Performance Protocol

Trouble-free work on average

≥90000 hours

EMC

According to GBT17626

Insulation Resistance

≥100 MΩ

Surge suppression

2000g， 0.5ms， 3 Time/shaft
