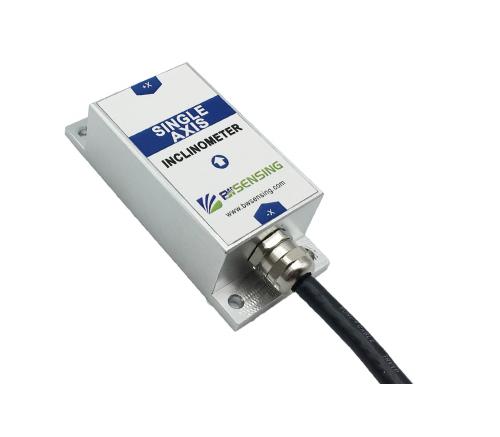

● Single axis tilt measurement
● Resolution：0.02°
● Power supply：9-36V
● Volume：L55*W37*H24（mm）
● Highest accuracy：0.2°
● Range：±180°
● Output：CAN
● IP67 Protection level
Shared：
Parameter | Condition | Minimum | Typical value | Maximum | |||
Power voltage(V) | 9 | 12 | 36 | ||||
Operating current(mA) | No load | 20 | 30 | 40 | |||
Operating temperature(℃) | -40 | 85 | |||||
Storage temperature(℃) | -55 | 100 |
Measurement Range (°)
| Condition | ±180 | |
Measurement axis | X | ||
Accuracy(°) | Room temperature | 0.2 | |
Resolution(°) | Completely still | 0.02 | |
Cross axis error (°) | -40〜85℃ | 0.001 | |
Start-up time | ＜3s | ||
Output frequency (Hz） | 5-100Hz adjustable | Up to 100 | |
Mean time between failures MTBF | ≥90000 h/times | ||
Electromagnetic compatibility | According to GBT17626 | ||
Insulation resistance | ≥100 MΩ | ||
Impact resistance | 2000g，0.5ms，3times/ axis | ||
Weight (g） | 210（ Without outer packaging ） | ||
| Application | |
● Industrial automatic leveling ● Medical instruments ● Photovoltaic automatic tracking ● Tower tilt monitoring | ● Special valve ● Oil drilling equipment ● Industrial converter ● Lifting equipment inclination control |
-
