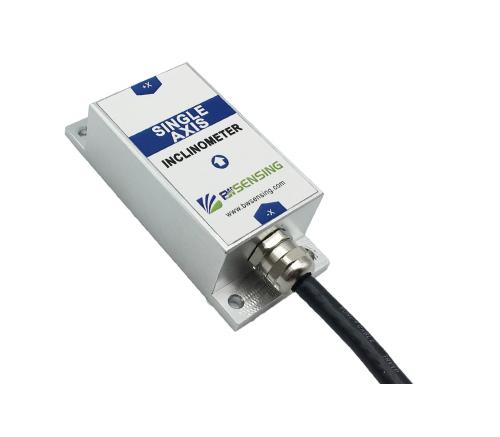

● Single axis inclination measurement
● Resolution:0.02°
● Power supply:12-36V

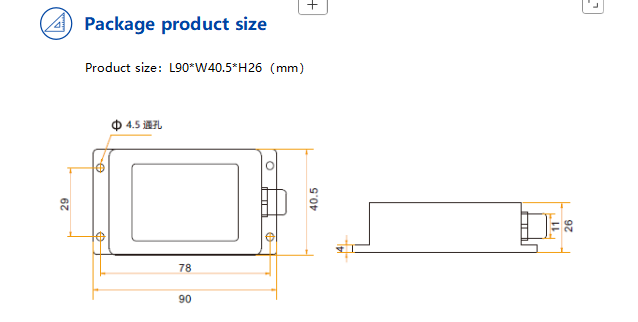

● Size:L90*W40.5*H26(mm)
● Highest accuracy:0.2°
● Range:±180°
● Output: 4-20mA/0-20mA/0-24mA optional
● IP67 protection level
Parameter | Condition | Min | Typ | Max | |||
Power supply(V) | 12 | 36 | |||||
Operating current(mA) | No load | 20 | 50 | 60 | |||
Output load(Ω) | Resistive | 500 | |||||
Operating temperature(℃) | -40 | 85 | |||||
Storage temperature(℃) | -55 | 100 |
Measurement Range (°)
| Condition | ±180 | |
Measurement axis | X | ||
Accuracy (°) | Room temperature | 0.2 | |
Resolution (°) | Completely still | 0.02 | |
Start-up time | <3s | ||
Output frequency (Hz) | 100 | ||
Current output at zero(V) | 10(0-20); 12(4-20); 12(0-24) | ||
Full-scale output current range (V) | 4-20 (0-20 optional) (0-24 optional) | ||
MTBF | ≥90000 h | ||
EMC | According to GBT17626 | ||
Insulation resistance | ≥100 MΩ | ||
Impact resistance | 2000g,0.5ms,3 times/axis | ||
Weight (g) | 230(without package) |
