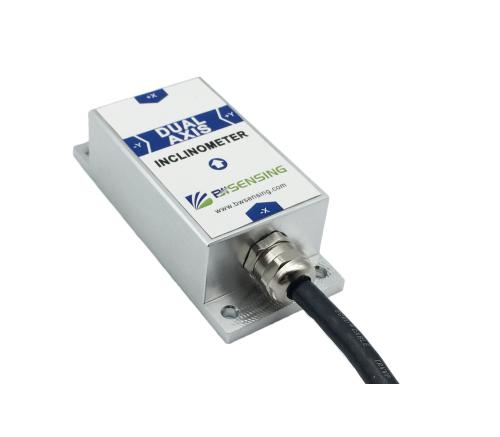

● Dual axis tilt measurement
● Resolution: 0.01°
● Power supply: 9-36V

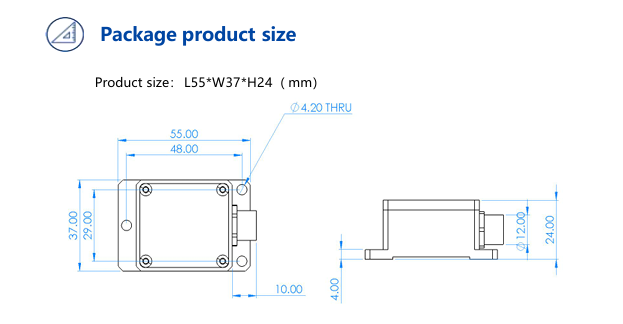

● Volume: L55*W37*H24（ mm）
● Highest accuracy：0.1°
● Range： ±90°
● Output ：CAN
● IP67 protection level
Shared：
Electrical index
Parameter | Condition | Minimum | Typical value | Maximum | |||
Power voltage(V) | 9 | 12 | 36 | ||||
Operating current(mA) | No load | 20 | 30 | 40 | |||
Operating temperature (℃) | -40 | 85 | |||||
Storage temperature (℃) | -55 | 100 |
Performance Index
Measurement Range (°) | Condition | ±10 | ±30 | ±60 | ±90 |
Measurement axis | X-Y | X-Y | |||
Accuracy (°) | Room temperature | 0.1 | 0.1 | 0.2 | |
Resolution (°) | Completely still | 0.01
| 0.01 | 0.01 | |
Zero bias (°/℃) | -40 ~85℃ | ±0.02
| ±0.02 | ±0.02 | |
Cross axis error (°) | -40~85℃ | 0.1  | 0.1 | 0.2 | |
Start-up time | ＜ 50ms | ＜ 50ms | ＜ 50ms | ||
Output frequency ( Hz） | 5-100Hz adjustable | Up to 100
| Up to 100 | Up to 100 | |
Mean time between failures MTBF | ≥90000 h | ||||
Electromagnetic | According to GBT17626 | ||||
Insulation resistance | ≥100 MΩ | ||||
Impact resistance | 2000g ，0.5ms，3 times/axis | ||||
Weight (g） | 210（without outer packaging） | ||||
| Application | |
● Industrial automatic leveling ● Medical instruments ● Photovoltaic automatic tracking ● Tower tilt monitoring | ● Special valve ● Oil drilling equipment ● Industrial converter ● Lifting equipment inclination control |
-
