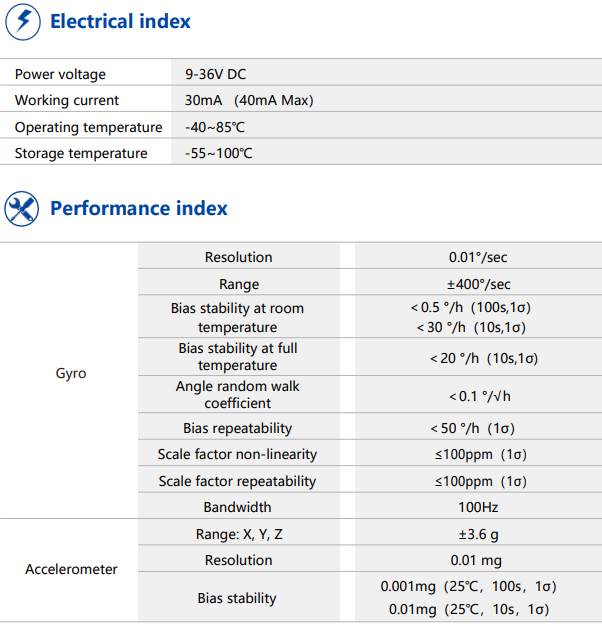

Gyro

Resolution

0.01°/sec

Range

±400°/sec

Bias stability at room

temperature

＜0.5 °/h（100s,1σ）

＜30 °/h（10s,1σ）

Bias stability at full

temperature

＜20 °/h（10s,1σ)

Angle random walk

coefficient

＜0.1 °/√h

Bias repeatability

＜50 °/h（1σ）

Scale factor non-linearity

≤100ppm（1σ）

Scale factor repeatability

≤100ppm（1σ）

Bandwidth

100Hz

Accelerometer

Range: X, Y, Z

±3.6 g

Resolution

0.01 mg

Bias stability

0.001mg（25℃，100s，1σ）

0.01mg（25℃，10s，1σ）
