IMU325

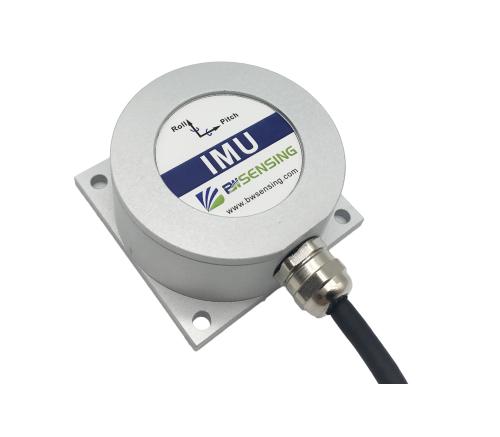

Cost-effective CAN Inertial Measurement Unit IMU325
Product Introduction：
●Dynamic compensation,quadrature compensation
●Sampling frequency up to 500Hz
●CAN interface output
●Wide temperature range:-40 ℃~+85 ℃,temperature compensation
●Small size and shape:L60×W 59 ×H29mm
Shared：
Technical Specifications

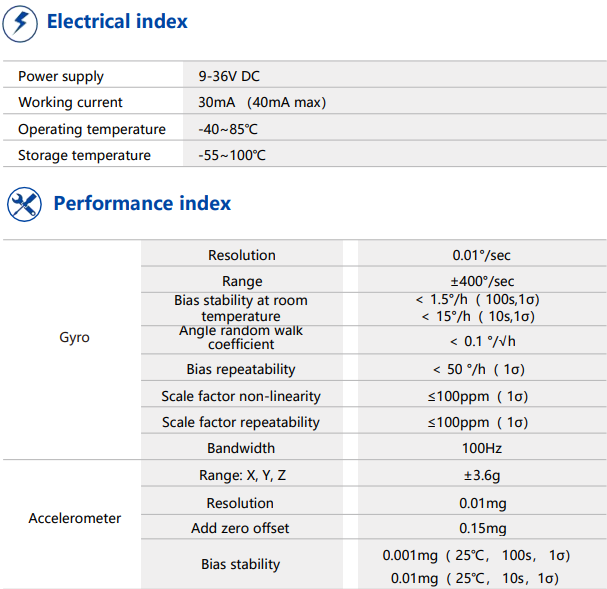

Performance index
| Gyro | Resolution | 0.01°/sec |
| Range | ±400°/sec | |
| Bias stability at room temperature | ＜1.5°/h（100s,1σ） ＜15°/h（10s,1σ） | |
| Angle random walk coefficient | ＜0.1°/√h | |
| Bias repeatability | ＜50°/h（1σ） | |
| Scale factor non-linearity | ≤100ppm（1σ） | |
| Scale factor repeatability | ≤100ppm（1σ） | |
| Bandwidth | 100Hz | |
| Accelerometer | Range:X,Y,Z | ±3.6g |
| Resolution | 0.01mg | |
| Add zero offset | 0.15mg | |
| Bias stability | 0.001mg（25℃，100s，1σ） 0.01mg（25℃，10s，1σ） |
Mechanical Index
| Connector | Metal joint（Cable 1.5m) |
| Protection level | IP67 |
| Shell material | Magnesium aluminum alloy anodizing |
| Installation | Four M4 screws |
| Application | |
● Unmanned ships and underwater robots ● Construction machinery ● Stable platform ● AGV unmanned guided vehicle | ● Heavy duty truck ● Unmanned drive ● Robots ● Unmanned aircrafts |

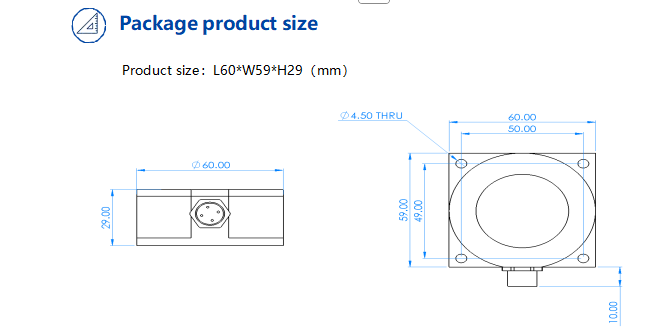

PRODUCT SIZE
-
