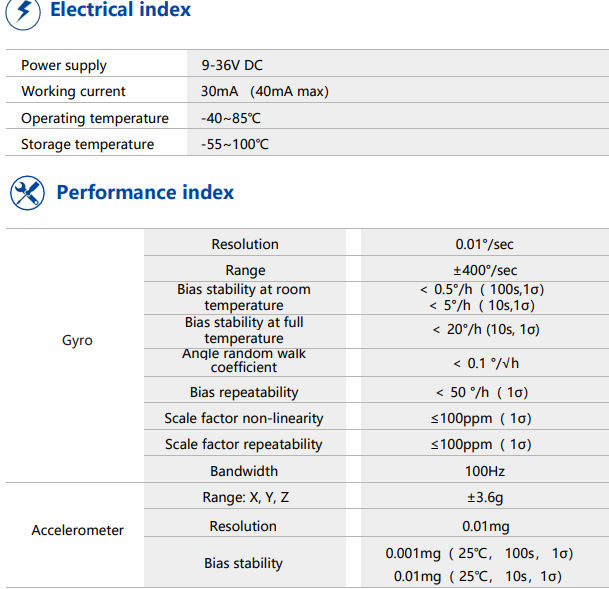

Range

± 400°/sec

Bias stability at room

temperature

＜ 0.5 °/h（ 100s,1σ）

＜5 °/h（ 10s,1σ）

Bias stability at full

temperature

＜ 20 °/h（ 10s,1σ)

Angle random walk

coefficient

＜ 0.1 °/√h

Bias repeatability

＜ 50 °/h（1σ）

Scale factor non-linearity

≤ 100ppm（ 1σ）

Scale factor repeatability

≤ 100ppm（ 1σ）

Bandwidth

100Hz

Accelerometer

Range: X, Y, Z

± 3.6 g

Resolution

0.01 mg

Bias stability

0.001mg（ 25℃， 100s， 1σ）

0.01mg（ 25℃， 10s， 1σ）

Working current

30mA （40mA max）

Operating temperature

-40~85℃

Storage temperature

-55~100℃
