● Accuracy:0.5°(RMS)
● -40℃~+85℃ wide temperaturework
● Small size:L45 x W36 x H13 (mm)
● Power supply:9-36V
● Satellite tracking
● Petroleum geological survey
● Optical rangefinder
● GPS assisted navigation
● Resolution:0.01°
● Pitch/Roll:0.1

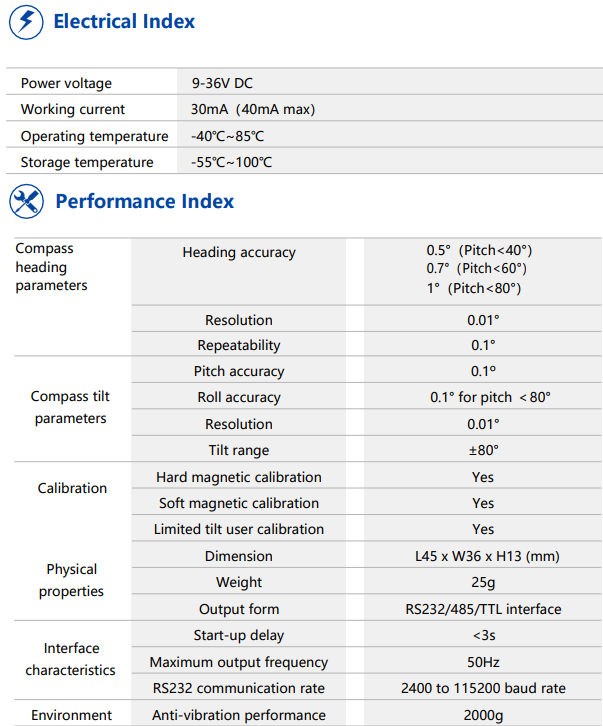

Performance Index
Compass heading parameters | Heading accuracy | 0.5°(Pitch<40°) 0.7°(Pitch<60°) 1°(Pitch<80°) | |
Resolution | 0.01° | ||
Repeatability | 0.1° | ||
Compass tilt parameters | Pitch accuracy | 0.1º | |
Roll accuracy | 0.1° for pitch <80° | ||
Resolution | 0.01° | ||
Tilt range | ±80° | ||
Calibration | Hard magnetic calibration | Yes | |
Soft magnetic calibration | Yes | ||
Limited tilt user calibration | Yes | ||

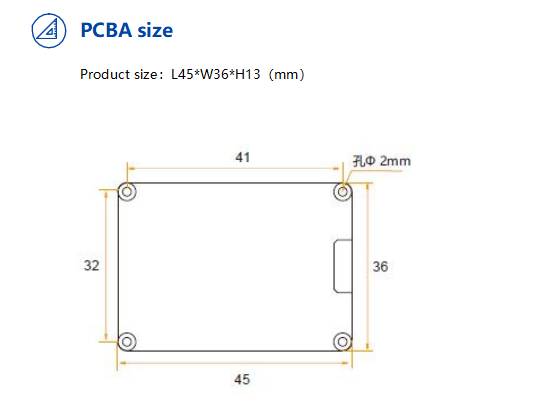

Physical properties | Dimension | L45 x W36 x H13 (mm) | |
Weight | 25g | ||
Output form | RS232/485/TTL interface | ||
Interface characteristics | Start-up delay | <3s | |
Maximum output frequency | 50Hz | ||
RS232 communication rate | 2400 to 115200 baud rate | ||
Environment | Anti-vibration performance | 2000g |
