● Resolution: 0.001°
● Triaxial measurement, range ±60°
● Magnetic Switch
● Data can be transferred to the cloud
● Accuracy: 0.005°
● Power query
● Timed wake up
● Exercise wake
Shared：
Measurement range（°） | Condition | ≤5 | 5~30 | 30~60 | |||
Measurement axis | Mutually perpendicular | X-Y-Z | |||||
Accuracy（°） | Room temperature | ±0.01 | ±0.02 | ±0.03 | |||
Resolution（°） | Completely still | 0.001 | 0.001 | 0.001 | |||
Zero temperature drift （°） | -40～85℃ | ±0.001 | ±0.001 | ±0.001 | |||
Cross axis error （°/℃） | 25℃ | 0.01 | 0.01 | 0.01 | |||
Output frequency （Hz°） | Up to 100 | ||||||
Other output data | Temperature, Battery Voltage | ||||||
Automatic sleep mode | Acceptable | ||||||
Timed wake up | Acceptable | ||||||
Exercise wake | Acceptable | ||||||
Electromagnetic compatibility | According to GBT17626 | ||||||
Insulation resistance | ≥100 MΩ | ||||||
Impact resistance | 2000g，0.5ms，3 times /axis | ||||||

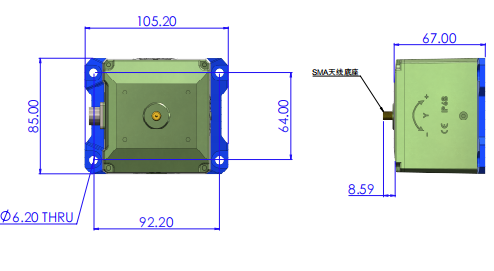

Dimensions | L105.2*W85*H76 (mm) (without antenna) | ||||||
Weight | ＜500g | ||||||
Connector | Aviation connector |
Protection level | IP68(1 m water depth, 24 hours continuous test) |
Shell material | ABS+30% glass fiber + magnesium aluminum alloy anodized base |
Installation | Four M6 screws |
-
