BWSENSING provides one‑stop wind turbine tower monitoring solution with self‑developed MEMS inertial sensors. It realizes 7×24h monitoring for settlement, inclination and deformation, features dual‑level warning and predictive maintenance to mitigate tower‑collapse risks across mountain, cold‑region, plateau and offshore wind farms.
Shared：
BWSENSING independently develops and manufactures full-series inertial sensors, equipped with automatic high-low temperature & vibration calibration workshop, featuring low temperature drift and high shock resistance, widely applied in mainstream wind power projects.
-40℃ ~ 85℃ Stable Output
2000g Shock Resistance, Class IV EMC
Mass Delivery for Leading Wind Turbine Manufacturers
Periodic manual inspection leads to delayed risk detection & high costs
· 25% mechanical failures result in 95% unit downtime, mechanical faults account for 50% of total outage hours
· Manual patrol & scheduled maintenance occupies 25%~30% of total wind farm expenditure; mountain & offshore access is extremely difficult
· Permafrost, sandstorm, salt fog & extreme temperature cause uneven tower settlement & collapse risks
· Long-term vibration loosens tower flange bolts without real-time monitoring, replacement cost is huge
· li>Quarterly inspections only discover faults after occurrence, unable to predict slow foundation deformation and cut power generation revenue
Solution: Adopt high-precision sensing hardware for 24/7 online monitoring to detect structural hazards in advance.
Three-layer system: Perception Layer + Edge Gateway + Alarm Logic
System Composition
· Perception Layer: Top dynamic tilt sensor, foundation settlement sensor, tower bolt monitor
· Transmission Gateway: RS485 to TCP converter, compatible with Modbus RTU/TCP
Core Measurement Accuracy
· Static foundation tilt accuracy: up to 0.001°
· Dynamic tower tilt accuracy: up to 0.02°, suitable for low-frequency sway

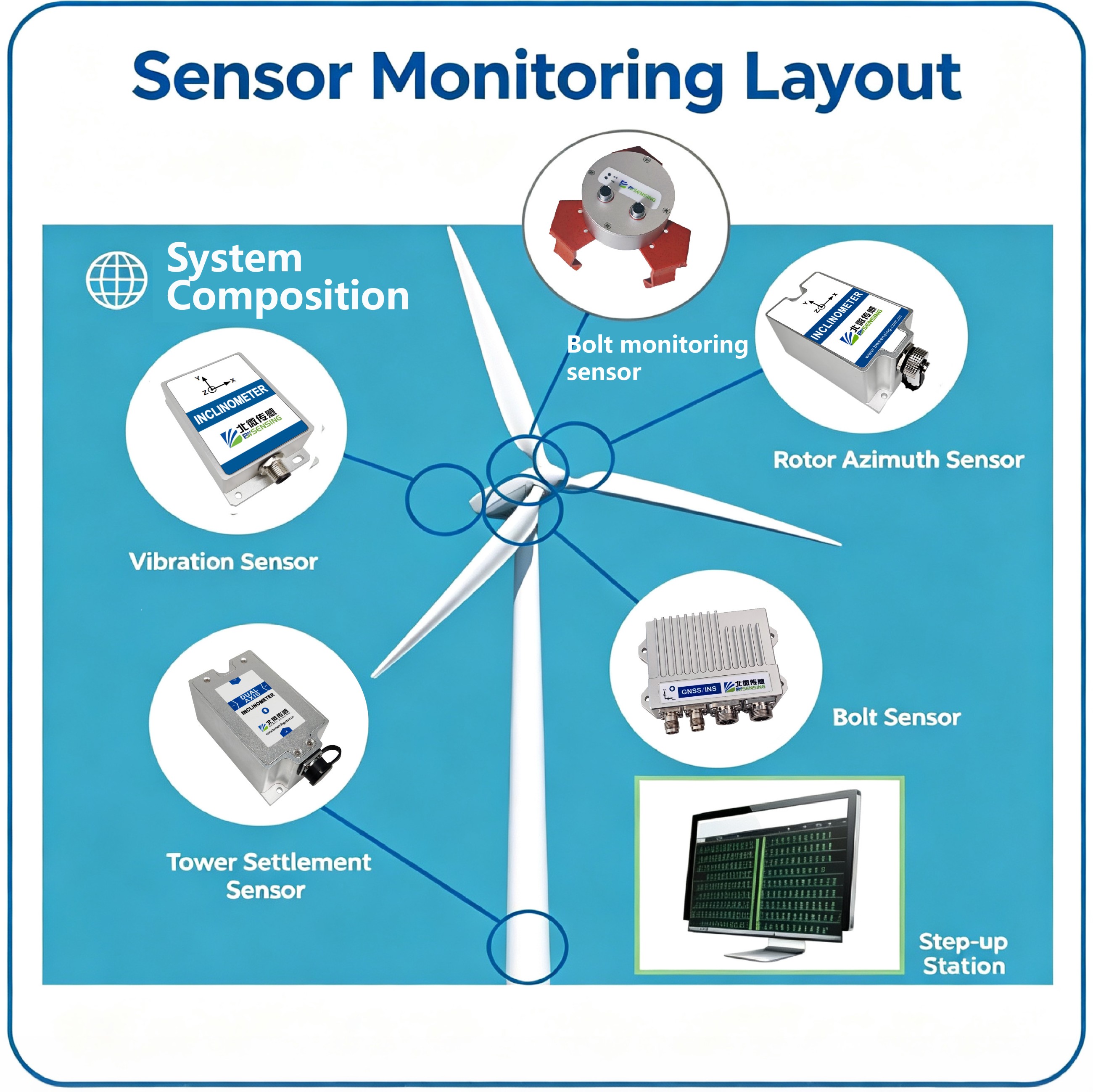

Standard Sensor Layout Scheme
Dynamic tilt sensors installed at nacelle for sway capture; high-precision settlement sensors placed 0.5m above tower base; bolt monitors mounted on tower flanges to cover tower, foundation & fastener health monitoring.

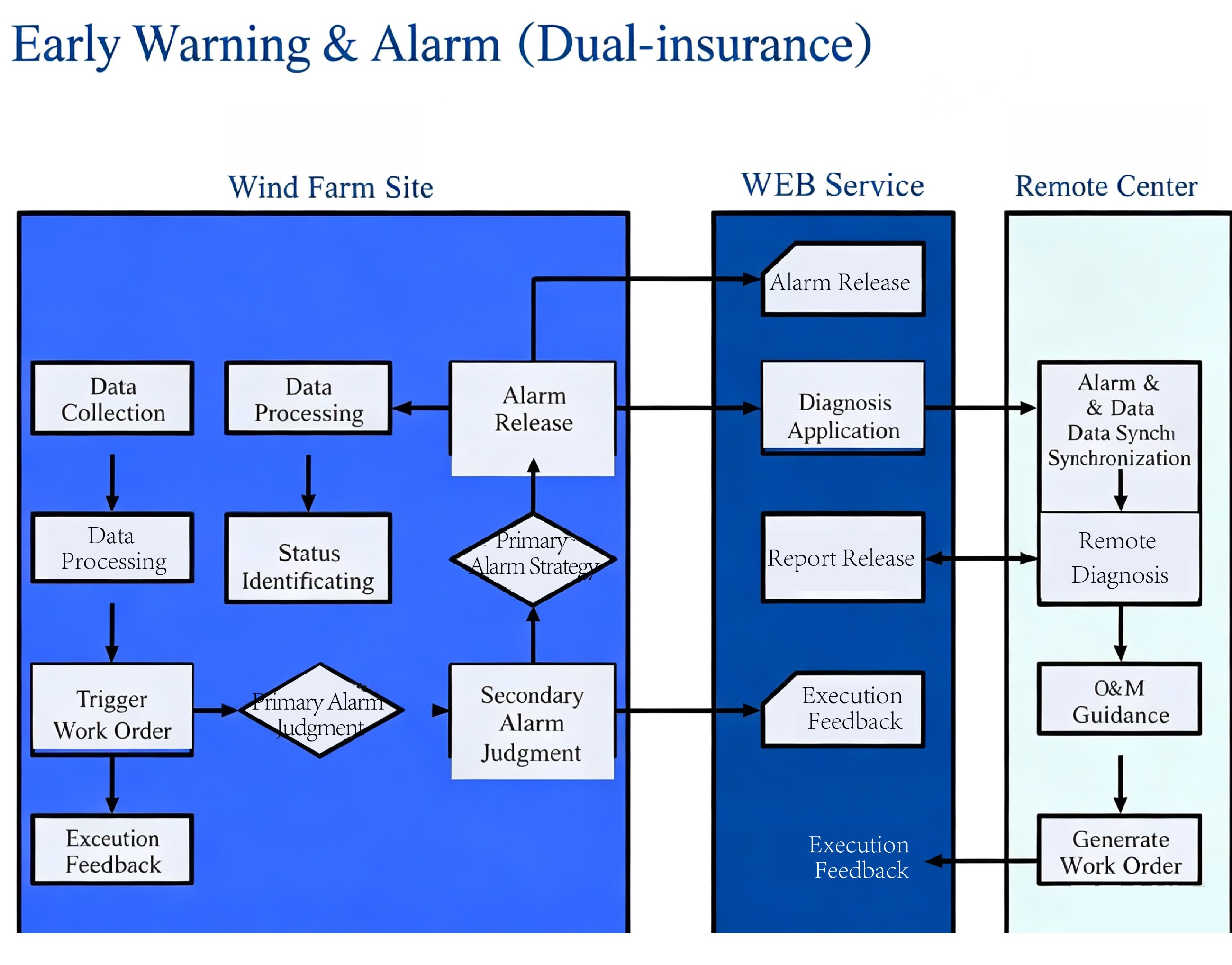

Multi-level Alarm Logic
· Primary threshold screening to capture abnormal raw data rapidly
· Secondary multi-dimensional data fusion judgment to reduce false alarms
· Gateway local storage for fault raw data traceability
Custom hardware for settlement, sway & bolt loosening monitoring

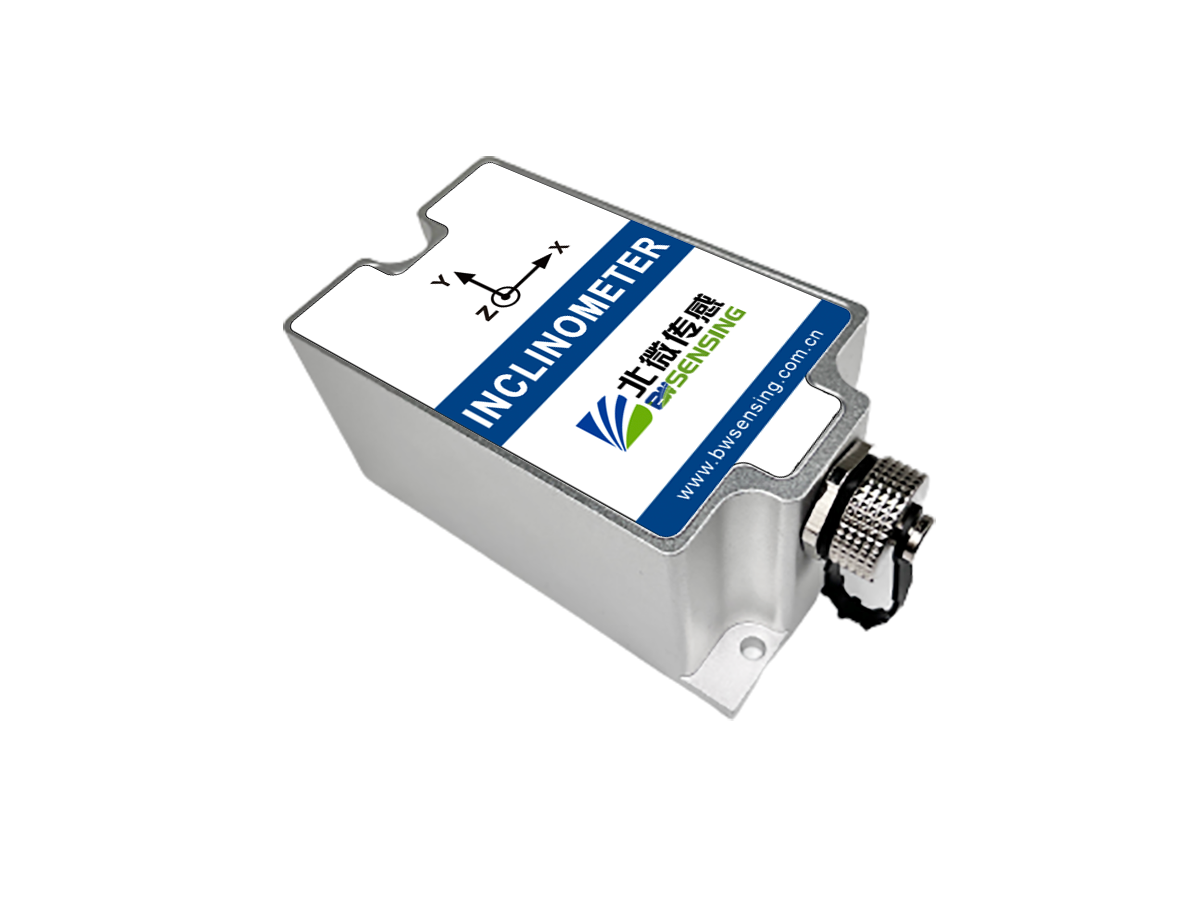

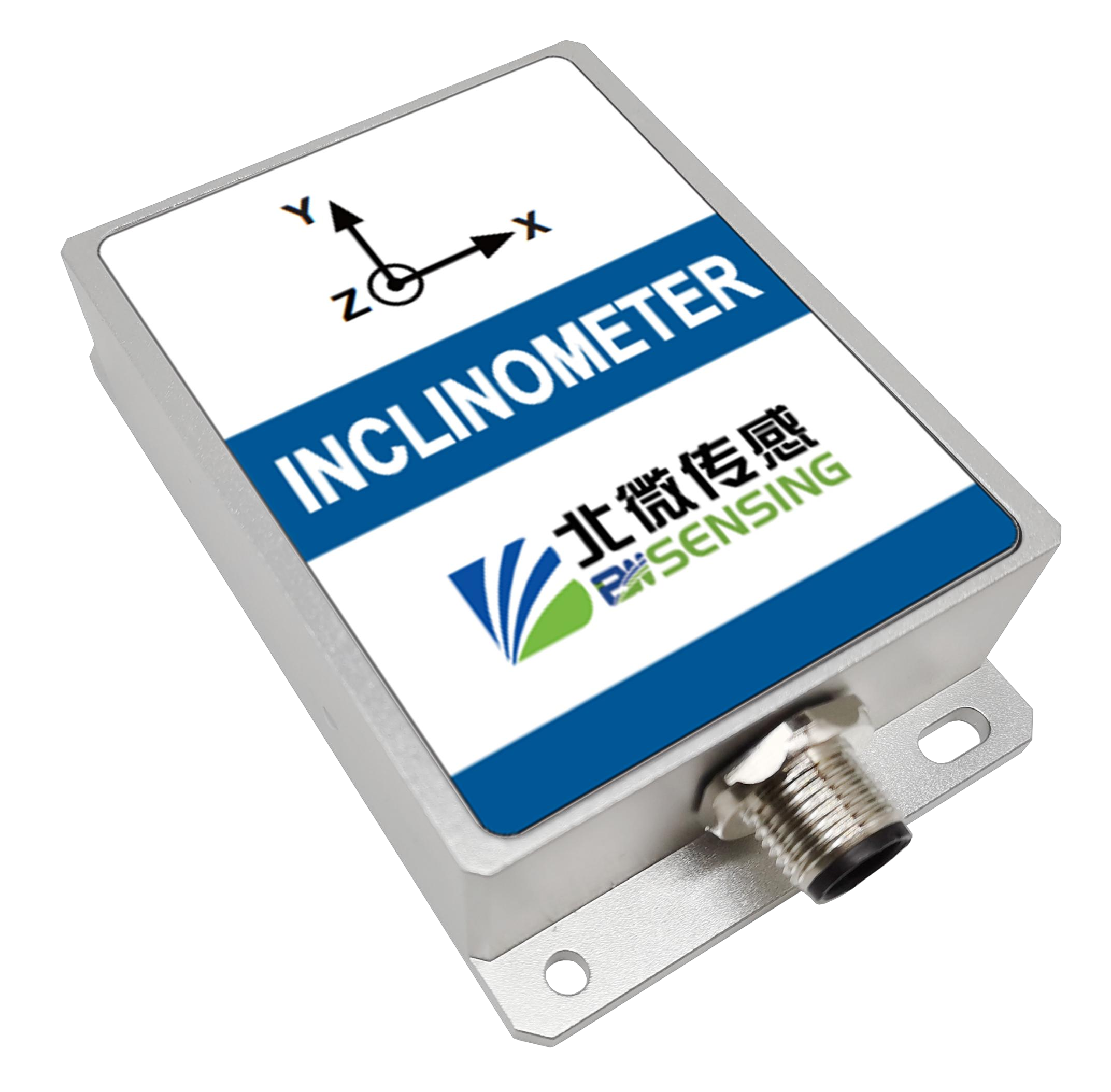

FDVG527E Nacelle Tilt Sensor
Dynamic accuracy 0.02°, 100Hz output, Kalman filter, IP67 wide temperature operation
FDVG220E Cost-effective Tilt Module
0.1° dynamic precision, dual voltage/RS485 output, 2000g anti-shock

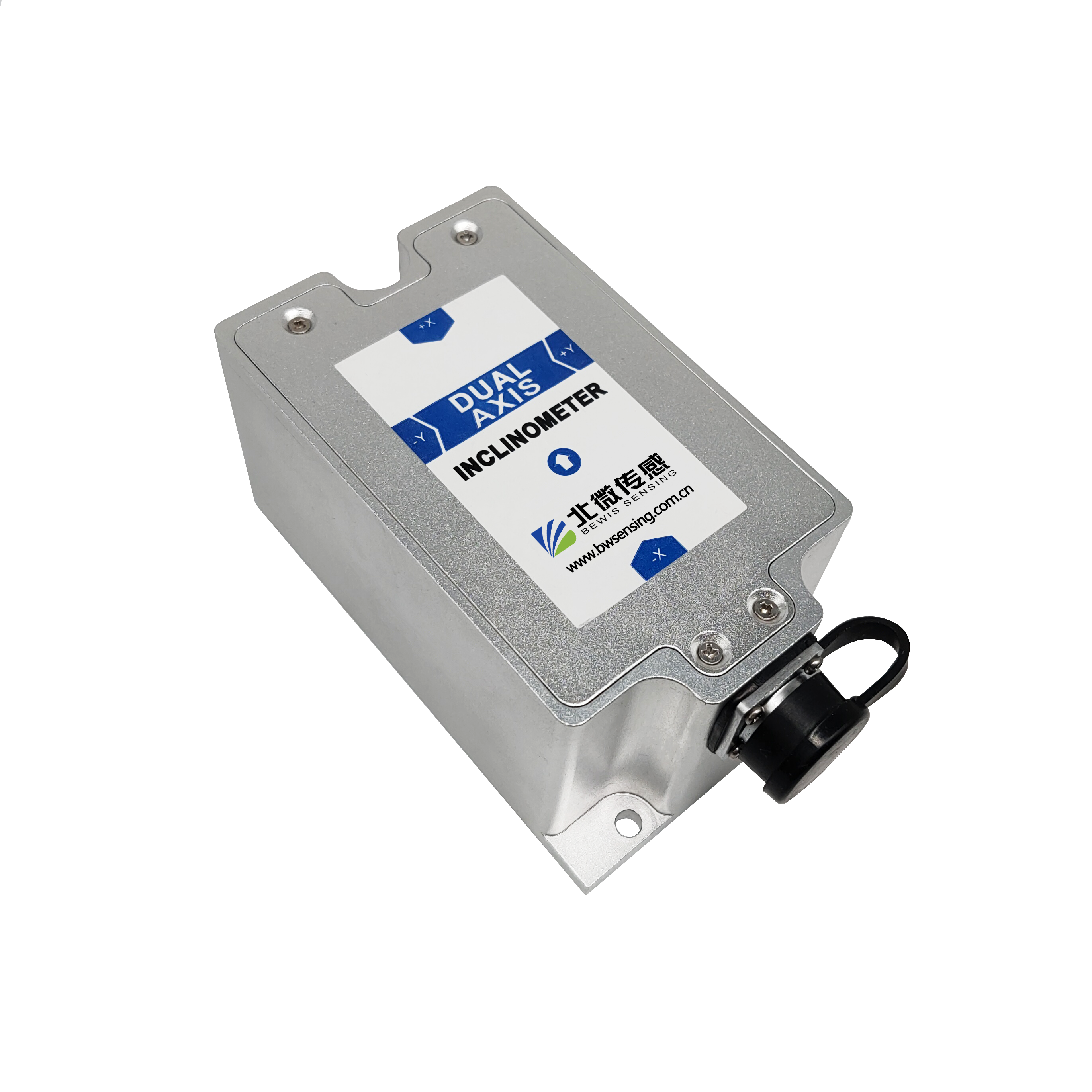

BWS5700E Foundation Settlement Sensor
Static accuracy 0.001°, ultra-low zero drift, ideal for plateau & offshore sites

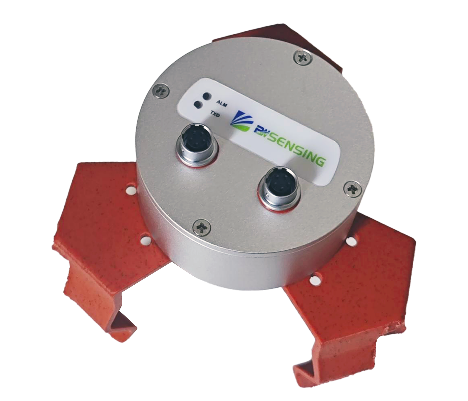

BW-LS48-ME Flange Bolt Detector
Loosening accuracy ±0.5°, compatible M36~M64, non-destructive installation
General Advantages of Full Series Sensors
Full Temp Compensation Patent -40℃ ~ 85℃ ultra-low drift
Military Grade Shock Resistance Withstand long-term turbine vibration
Class IV EMC Shielding Block converter electromagnetic interference
Multi-algorithm Filtering Separate vibration & real deformation signal
Long Service Life Max MTBF up to 100,000 hours
Multi Communication Options RS485 / Analog / LoRa wireless
Proven hardware solutions for loess, permafrost, plateau & offshore sites

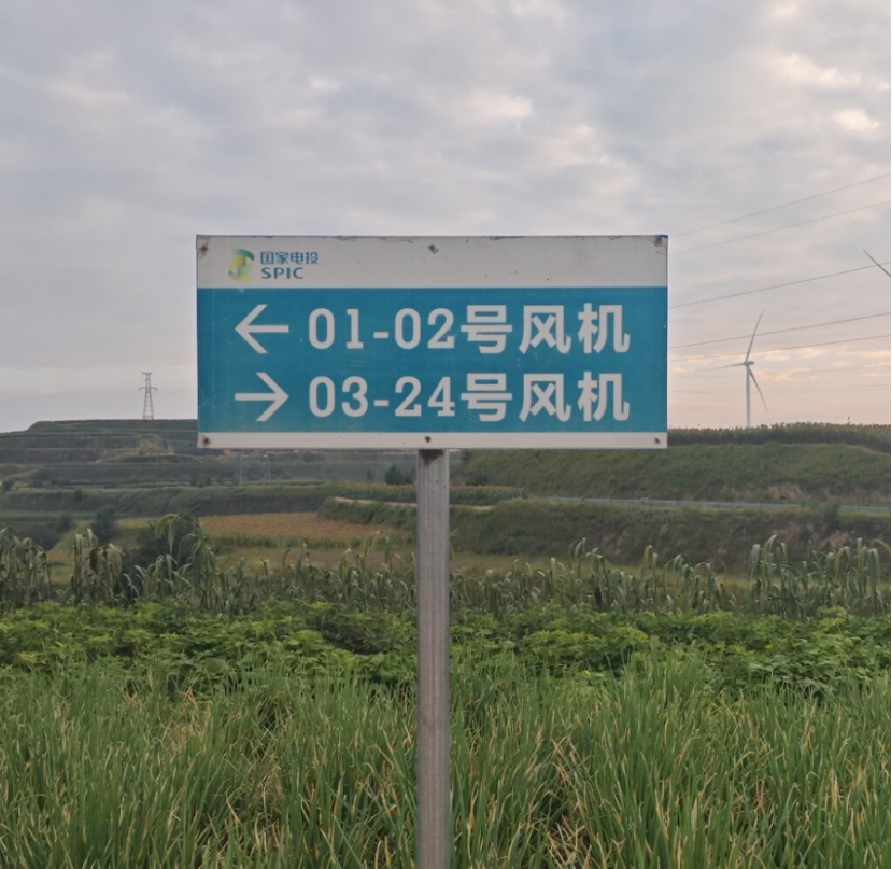

50MW Loess Gully Wind Farm, Yulin, Shaanxi
Site Challenge: Severe soil erosion, large temperature difference, high manual patrol cost.
Hardware Solution: BWS5700E Settlement Sensor + FDVG527E Dynamic Tilt Set.
Project Value: 80% reduction of mountain patrols, early detection of foundation settlement risks.
50MW Permafrost Wind Farm, Chaoyang, Liaoning
Site Challenge: 70℃ seasonal temp gap, freeze-thaw shift causes foundation offset, winter road closure.
Hardware Solution: 0.001° Ultra-precision Static Tilt Full Set.
Project Value: Cut annual O&M cost by 200,000 RMB, prevent tower overturn risks.
300-unit Highland Wind Base, Hainan Prefecture, Qinghai
Site Challenge: 3100m altitude unmanned zone, strong gusts, wind farm spans hundreds km.
Hardware Solution: Plateau Redundant Tilt Sensing System.
Project Value: Avoid 2MW tower collapse accident, 90% field patrol workload cut.

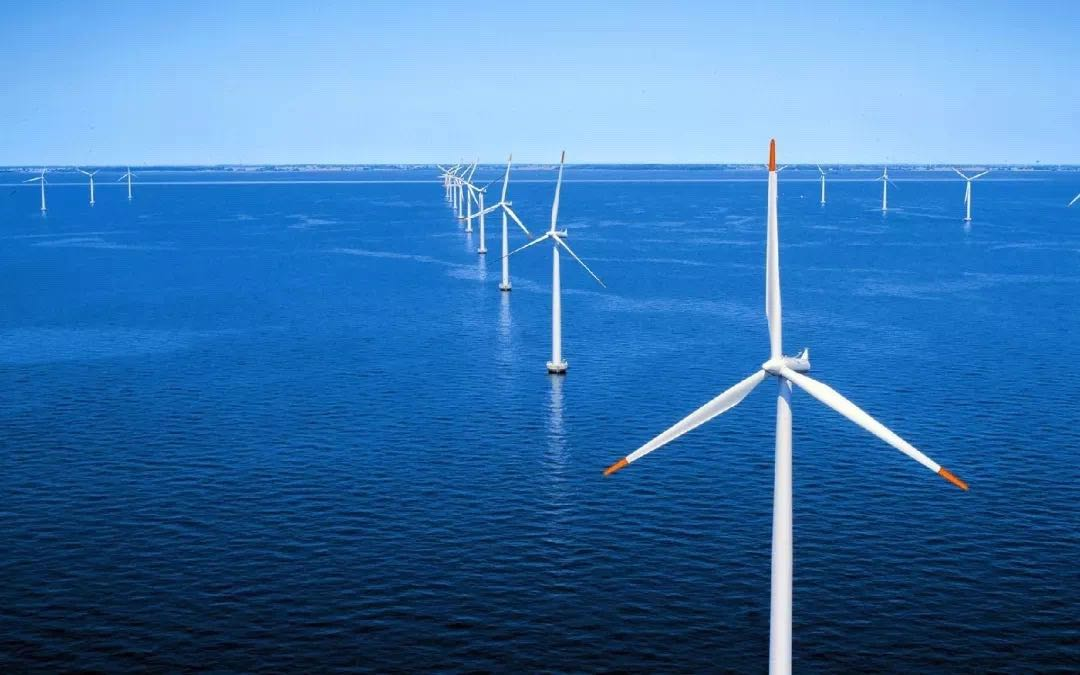

200MW Offshore Wind Project, Pinghai Bay, Fujian
Site Challenge: High salt fog corrosion, typhoon impact on large-diameter monopile foundation.
Hardware Solution: MEMS IMU + Tilt Integrated Offshore Monitoring Kit.
Project Value: Reduce offshore boarding inspection frequency, long-term foundation deformation data record.
-
