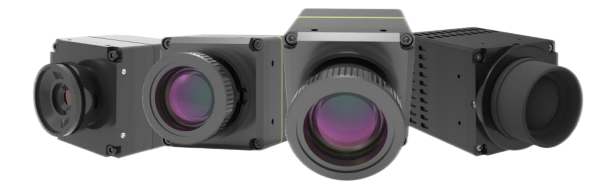

Product Model

BW-TM16P

Detector Type

Uncooled Vanadium Oxide Infrared Focal Plane Detectors

Resolution

640×512

Pixel Size

12μm

Response Band

8 ~14μm

Detector Noise Equivalent Temperature Difference

≦40mK@25℃

Images and videos

Contrast and brightness

Automatic manual

Palette

 white-hot, black-hot, iron-red, red-hot, rainbow and other

Image processing

 unevenness correction

 Intelligent gain control

 Detailed hybrid enhancement

 3D noise reduction

Video Type

 H264, Mainstream: 720 x 576 @ 25fps

Temperature Measurement Performance

Temperature measurement range

-20℃ ~ +150℃  , 0℃  ~ +550℃

Temperature measurement accuracy

±2°C or ±2% (from 20°C to 60°C)

Temperature measurement anal

 Point, Line and Area Analysis

Integration Protocol

Protocol type

SDK（ windows、 Linux） 、 http、onvif

Power supply

Typical Power Supply

DC 12v

Typical Power

Consumption@25 °C

1.6W

Connector

Video Output

Article 45

Serial Communication Interface

RS485

Alarm Inputs and Outputs

1 minute 1 outlet

Physical characteristics

Dimensions (without lens)

35mm*35mm*35.5mm

Weight (without lens)

156.5g

Operating temperature

-30℃ ~ +60℃（-20°C ~60°C ensures temperature measurement accuracy）

Storage temperature and humidity

-45℃  ~ +75℃  ,RH≤95%
