Static accuracy

0.01°

Resolution

0.01°

Tilt margin

Pitch±90º，Roll±180º

Physical properties

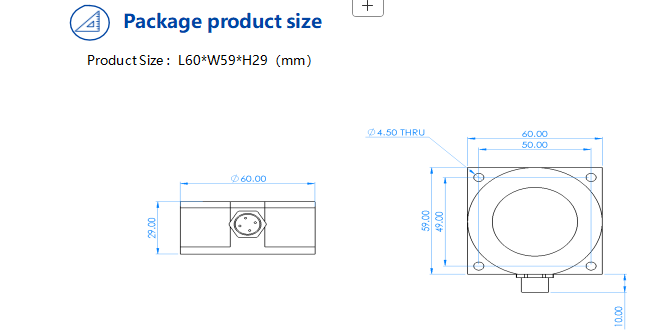

Dimension

L60×W59×H29（mm）

Weight (with wire）

280g

Weight (With packaging)

360g

Interface characteristics

Start delay

<50ms

Maximum sampling rate frequency

100Hz

Serial communication rate

2400 to115200 baud rate

Digital output format

Binary high-performance

Trouble-free work on average

≥90000 hours

EMC

According to GBT17626

Insulation Resistance

≥100MΩ

Surge suppression

2000g， 0.5ms， 3 Times/shaft
