●Dynamic compensation, quadrature compensation
●Sampling frequency up to 200Hz
●Baud rate 115200
●RS422 output
●Wide temperature range：-40 ℃~+85℃,Temperature compensation
●Small size：22.4×22.4×10mm
Shared：
Gyro | Range | ±500°/sec | |
Full Temperature Zero Bias | ≤ 150 °/h | ||
Zero Bias Stability (1σ) | ≤12 °/h | ||
Zero Bias Repeatability (1σ) | ≤12 °/h | ||
Accelerometer
| Range: X,Y,Z | ±10 g | |
Zero bias at full temperature | ≤5mg | ||
Zero Bias Stability (1σ) | ≤0.3mg | ||
Zero bias repeatability (1σ) | ≤0.3mg | ||
Supply Voltage | 5V | ||
Systems | Operating Temperature Range | -40~85℃ | |
Shock Resistance | ≥2000g | ||
Vibration | ≥20grms | ||
Dimensions | 22.4×22.4×10mm | ||
Weight | ≤30g |
Connector | Bare wire (wire length 30m) |
Protection level | IP65 |
Shell material | Magnesium aluminium alloy anodised |
Installation | Three M2.5 screws |

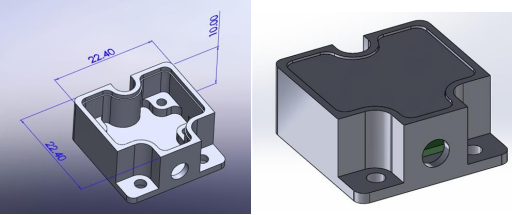

Product size：L22.4*W22.4*H10(mm)
Length and width may have ± 1mm error, please prevail in kind
-
