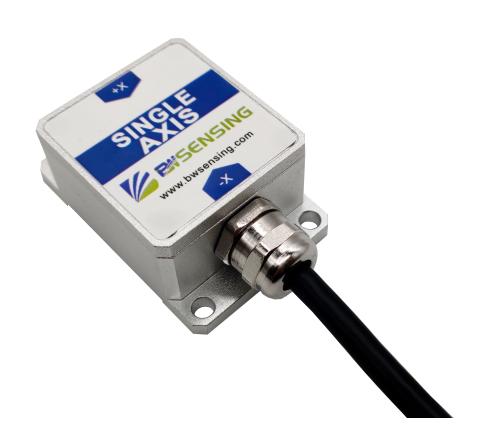

● Single axis inclination measurement
● Resolution：0.03°
● Power supply：9-35V

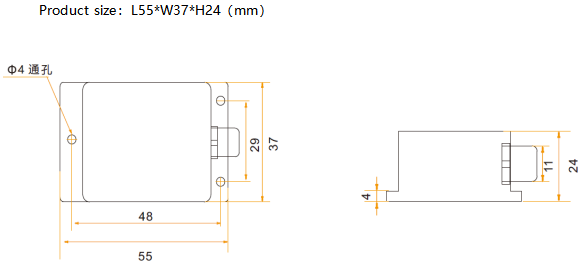

● Dimension：L55*W37*H24（mm）
● Highest accuracy：0.3°
● Range：±180°
● Output mode：RS232/RS485/TTL optional
● IP67 Protection
Shared：
Measurement range (°) | Condition | ±180 |
Measurement axis | Mutually perpendicular | X |
Accuracy(°) | Room Temperature | 0.3 |
Resolution(°) | Completely still | 0.03 |
Start-up time | ＜3s | |
Output frequency（Hz） | 5-100Hz adjustable | Up to 100 |
Mean time between failures MTBF | ≥90000 h | |
Electromagnetic compatibility | According to GBT17626 | |
Insulation resistance | ≥100 MΩ | |
Impact resistance | 2000g，0.5ms，3 times/axis | |
Weight (g) | 210（ Without outer packaging ） | |
-
