BWSENSING LoRaWAN Inclinometer LWHD-WM400 deployed for bridge tilt monitoring in Brazil.

Project Overview

Brazil has been continuously investing in transportation infrastructure, including bridges, elevated roads, tunnels, and urban mobility projects. During bridge construction, structural components may experience slight inclination or displacement due to loading, concrete curing, foundation settlement, vibration, or environmental factors. If these changes are not detected in time, they may affect construction safety, structural stability, and long-term service performance.

In an elevated bridge construction project in Brazil, Braspowertech, a leading local IoT integrator, selected the BWSENSING LoRaWAN Inclinometer LWHD-WM400 for real-time tilt monitoring. The sensor was deployed on key structural positions of the bridge to continuously capture subtle angular changes and transmit high-accuracy inclination data wirelessly to the monitoring platform.

With reliable wireless communication, stable data output, and high-precision tilt measurement, the LWHD-WM400 enabled the project team to detect even slight inclination trends at an early stage. This gave engineers more dependable data for structural assessment, construction adjustment, and overall safety management throughout the project.

Project Information

• Project Type: Elevated bridge construction monitoring

• Application: Real-time tilt monitoring

• Location: Brazil

• Partner: Braspowertech

• Product Used: BWSENSING LoRaWAN Inclinometer LWHD-WM400

• Transmission: LoRa wireless transmission

Customer Collaboration Background

Braspowertech is a well-known IoT integrator in Brazil, focusing on industrial IoT, smart monitoring, and infrastructure digitalization. BWSENSING has maintained a stable partnership with Braspowertech for more than two years. During this cooperation, BWSENSING products have been applied in multiple infrastructure monitoring projects and have received positive feedback for their accuracy, stability, and adaptability to complex field environments.

This bridge monitoring project further strengthened the cooperation between both parties. By combining Braspowertech’s local IoT integration capabilities with BWSENSING’s advanced wireless sensing technology, the project achieved efficient deployment and reliable data acquisition for structural safety monitoring.

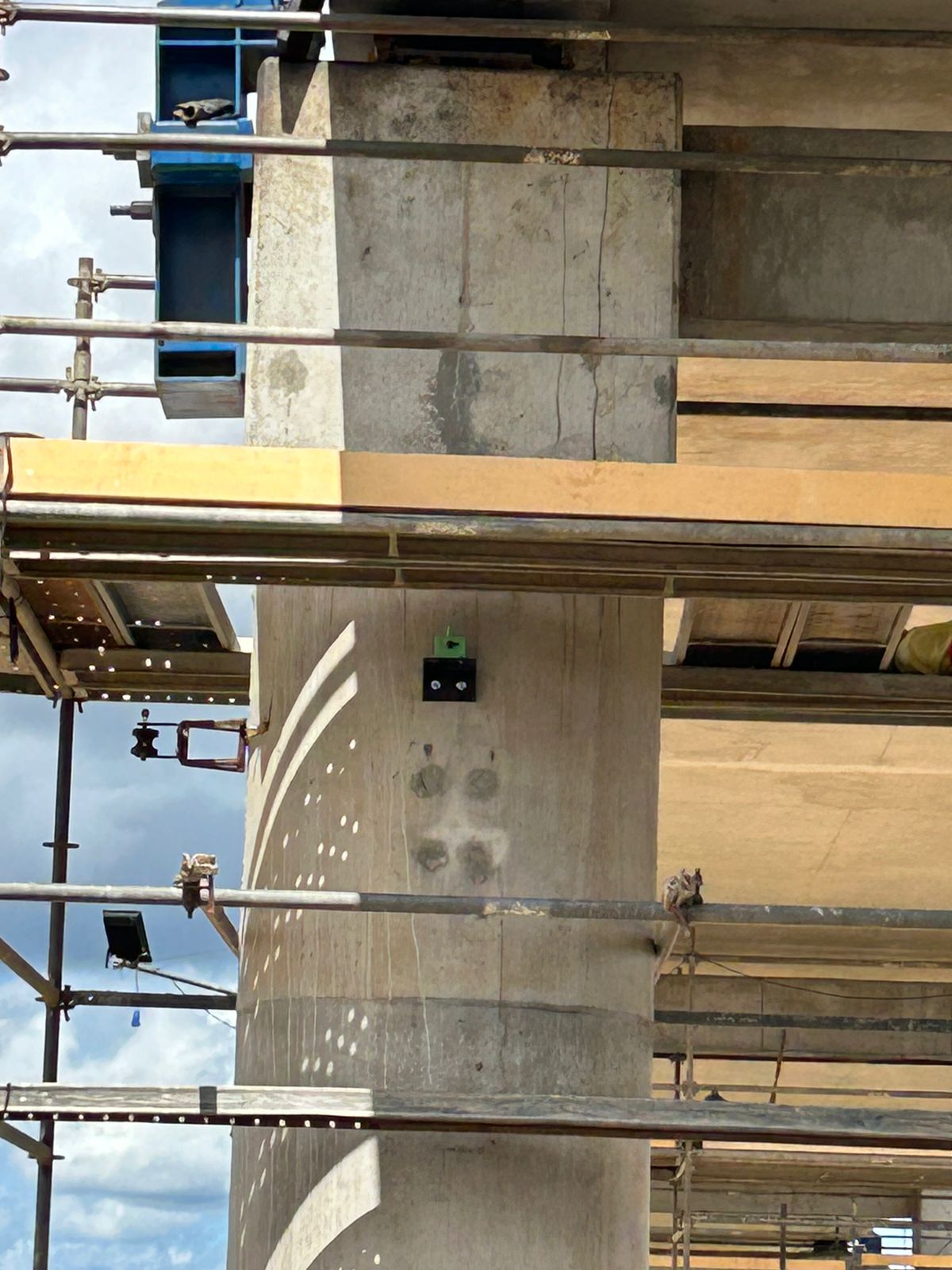

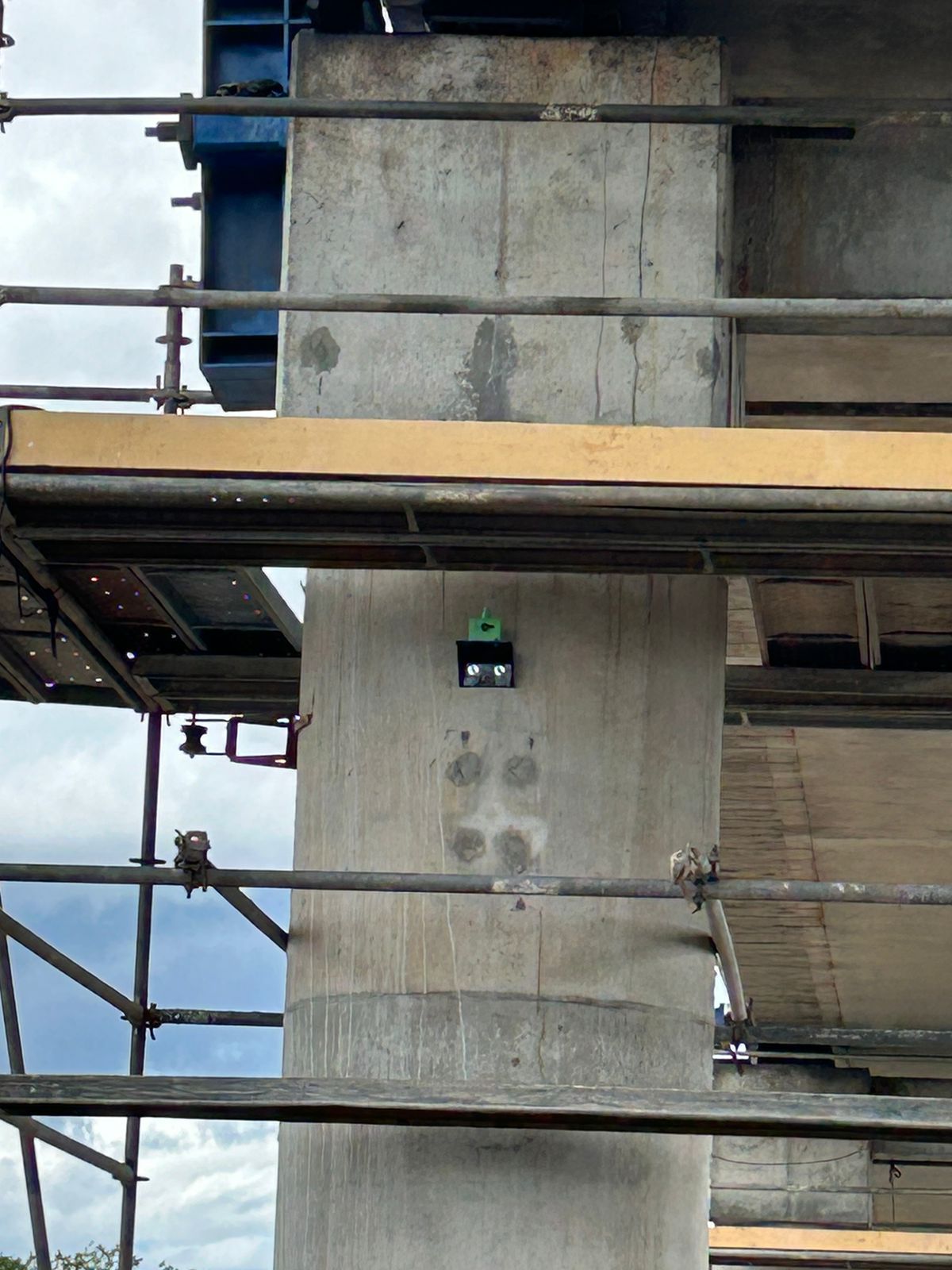

LWHD-WM400 installed on key bridge structural points.

Industry Challenges in Bridge Tilt Monitoring

Bridge construction monitoring requires continuous and accurate data collection under demanding field conditions. Traditional wired monitoring solutions may face limitations in installation efficiency, maintenance cost, and data transmission coverage, especially in large-scale construction sites.

1. Difficult Cable Deployment

Elevated bridge sites often have complex structures, wide monitoring areas, and frequent construction activities. Laying cables across the site can be time-consuming, costly, and vulnerable to damage during construction.

2. Need for High-Accuracy Tilt Data in Real Time

Bridge components may experience very small tilt changes caused by load variation, support adjustment, temperature fluctuation, or foundation movement. For engineering teams, the challenge is not only to monitor in real time, but also to obtain sufficiently accurate inclination data to distinguish meaningful structural change from normal environmental disturbance and support timely decision-making.

3. Harsh Outdoor Environment

Monitoring equipment must operate reliably under outdoor conditions such as rain, dust, vibration, humidity, and temperature changes. Stable sensor performance is essential for long-term project safety.

4. High Maintenance Cost

For bridge and infrastructure projects, frequent on-site maintenance can increase labor cost and affect construction efficiency. Low-power wireless devices can reduce maintenance frequency and improve monitoring continuity.

BWSENSING Solution

To address these challenges, BWSENSING provided the LoRaWAN Inclinometer LWHD-WM400, a wireless tilt monitoring sensor designed for structural health monitoring applications where measurement accuracy is critical. The device combines high-precision inclination sensing with LoRaWAN wireless communication, allowing customers to obtain reliable tilt data from dispersed monitoring points without complex wiring.

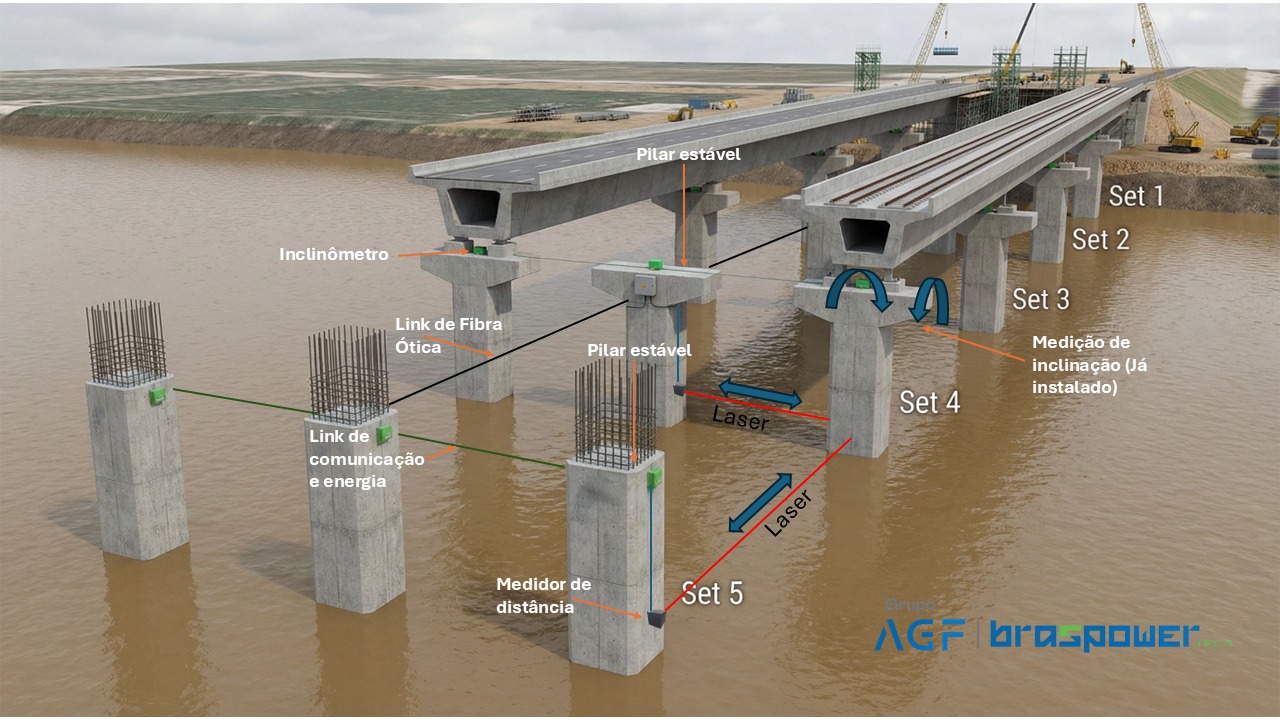

Installed at critical positions of the elevated bridge structure, the LWHD-WM400 continuously measured tilt changes and transmitted accurate, stable data to the client’s IoT monitoring platform. This enabled the project team to track subtle inclination trends over time, evaluate structural behavior with greater confidence, and respond more quickly to potential safety risks.

LoRaWAN wireless inclinometer for bridge structural monitoring

Wireless tilt monitoring helps reduce installation complexity and supports real-time structural safety management.

Why LWHD-WM400 LoRaWAN Inclinometer?

High-precision Tilt Measurement

The LWHD-WM400 is designed to capture subtle inclination changes in bridge and infrastructure structures. Its high measurement accuracy and stable long-term performance provide dependable data for deformation trend analysis, early-warning judgment, and structural safety evaluation in demanding field environments.

LoRa Wireless Transmission

With LoRaWAN communication, the sensor supports long-distance wireless data transmission and reduces dependence on on-site cabling. This is especially valuable for bridges, tunnels, slopes, and other large-scale infrastructure projects.

Low Power Consumption

The low-power design supports long-term field deployment and reduces the need for frequent battery replacement or maintenance, helping customers lower overall operation costs.

Reliable Outdoor Performance

Built for engineering applications, the sensor is suitable for complex outdoor environments and can maintain stable operation under construction site conditions.

Easy Installation and Flexible Deployment

The compact wireless design simplifies installation on bridge structures and allows customers to adjust monitoring points according to project requirements.

Platform Integration Capability

The sensor can be integrated into IoT monitoring platforms through LoRaWAN gateways, enabling data visualization, trend analysis, alarm settings, and remote monitoring.

How the Monitoring System Works

Step 1: Sensor Installation

LWHD-WM400 sensors are installed on selected bridge structural points where tilt changes need to be monitored.

Step 2: Data Collection

The sensors continuously measure inclination data and record structural tilt changes during construction.

Step 3: Wireless Transmission

Monitoring data is transmitted wirelessly via LoRaWAN to the gateway and then uploaded to the cloud or local monitoring platform.

Step 4: Data Analysis and Alarm

Engineers can monitor real-time tilt trends, set alarm thresholds, and make timely decisions based on accurate structural data.

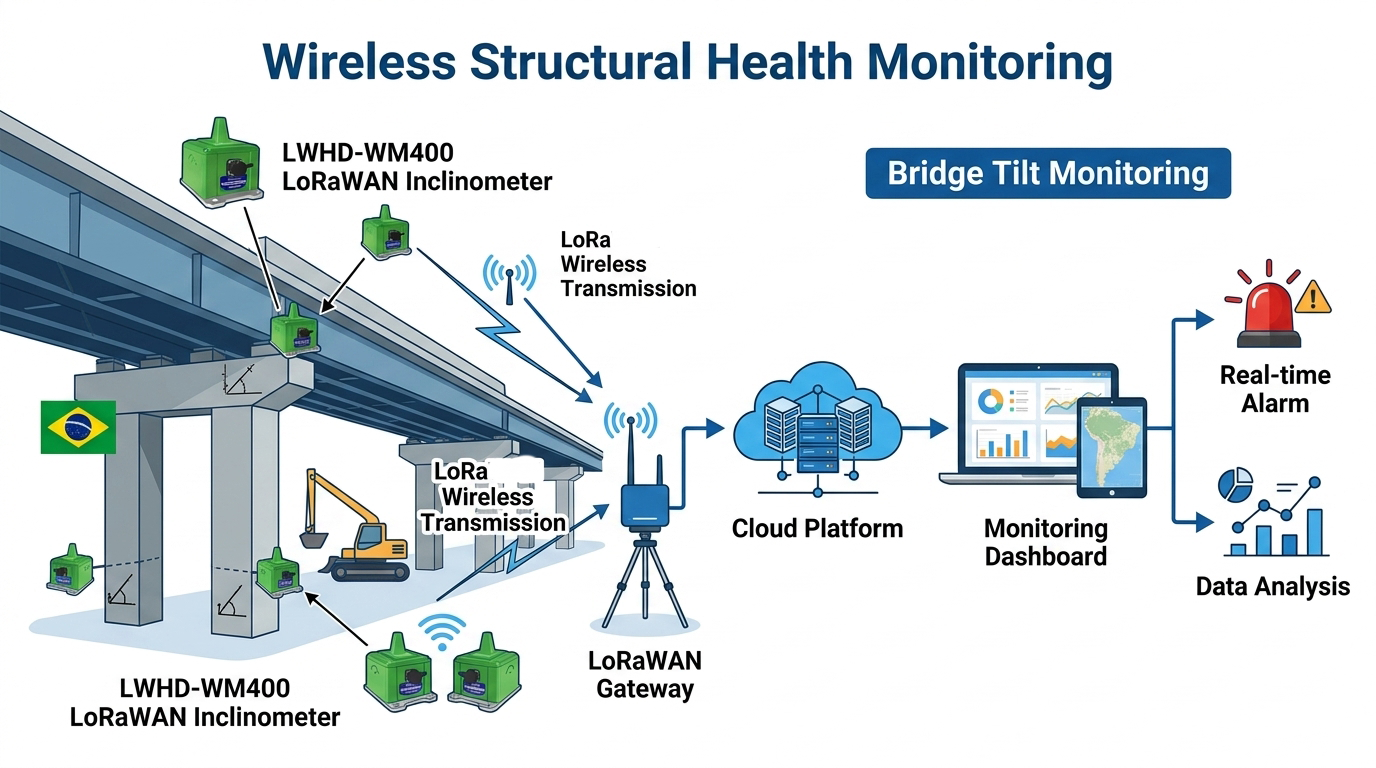

Suggested diagram: LWHD-WM400 sensors → LoRaWAN gateway → cloud platform → monitoring dashboard.

Project Results

Through the deployment of the BWSENSING LWHD-WM400, the customer successfully achieved real-time wireless tilt monitoring with accurate and stable inclination data for the elevated bridge construction project. The solution helped the project team improve the reliability of structural assessment and strengthened the efficiency of on-site safety supervision.

• Enabled real-time monitoring of bridge inclination changes during construction.

• Reduced wiring complexity and improved deployment efficiency through LoRaWAN wireless communication.

• Provided stable and accurate data support for structural safety assessment.

• Helped the customer optimize monitoring strategy and reduce on-site maintenance workload.

• Supported safer and more efficient infrastructure construction management.

“The stable performance and precise data output of BWSENSING’s LoRaWAN inclinometer helped us build a reliable monitoring solution for infrastructure projects.”

Featured Product: LoRaWAN Inclinometer LWHD-WM400

The LWHD-WM400 is a wireless inclinometer designed for tilt measurement and structural monitoring applications. It combines high-precision sensing technology with LoRaWAN communication, making it suitable for bridges, tunnels, slopes, buildings, towers, and other infrastructure monitoring scenarios.

Key Features

• High-precision inclination measurement

• LoRaWAN wireless communication

• Low-power design for long-term deployment

• Suitable for outdoor structural monitoring applications

• Easy installation and flexible monitoring point deployment

• Compatible with IoT monitoring platforms and remote data management
