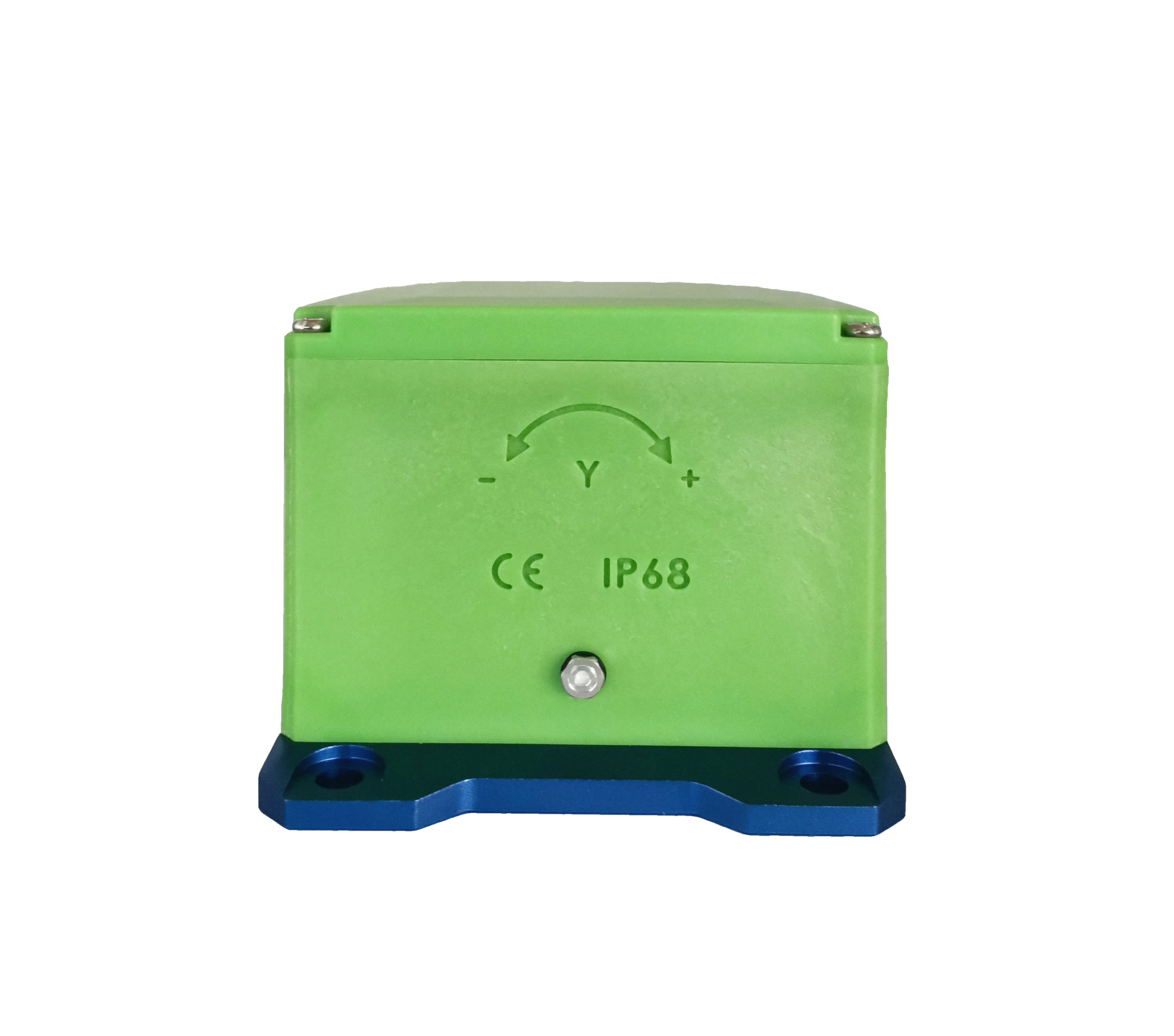

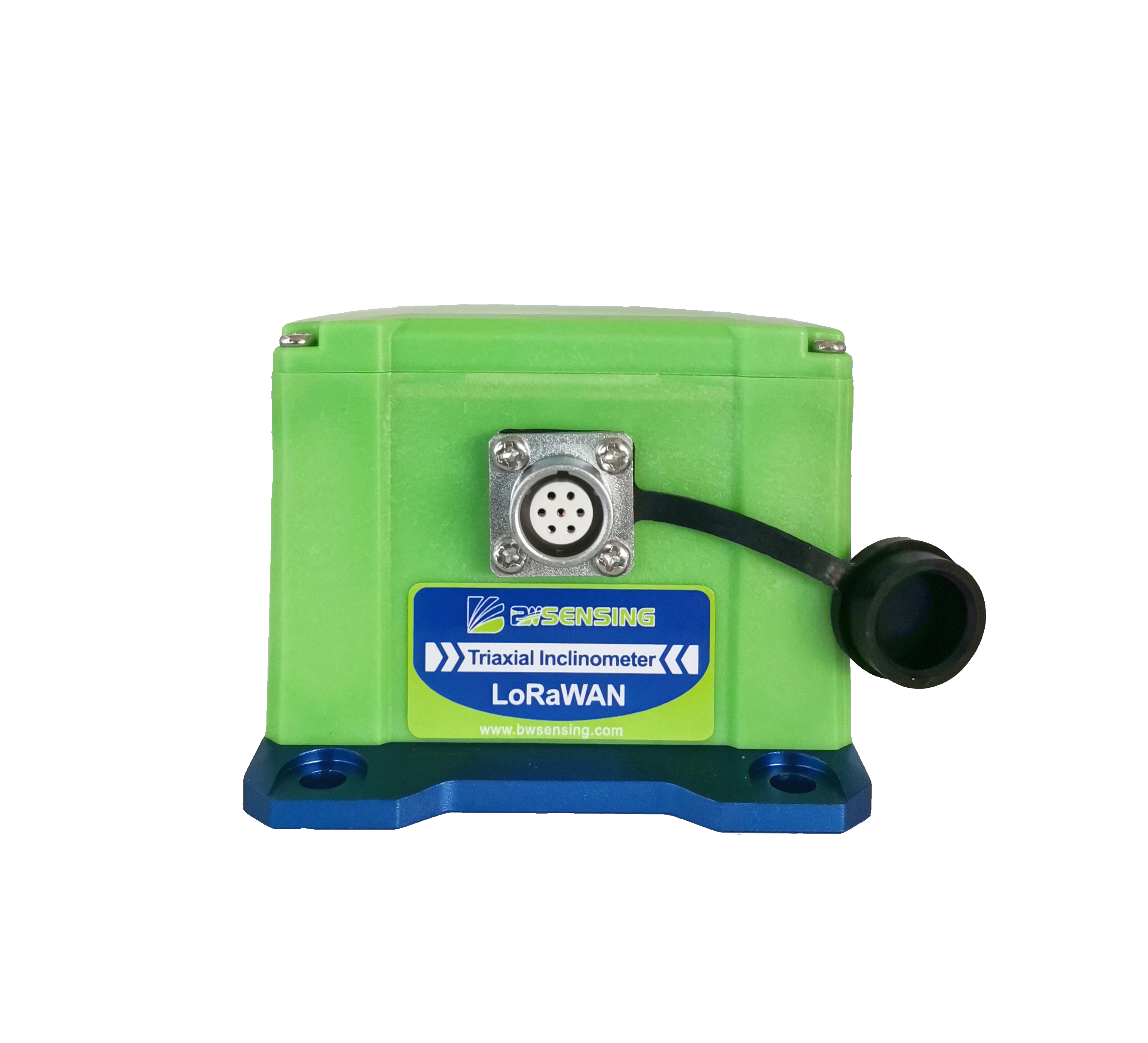

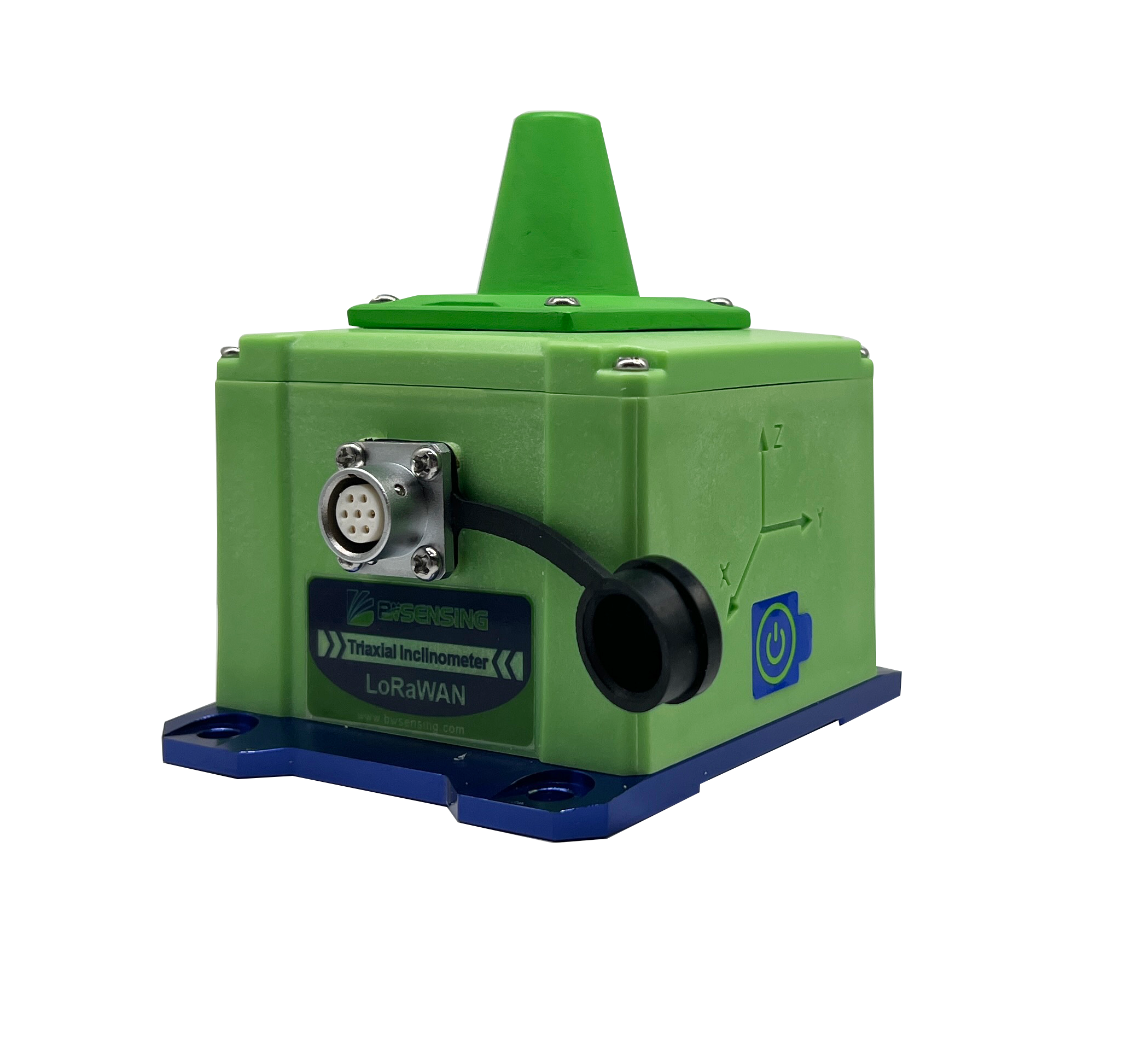

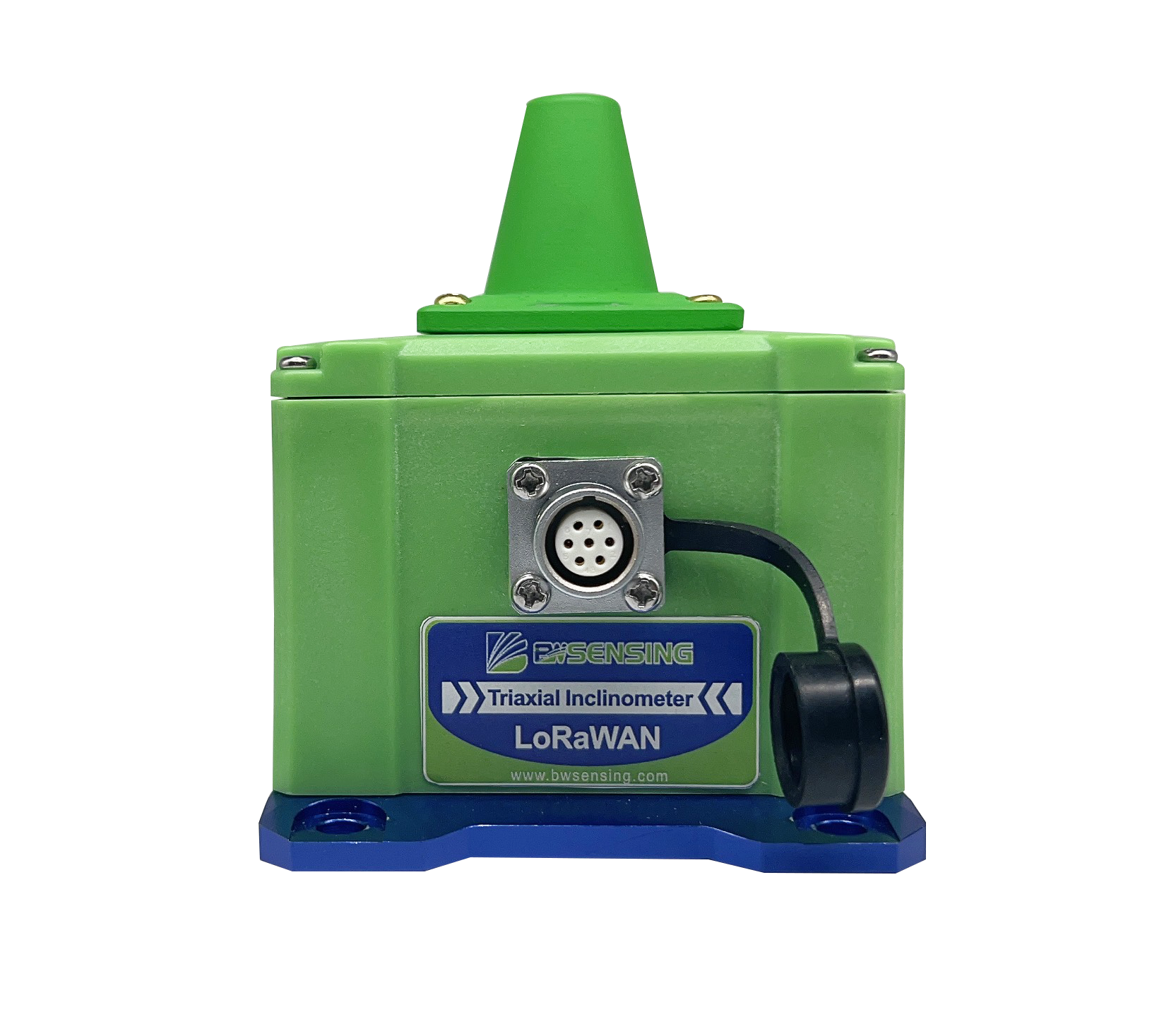

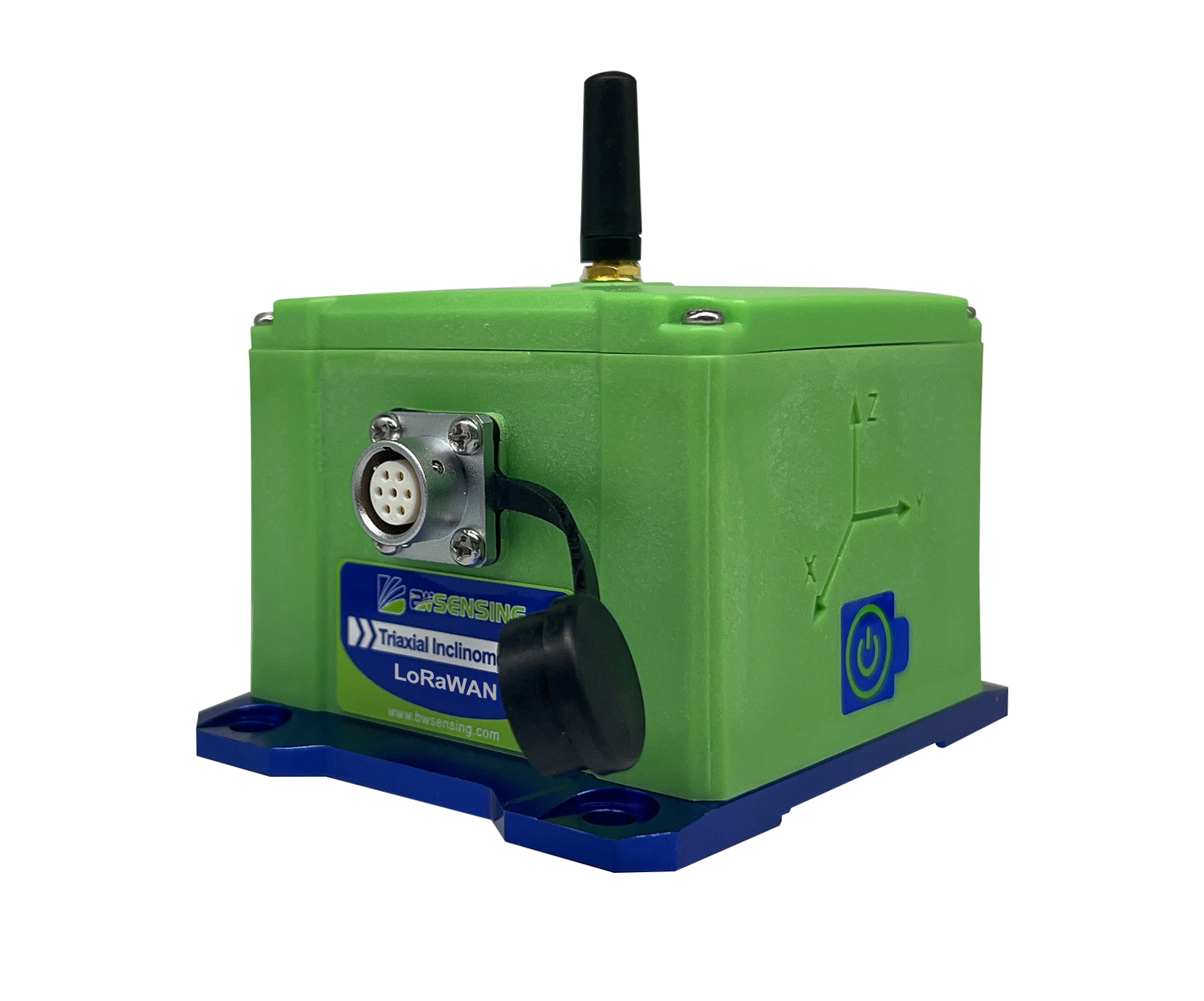

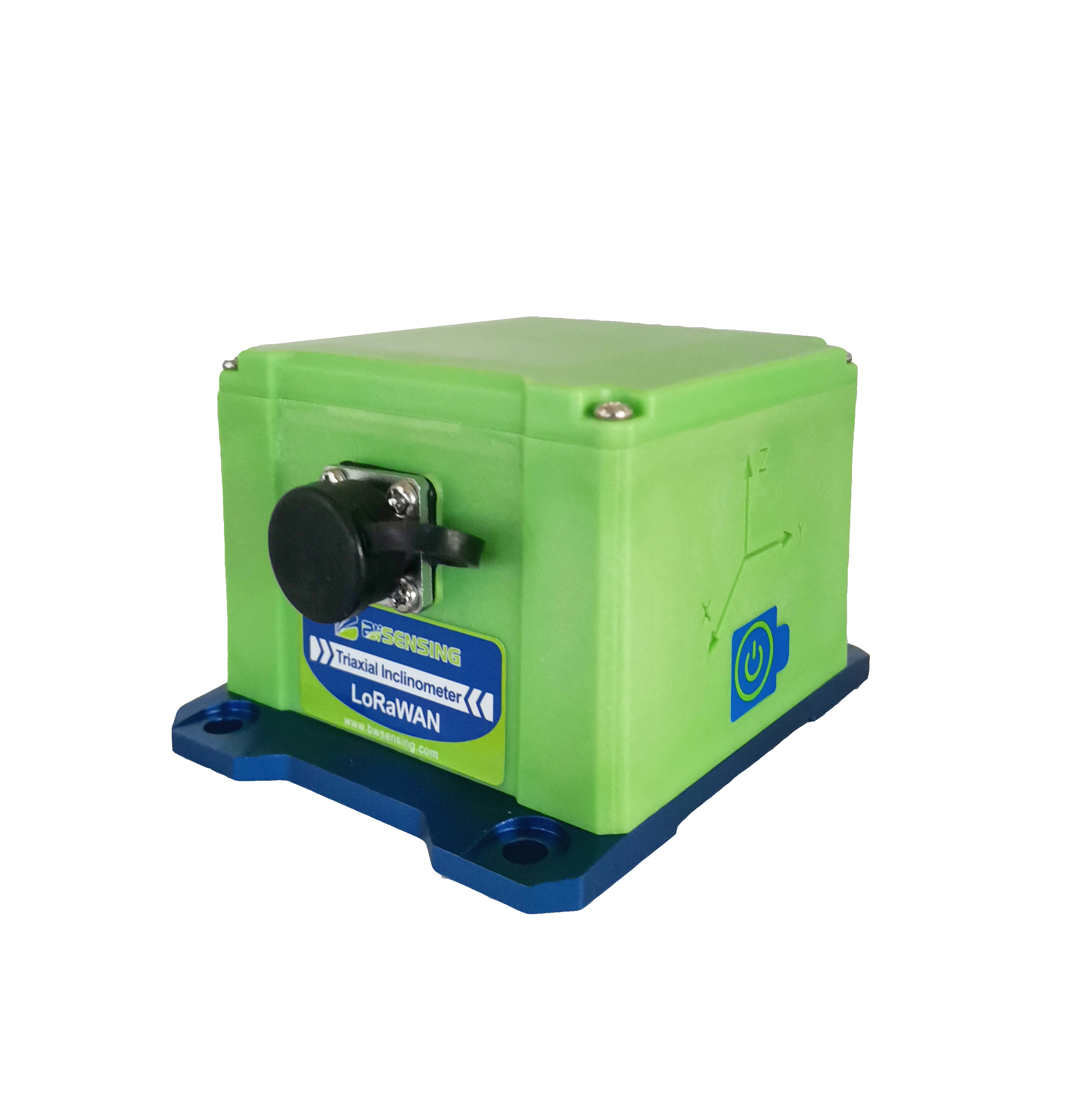

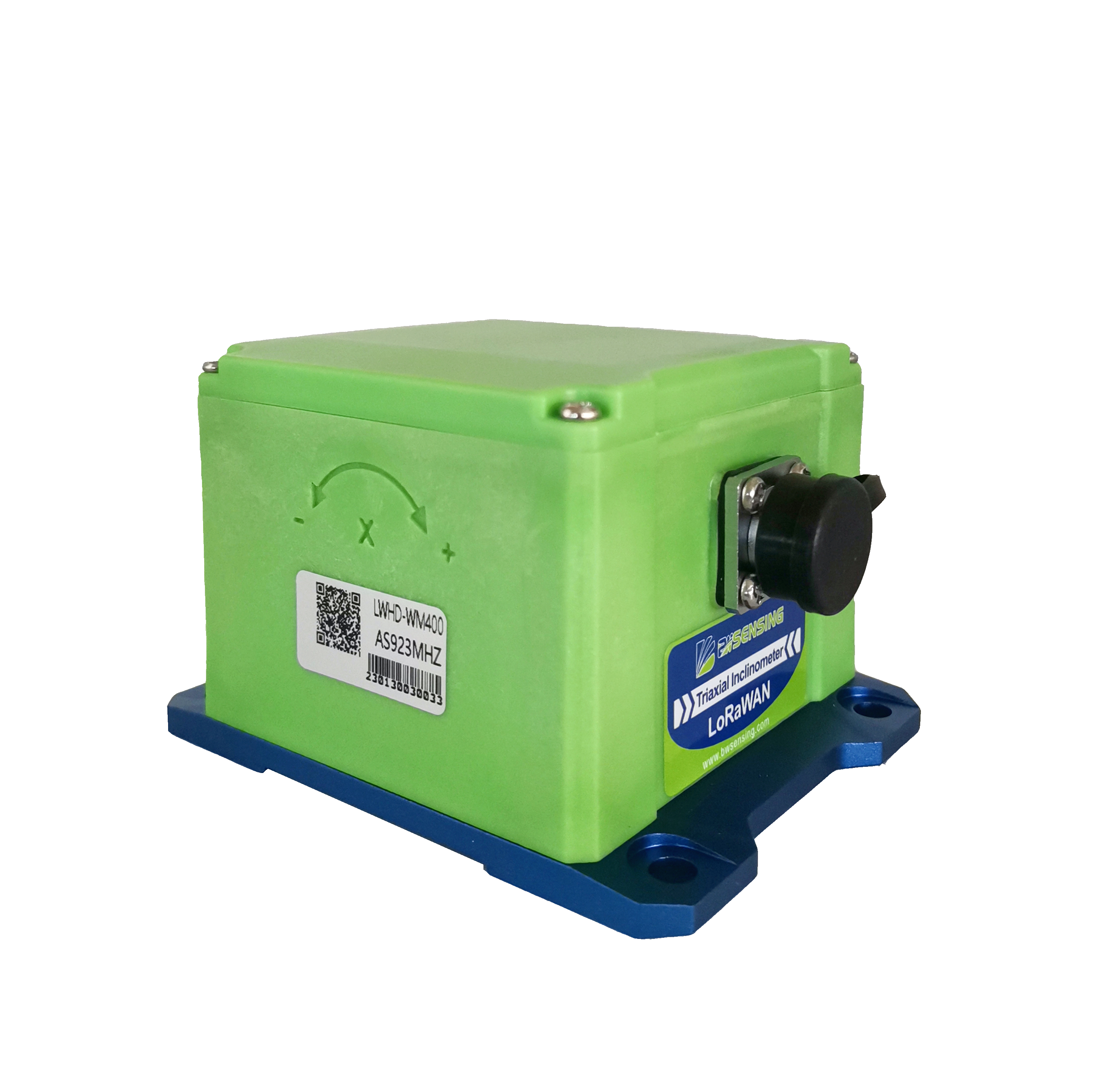

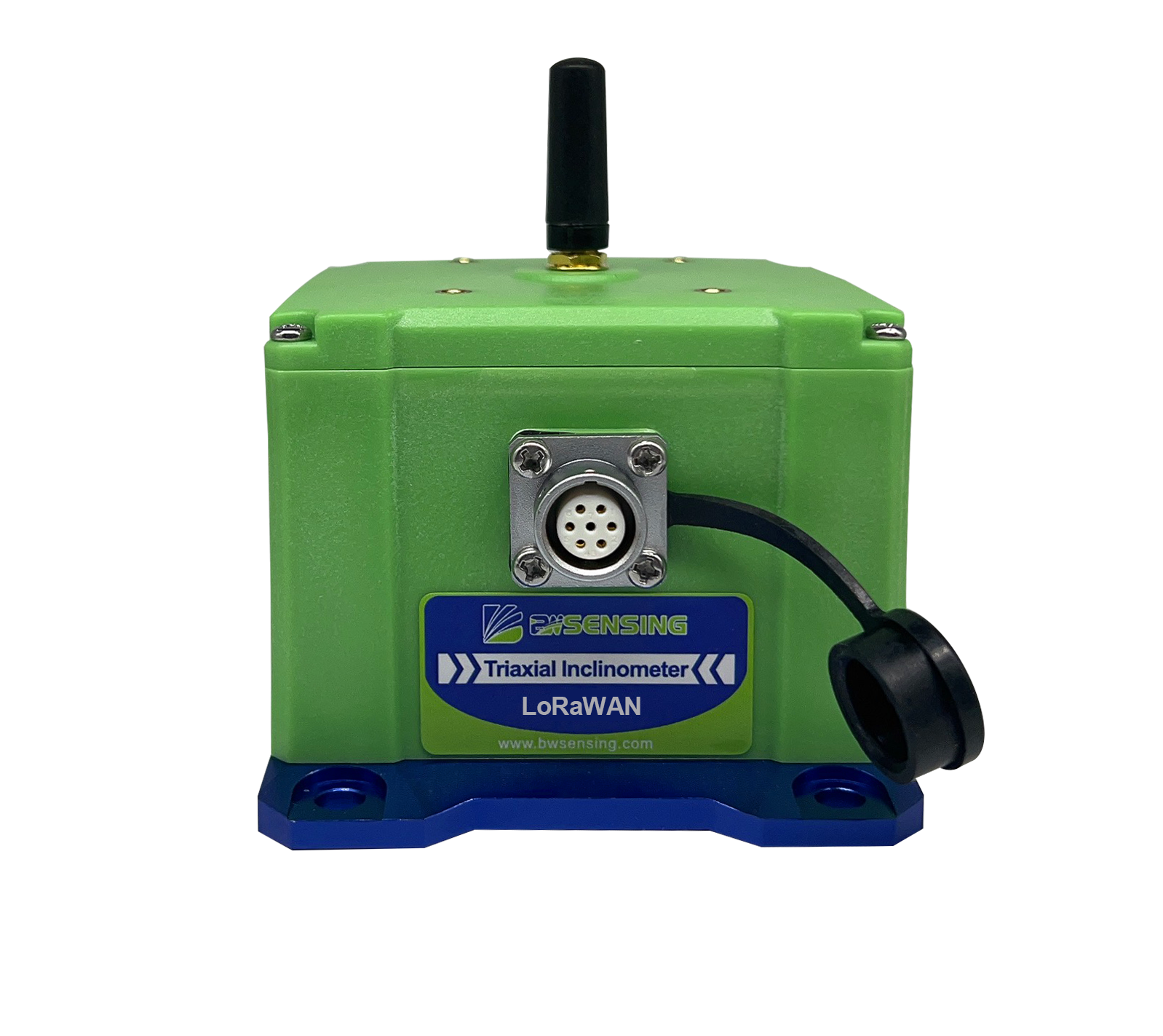

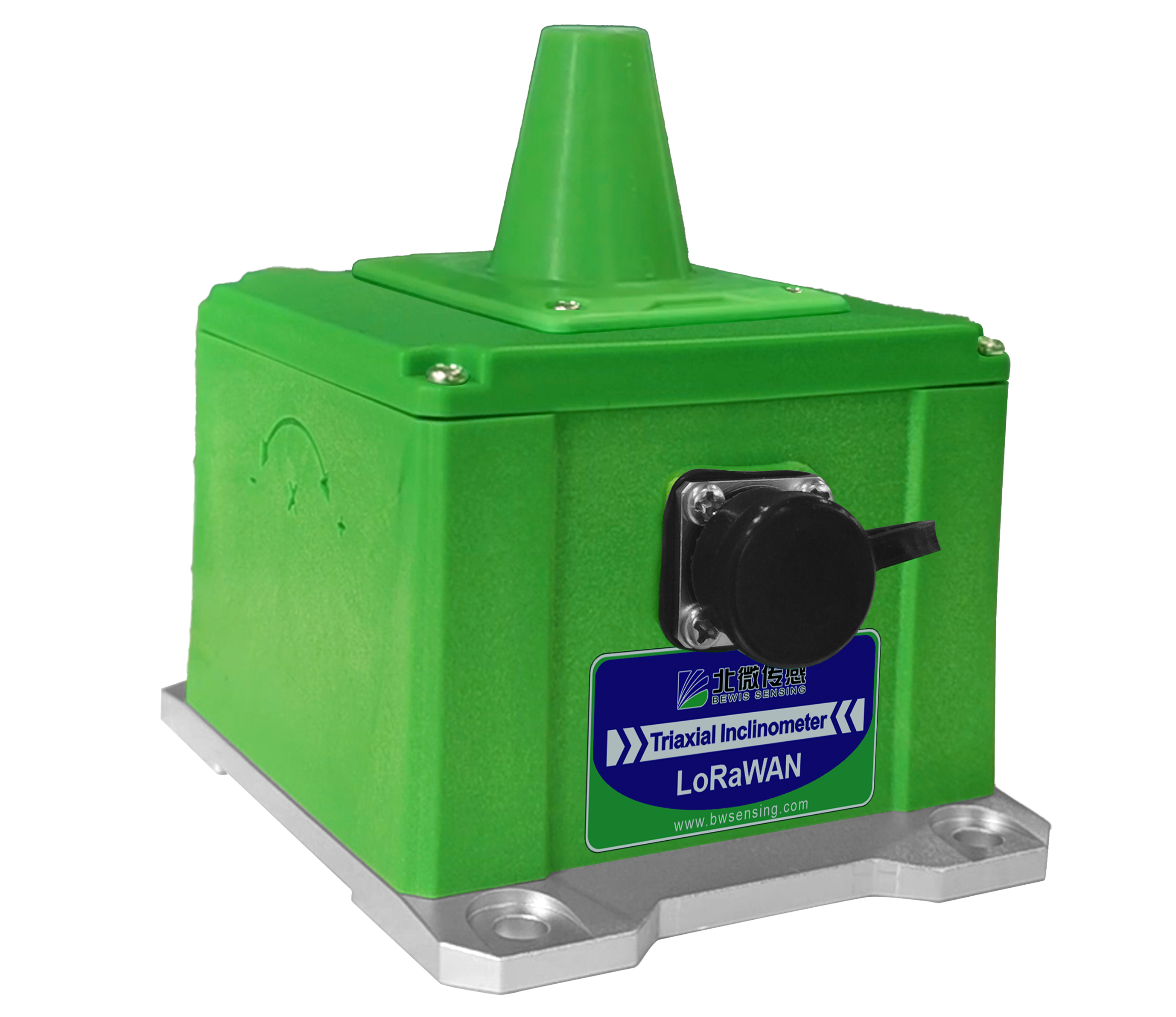

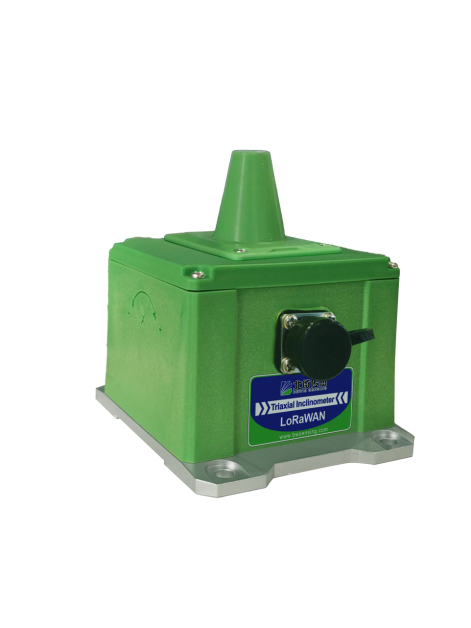

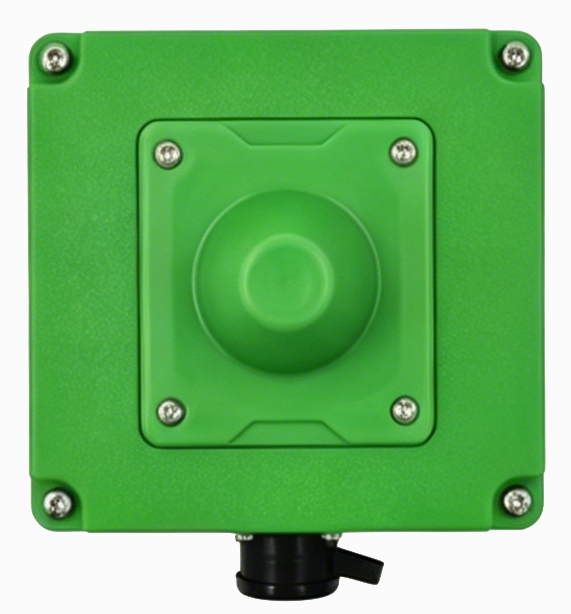

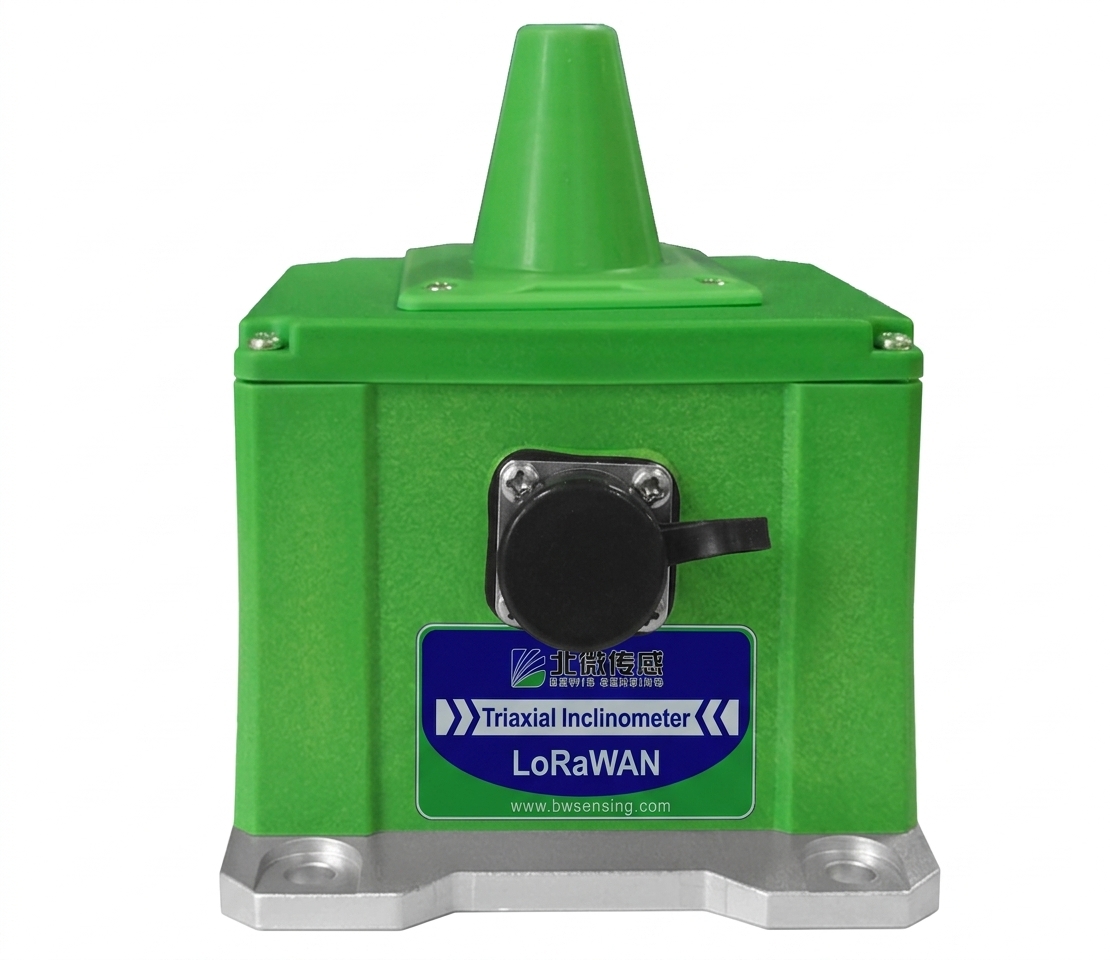

BWSENSING LoRaWAN Wireless High Accuracy Triaxial Inclinometer / Tiltmeter
BWSENSING LoRaWAN Wireless High Accuracy Triaxial Inclinometer / Tiltmeter
LWHD-WM400 BWSENSING LoRaWAN Wireless High Accuracy Triaxial Inclinometer / Tiltmeter Product Introduction:

Support multiple frequency band switching, EU868MHz/ US915MHz/ AS923MHz,etc,customizable
Support IP68 protection level, support OTA and use Android mobile phones to connect sensors through OTG cables and perform parameter configuration and data read

Shared:

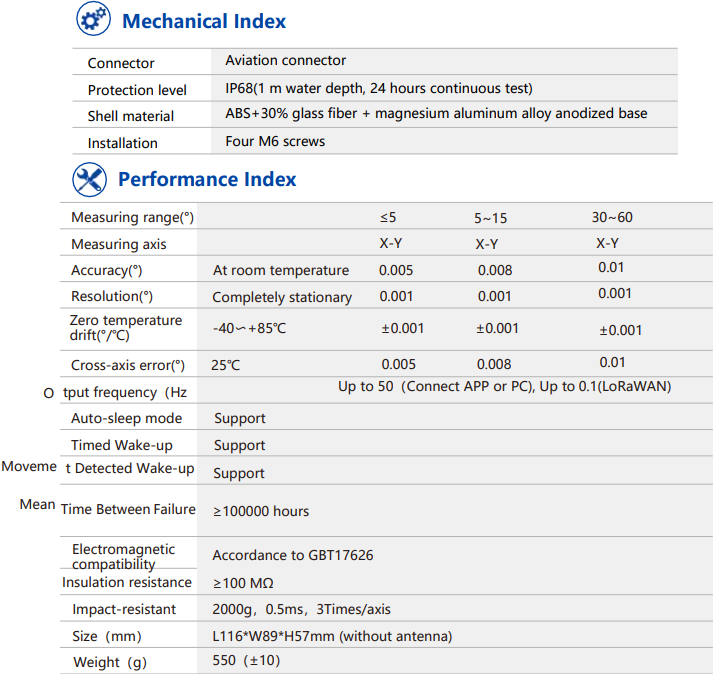

Technical Specifications

Accuracy: 0.005° Resolution:0.001° , Triaxial,Measuring range ±60°


Lightweight structural design supports EU868MHz / US915MHz / AS923MHz three-in-one frequency bands, and we will continue to upgrade to support more frequency bands in the future.

Using ER34615 battery, the battery life is 10 years when data is uploaded every hour, and the maximum frequency of wireless data upload is 0.1Hz.

Support IP68 protection level, support OTA and use Android mobile phones to connect sensors through OTG cables and perform parameter configuration and data reading.

The built-in ROM can save up to 60,000 sets of three-axis angle, three-axis acceleration, temperature and battery information.

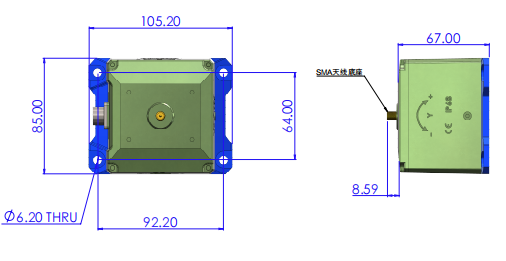

The newly designed base can support the use of 4 NdFeB strong magnetic screws, so that our sensor can be adsorbed and work on the surface of any iron product for a long time, eliminating the troublesome installation steps.


Product Advantages
1522039676218109.png Accuracy1522110325448404.png Resolution
0.005°0.001°


1522039614484057.png Measuring range1522039632548392.png Zero temperature drift
±60°±0.001°/℃


1522039650496055.png MTBFIP-等级.jpg Protection class
≥100,000 hoursIP68
